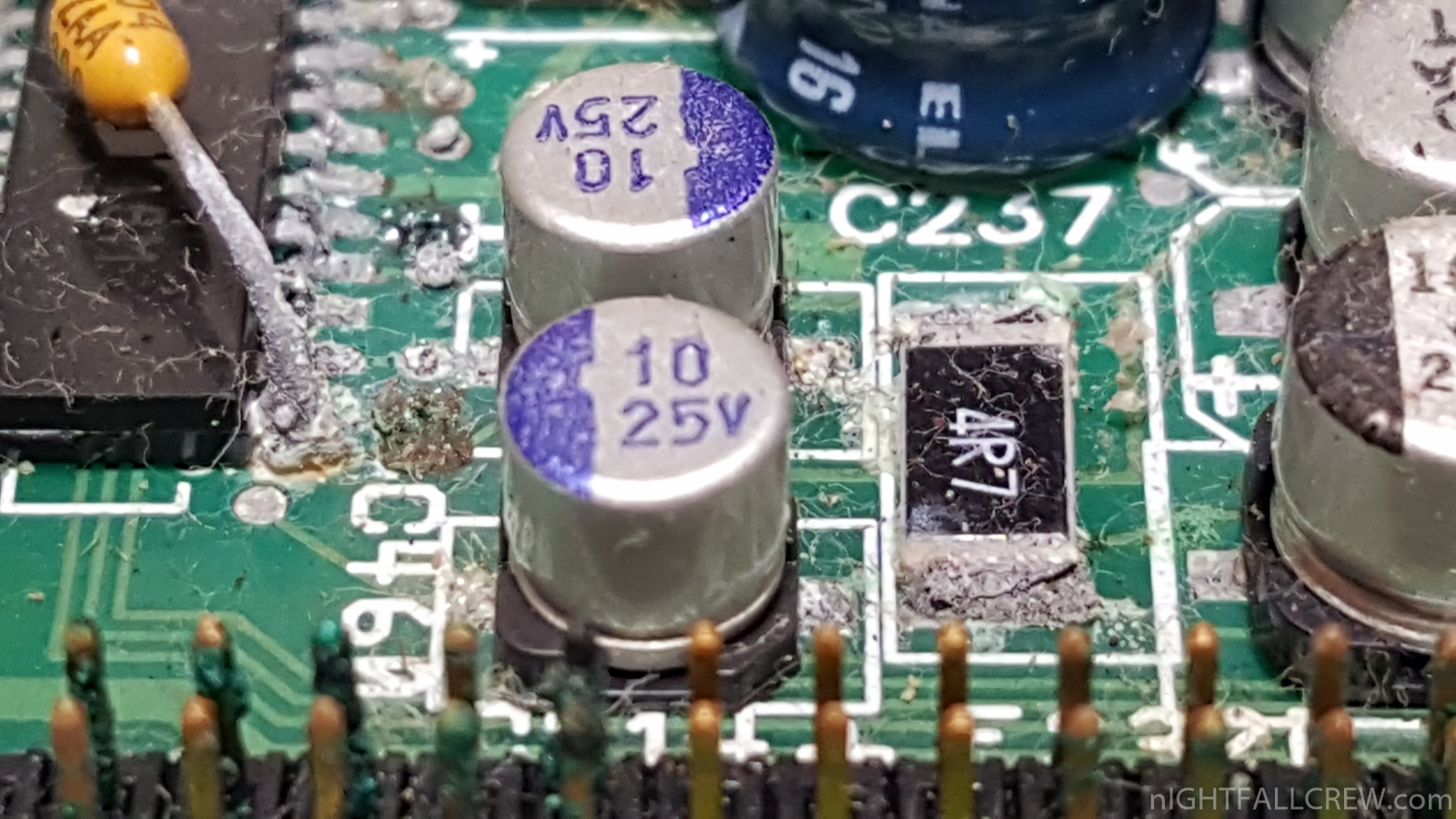

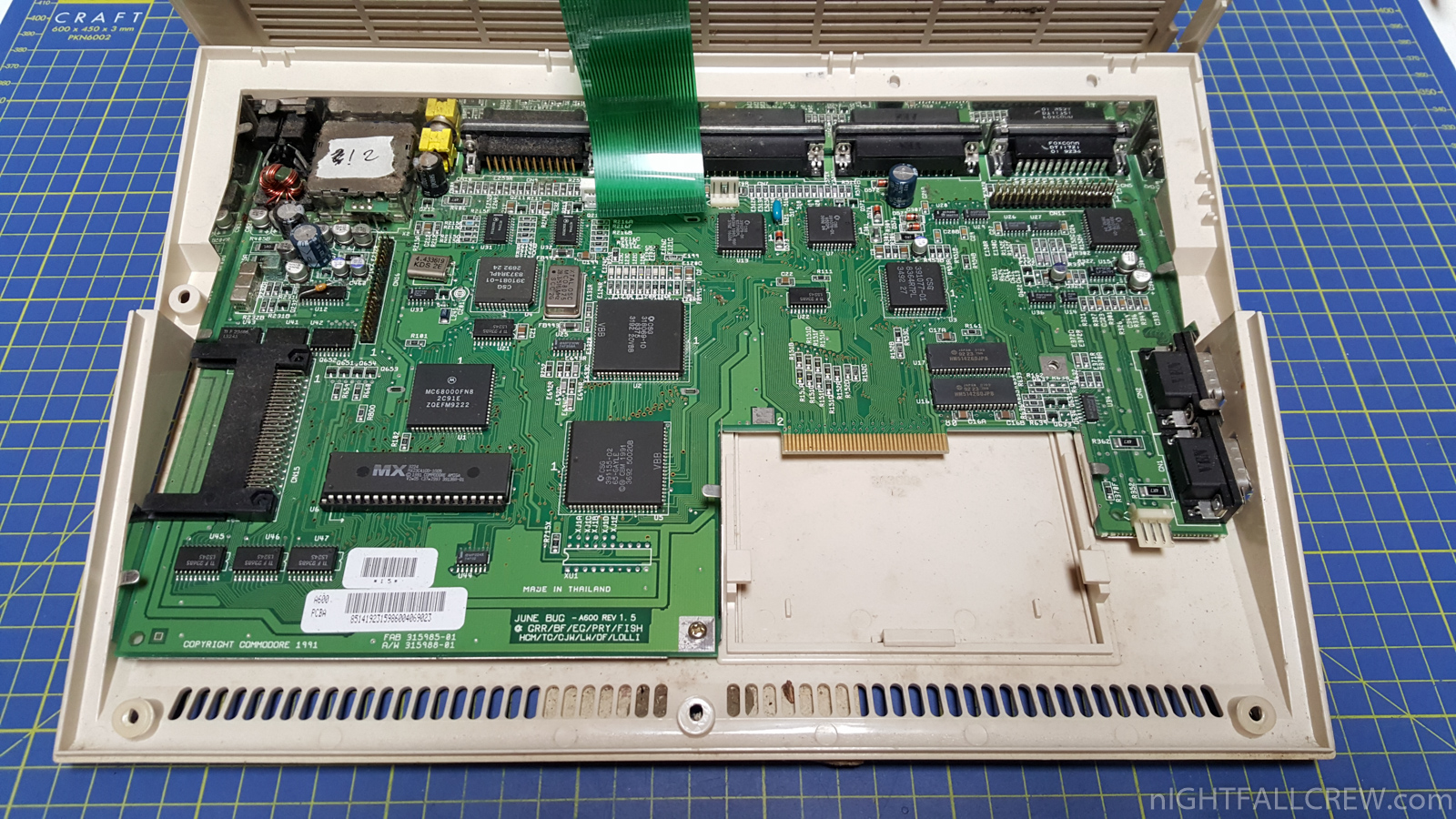

The motherboard conditions are not good, very badly. All capacitors have released acid, some are gone and the same for other components like the transistor Q233 2N3904 SMD amplifying for the video signal BLUE RGB. The Decoder U12 CXA1145 Sony has the pins eaten by the acid of the capacitors.

Poor Amiga …

Work to do:

• Solder resistance from E232R that is disconnected because the acid of the capacitors has leaked and corroded..
• Solder the transistor Q233 that is disconnected because the acid of the capacitors has leaked and corroded.
• Rebuilding a dozen pf pcb track between the IC U12 and the rest of the PCB and rebuilding also the through holes of the PCB.
• Replacing electrolytic capacitors, probably due to the state of the pitches i don’t use SMD capacitors.
• Replacing the male Harddisk connector some legs are broken at the base because the acid of the capacitors has leaked and corroded.

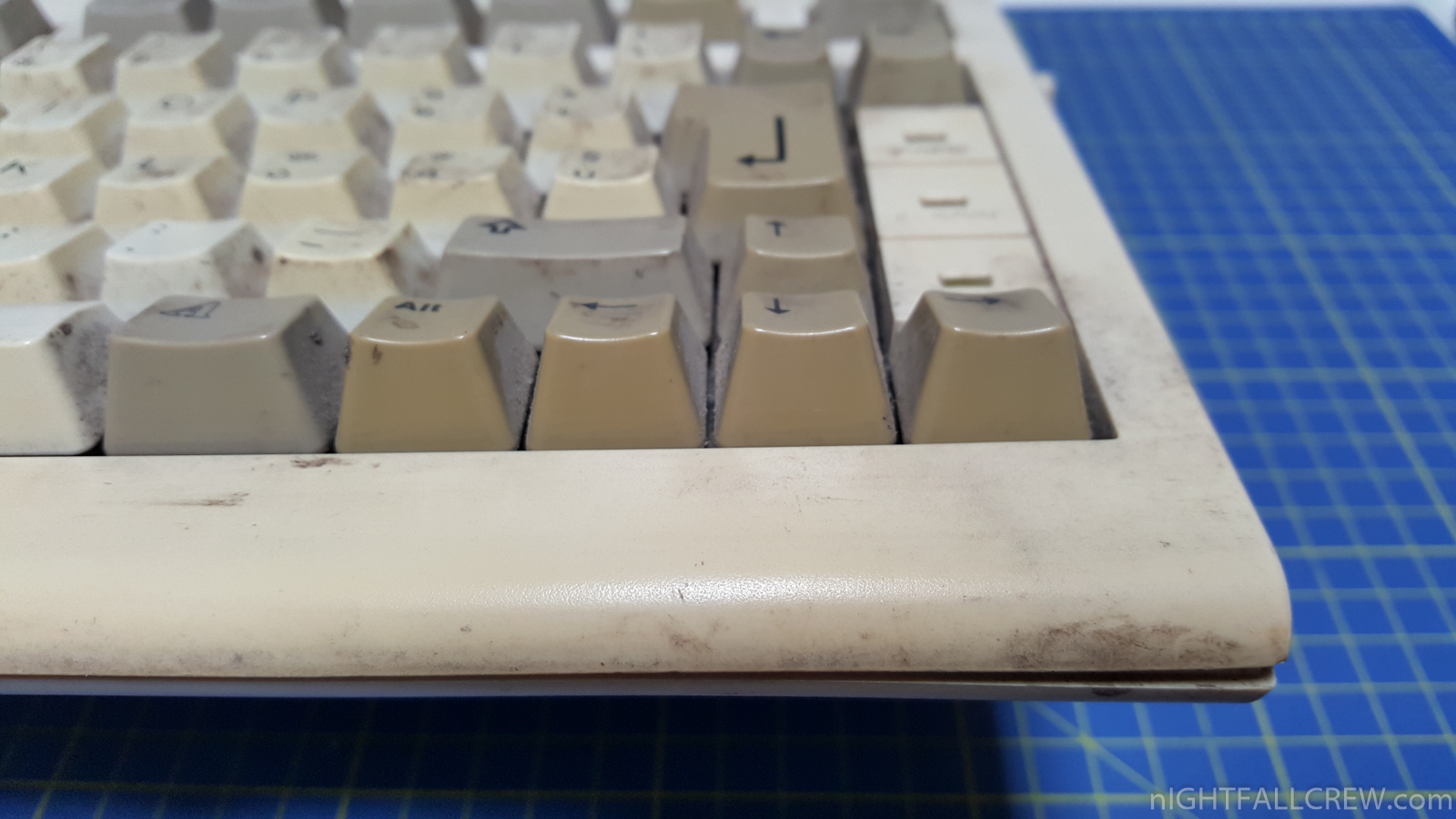

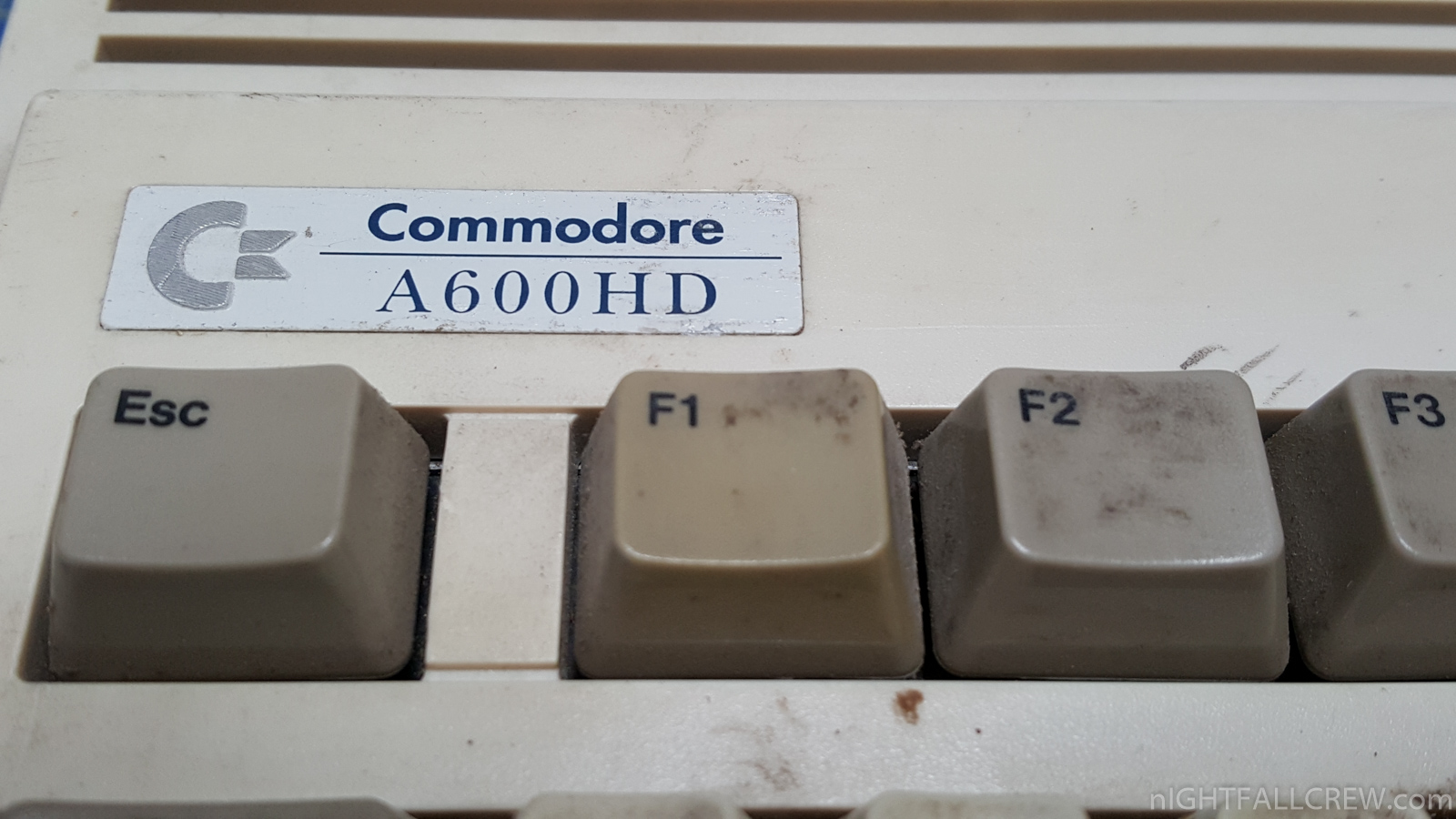

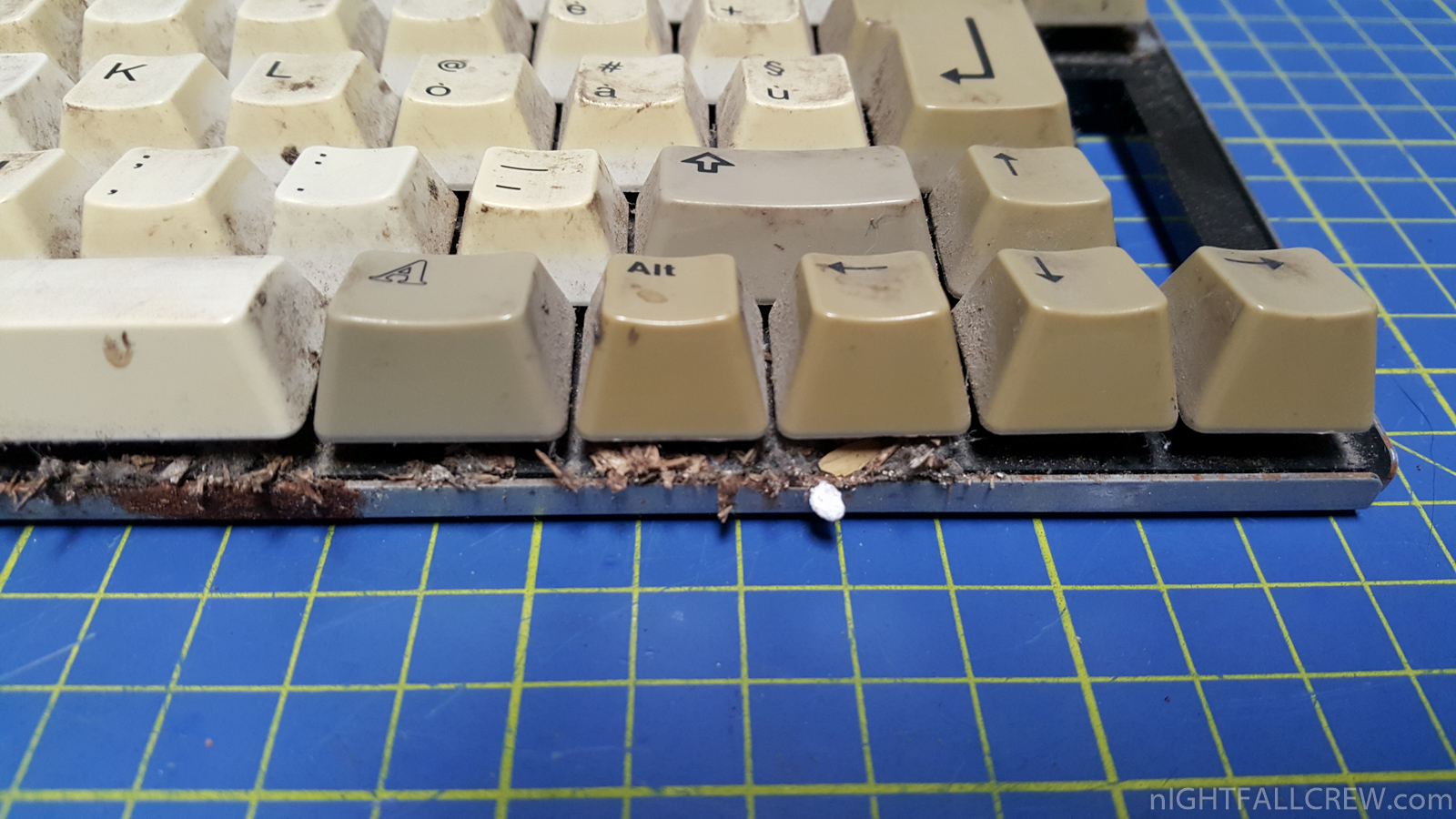

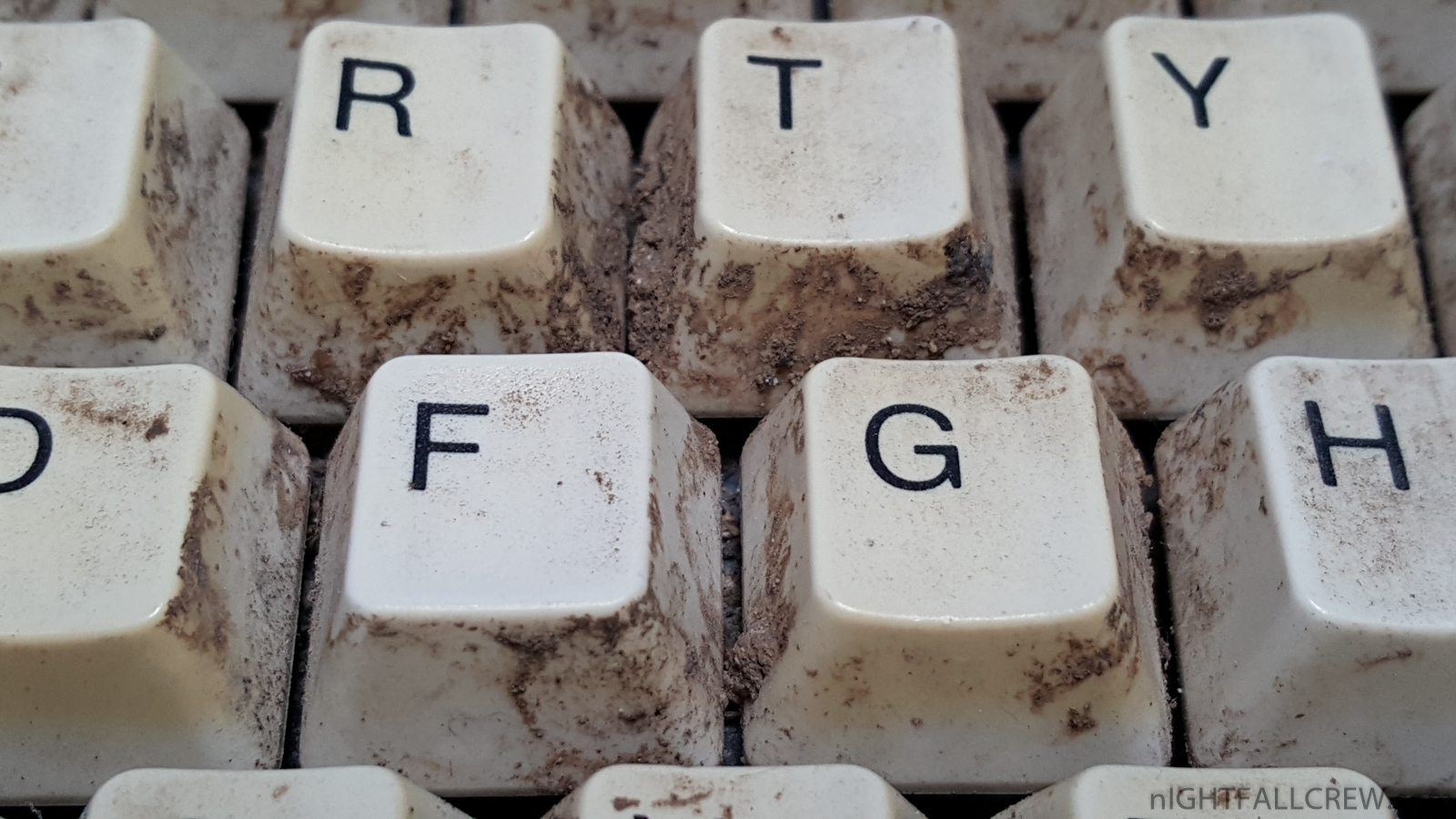

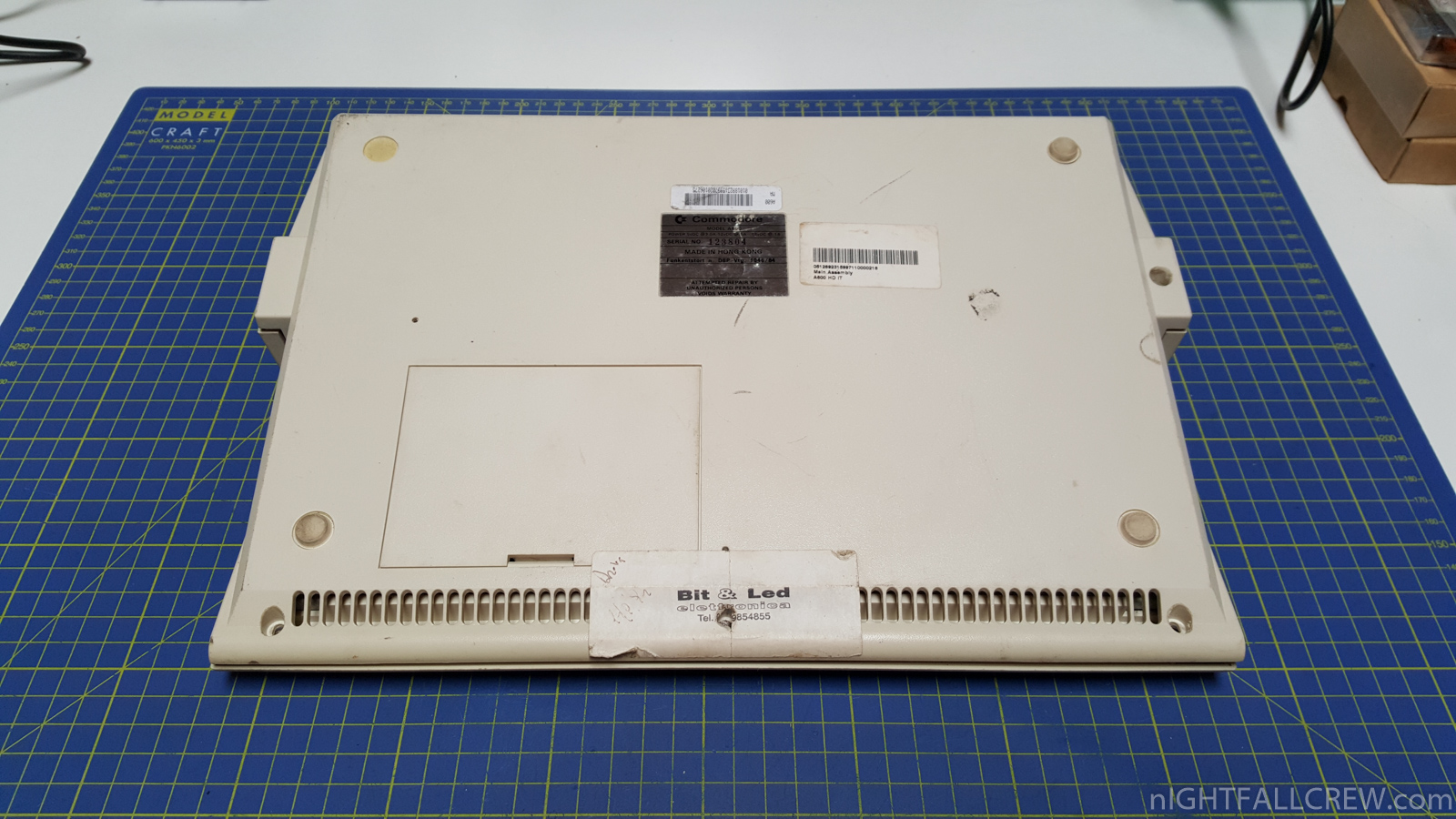

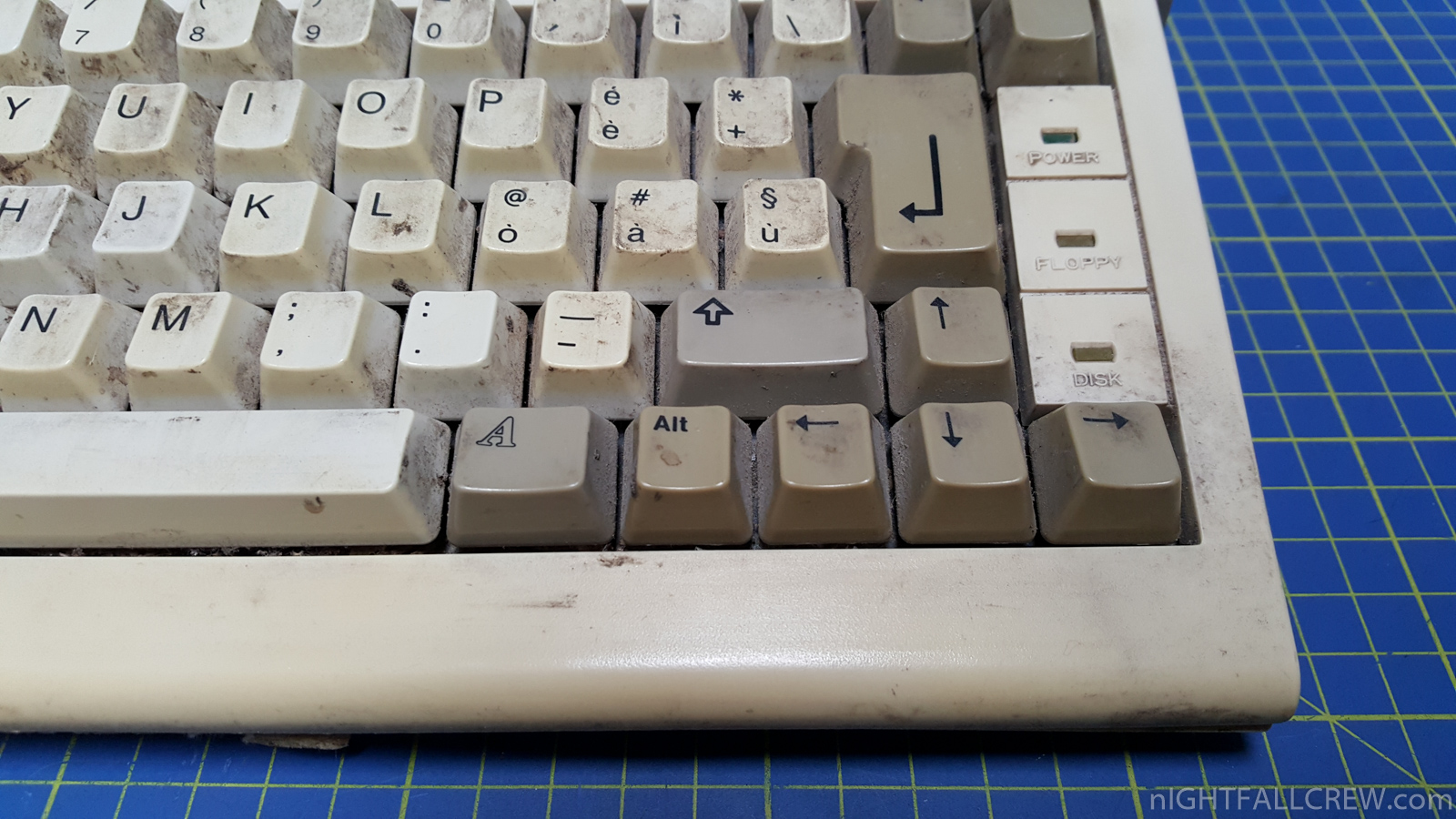

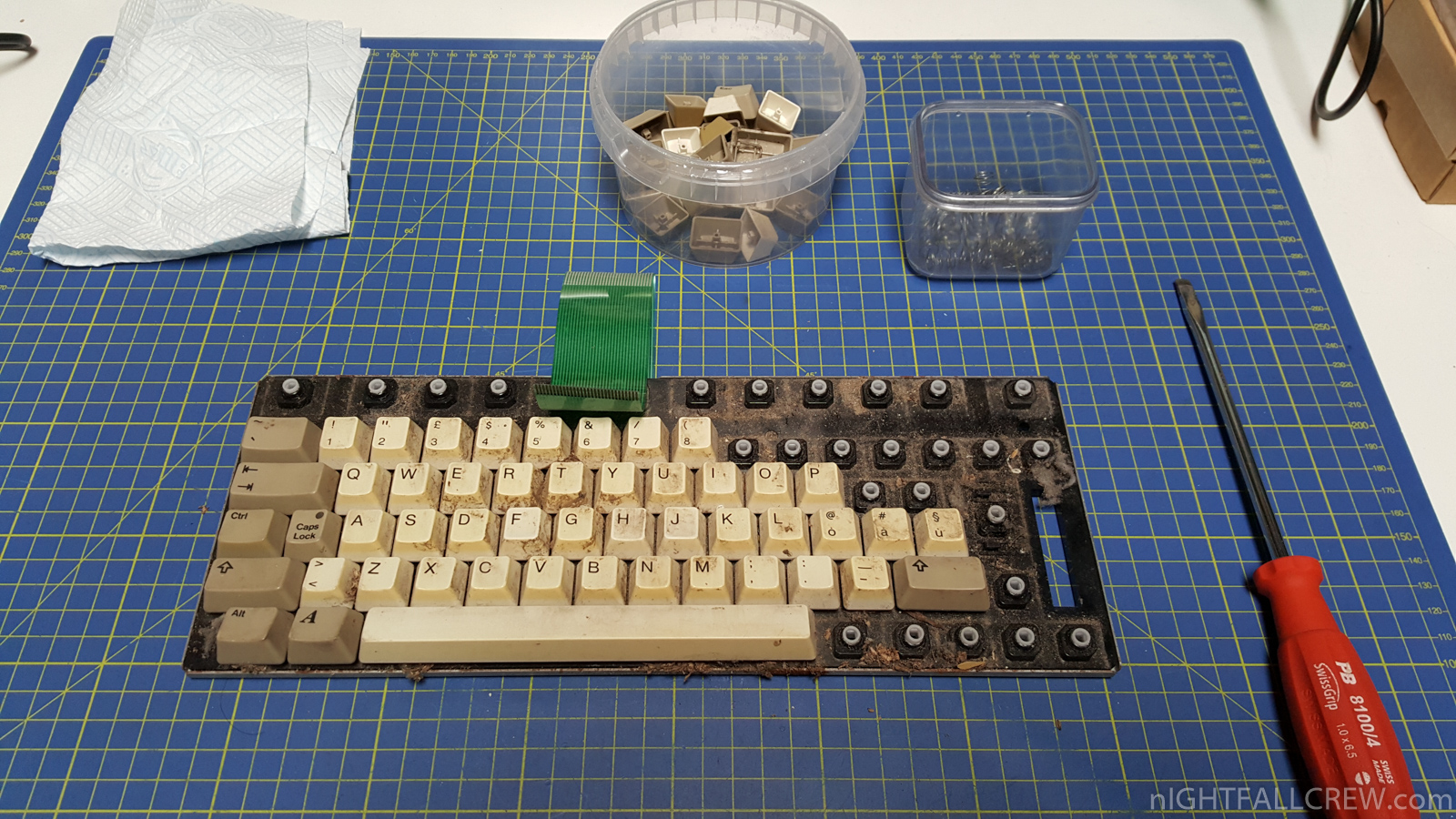

Gallery of the repair & cleaning:

1234►

I start to saying that this type of repair should NOT be made, are not good although the repair can succeed, these damaged motherboards are good for spare parts.

It took me 10 hours to repair and if i ask 15,00 euro per hour like a housekeeper, would be 150,00 euro excluding components and cleaning case … but who pays 150,00+ euro ? no one in the world. :-D

This is one of the reasons because do not exist anymore electronic repairs or there are very few people can do it, nobody is willing to pay.

Works that have been made:

Foreword almost all pcb pads are leaked of the acid, although i have cleaned more times so as not to heat the electrolyte liquid that is worsening the situation, unfortunately the pcb pad could not resist to a new solder and they are broken.

• Soldered the E232R resistor, it’s no a good soldering because the pad are in a badly state but working.
• Soldered a transistors Q233 (2N3904) not SMD, the pitches are gone when i have tried to solder the SMD version.
• Rebuilt 10 x connections doing a horrible jumpers in bizarre places.
• Replaced the electrolytic capacitors.
• Replaced the male connector for the Harddisk.

It’s a shit … but it works!

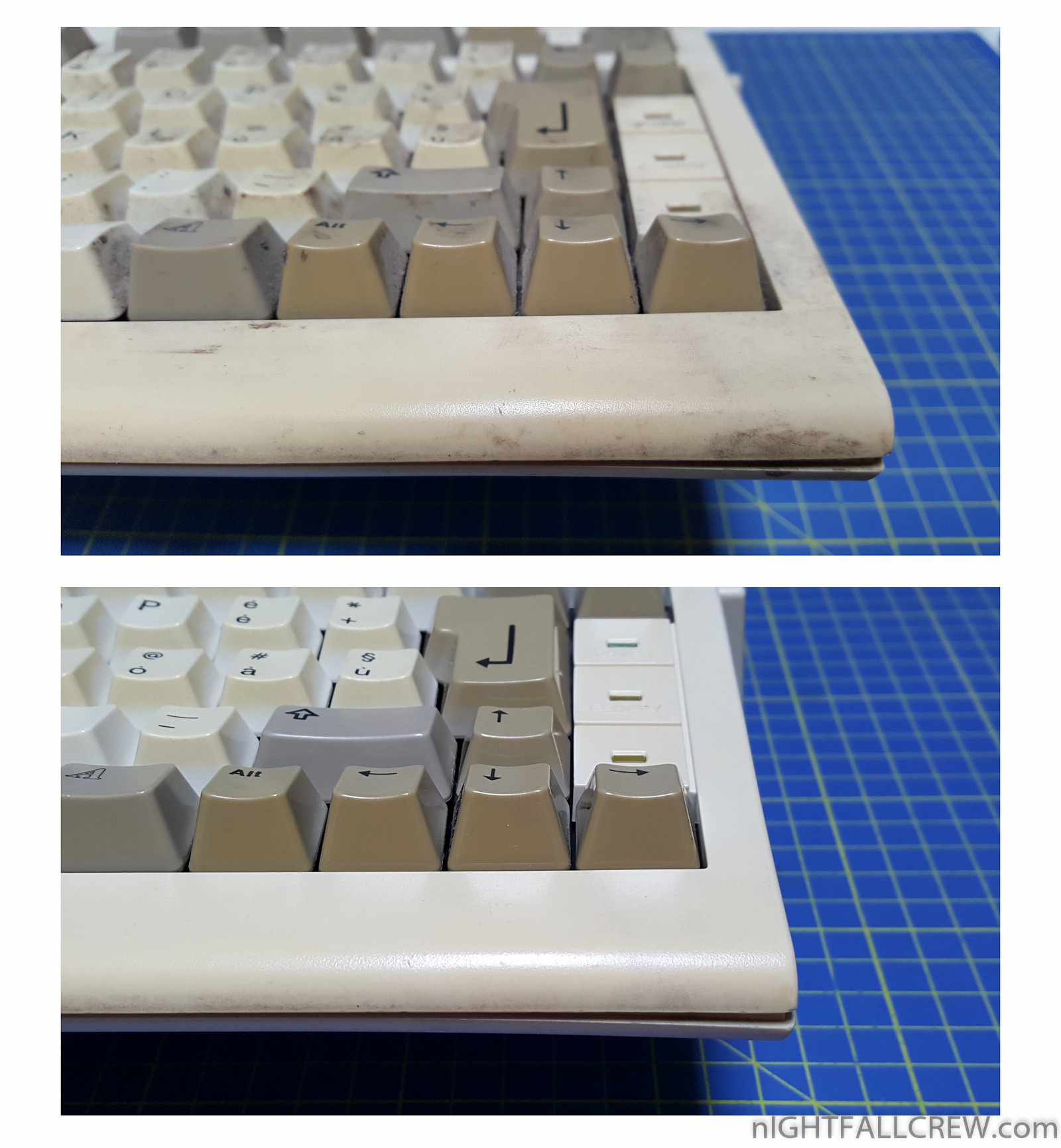

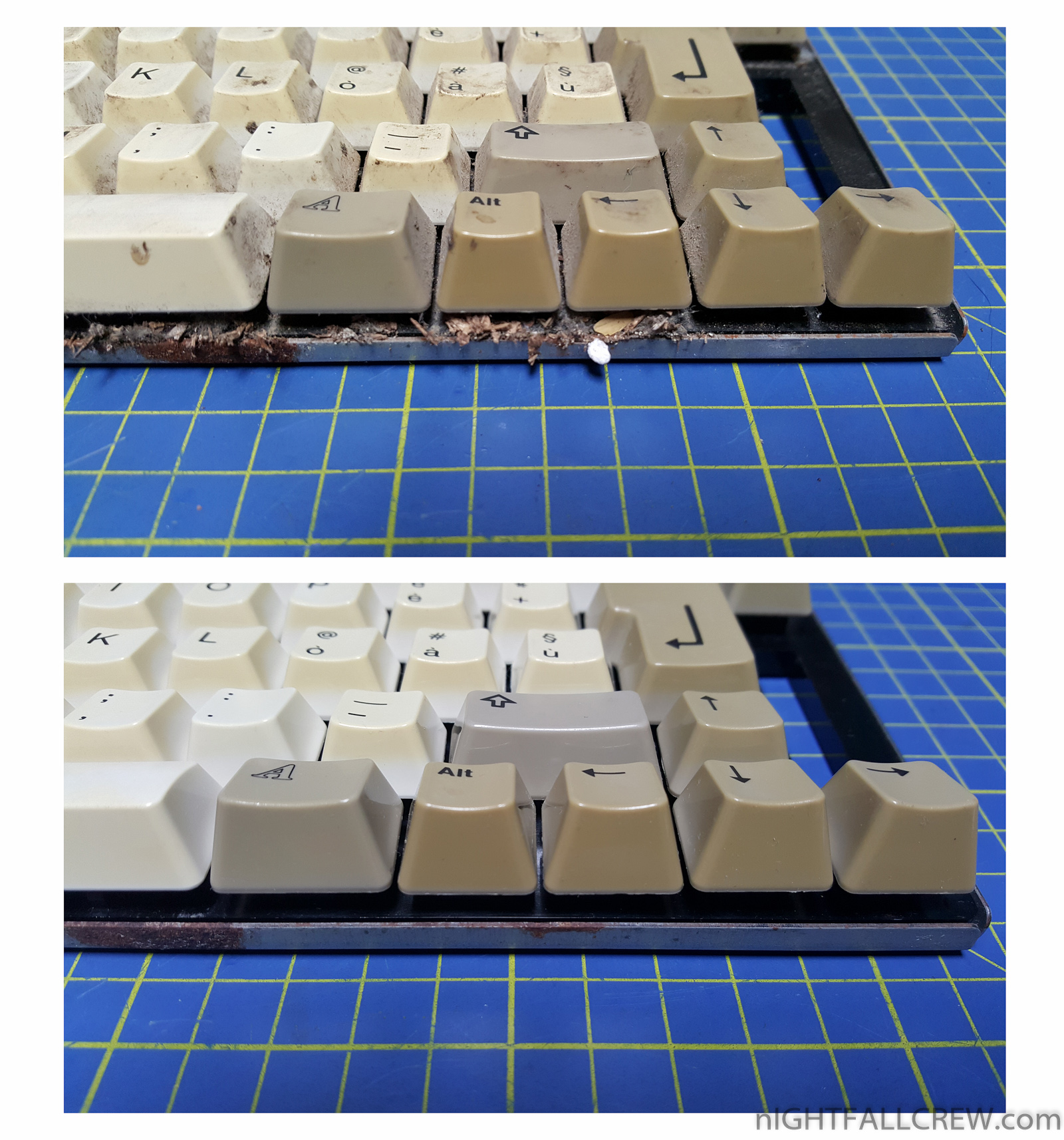

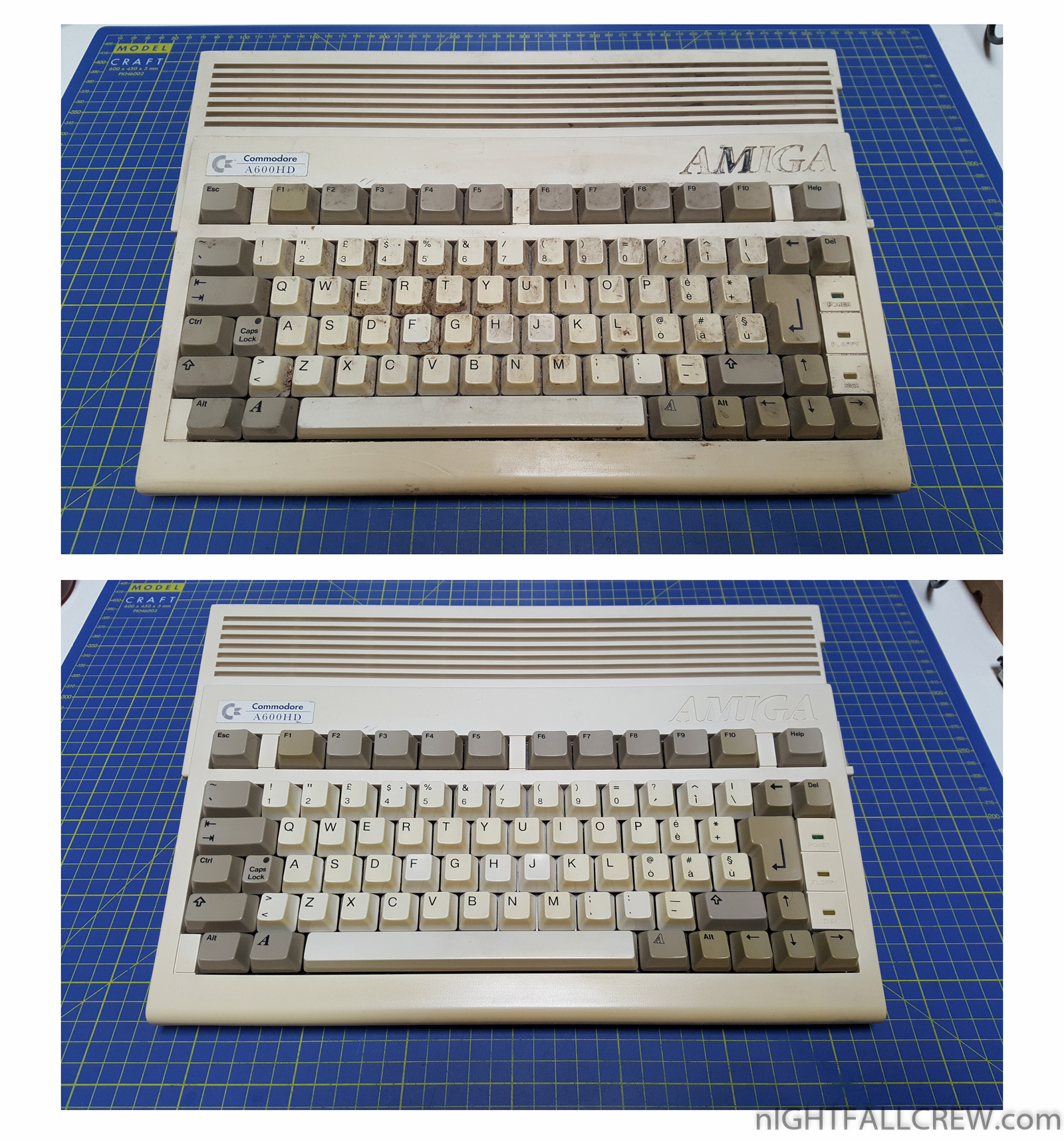

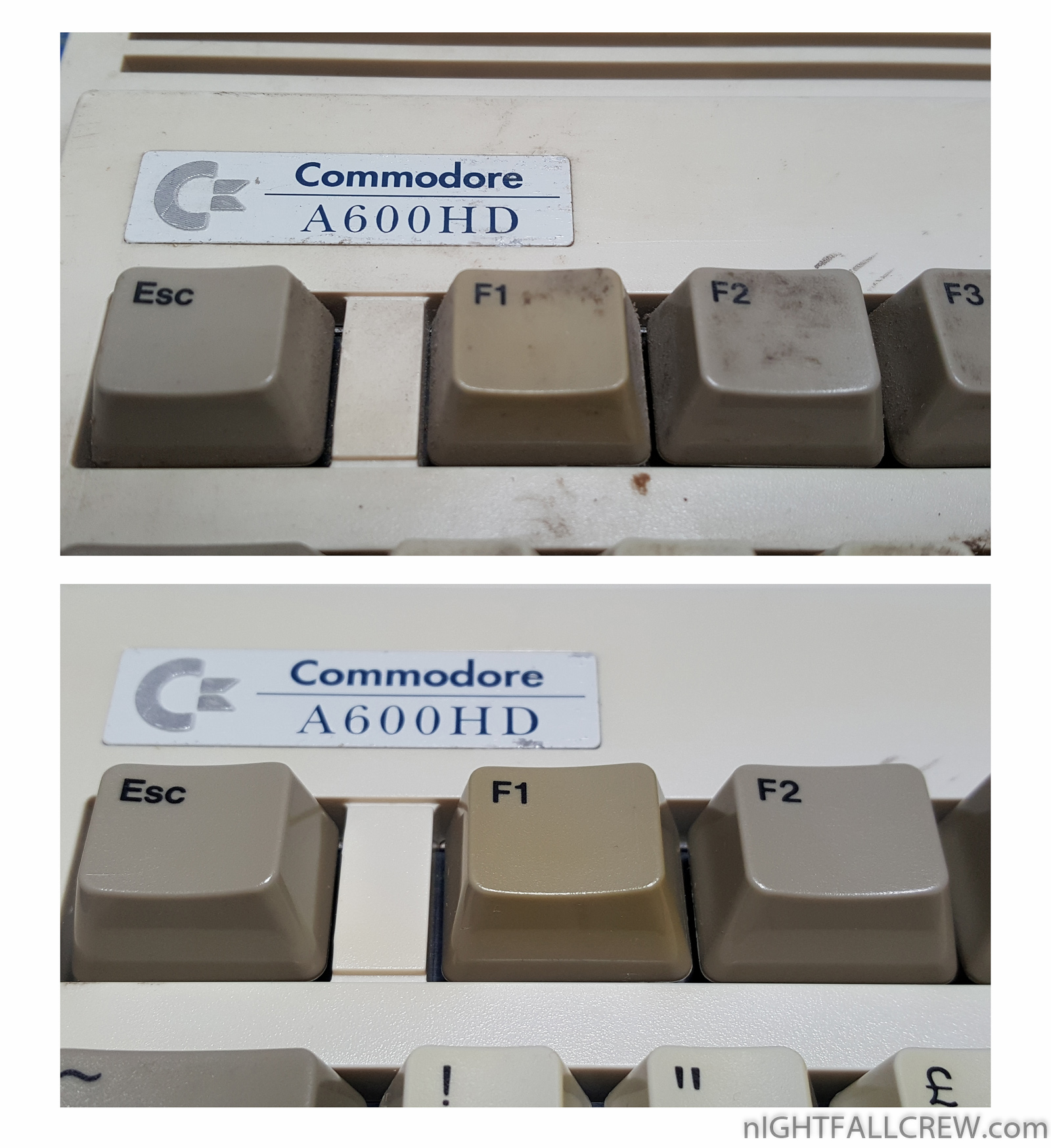

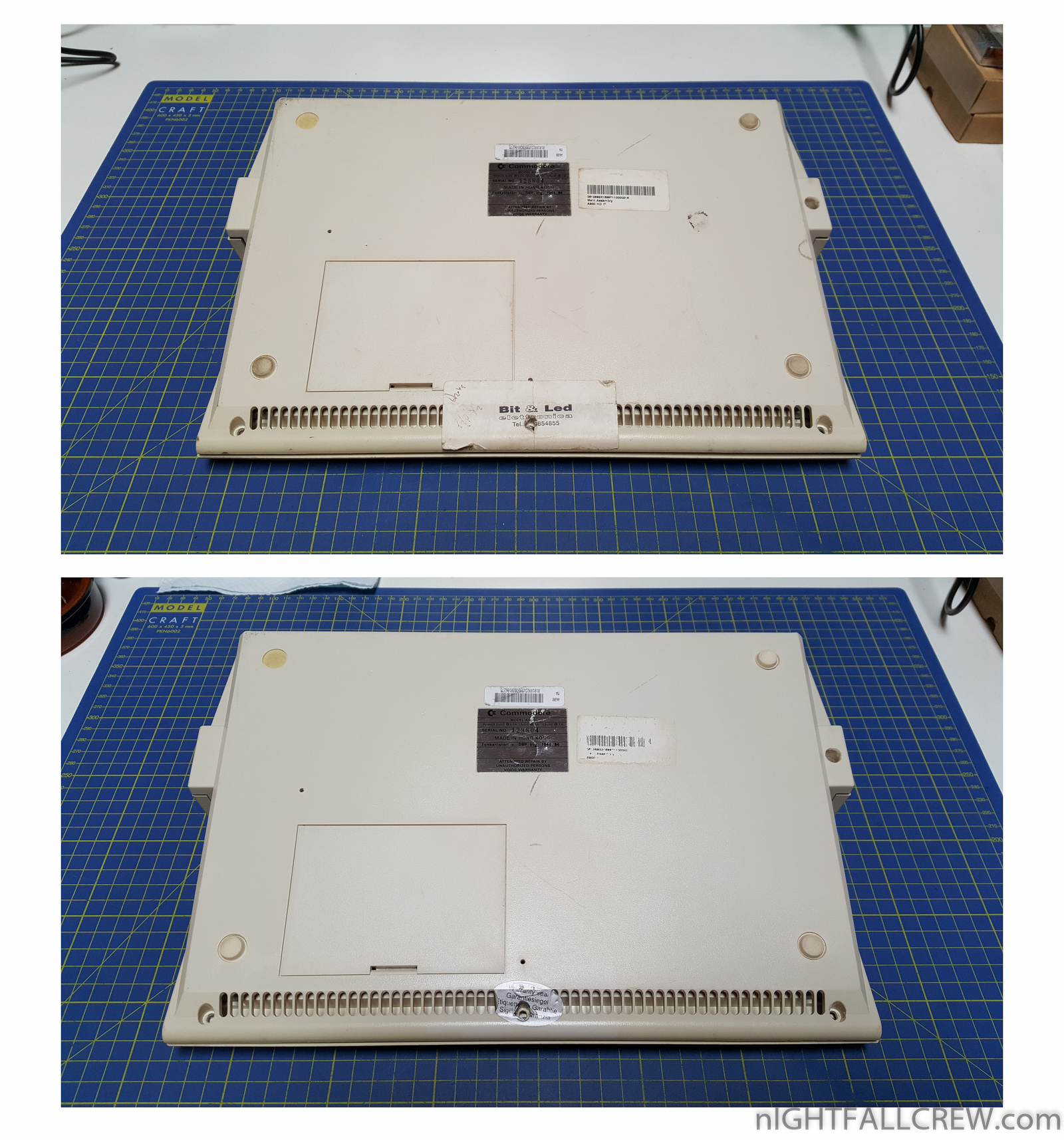

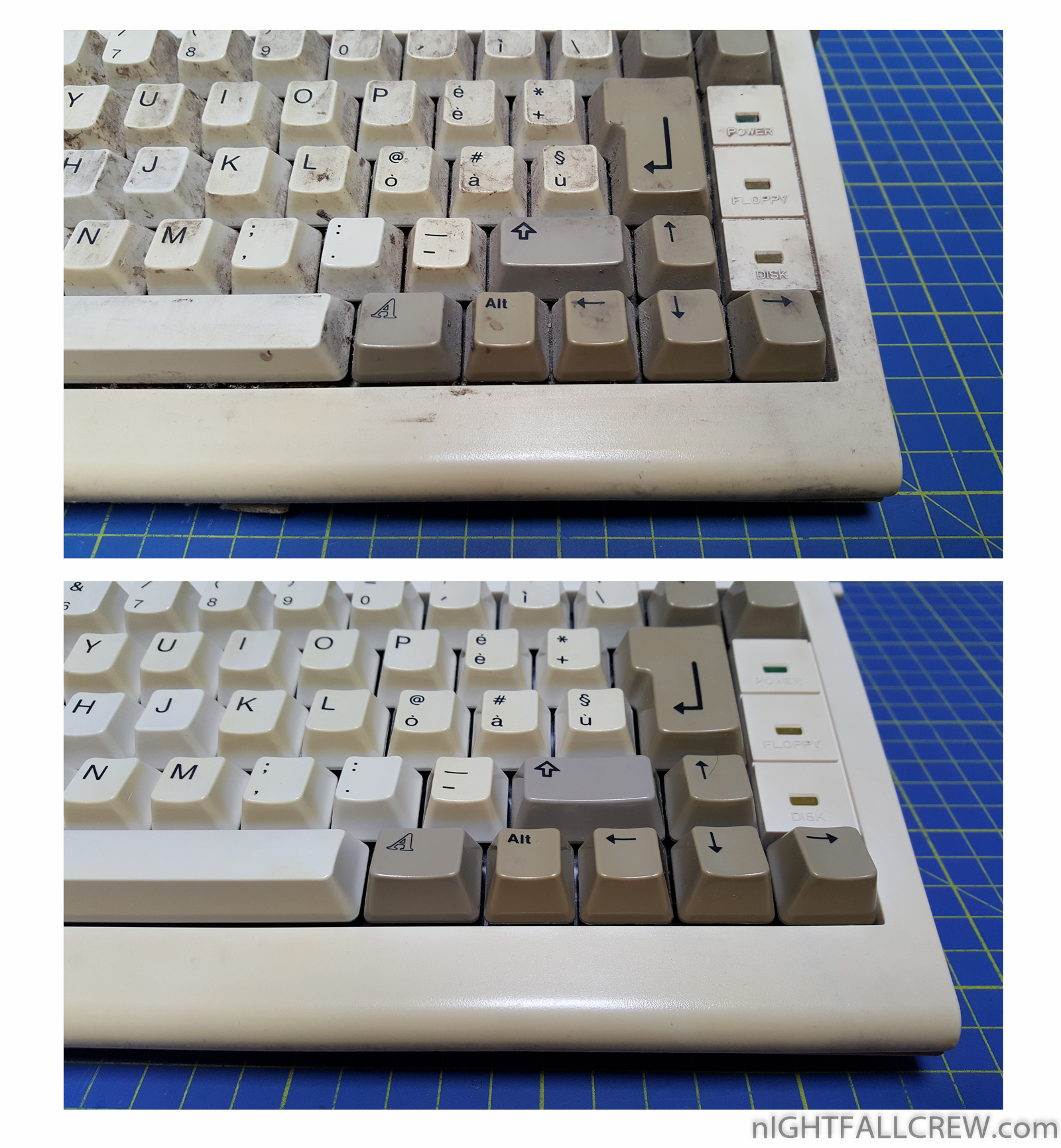

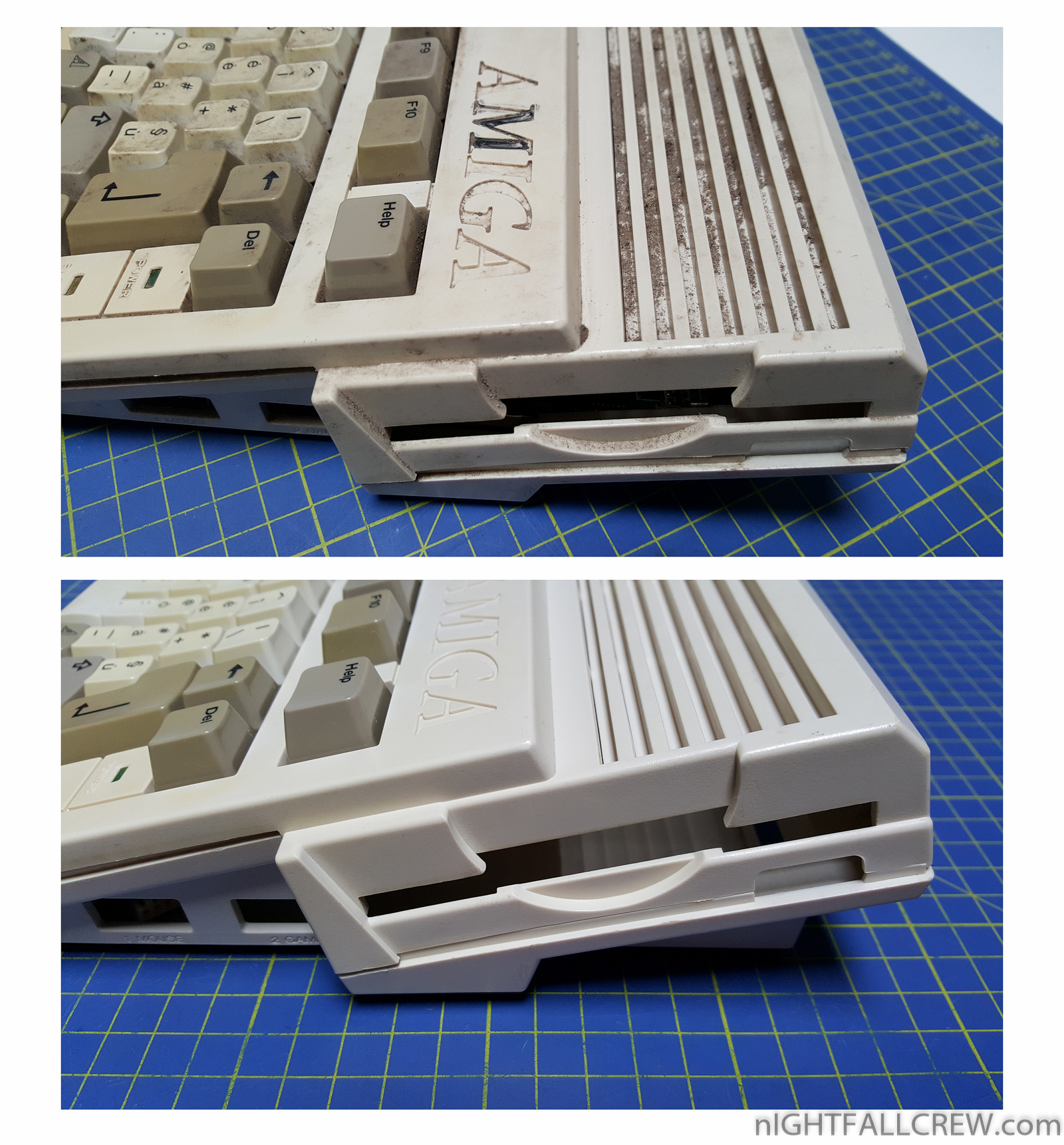

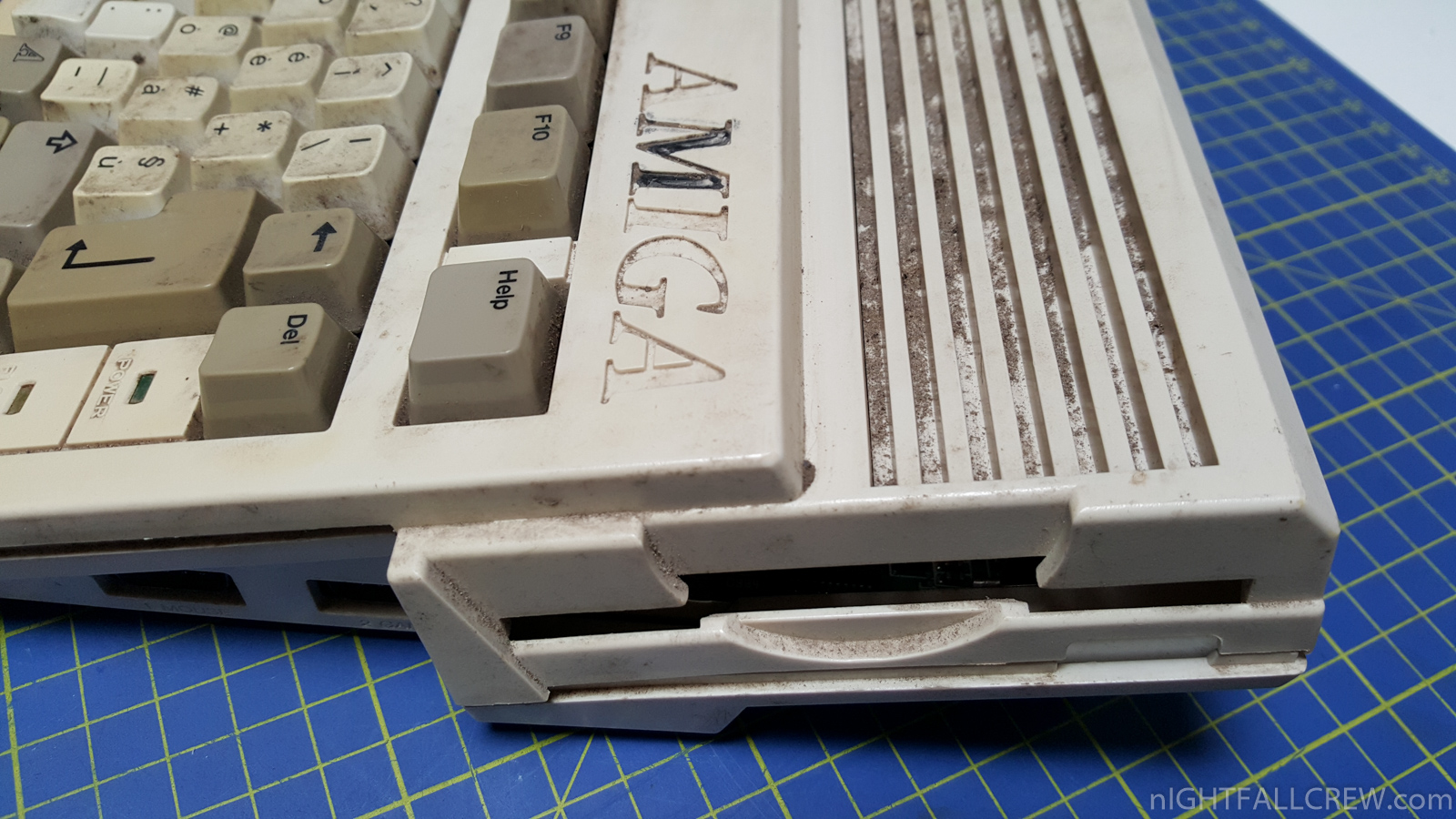

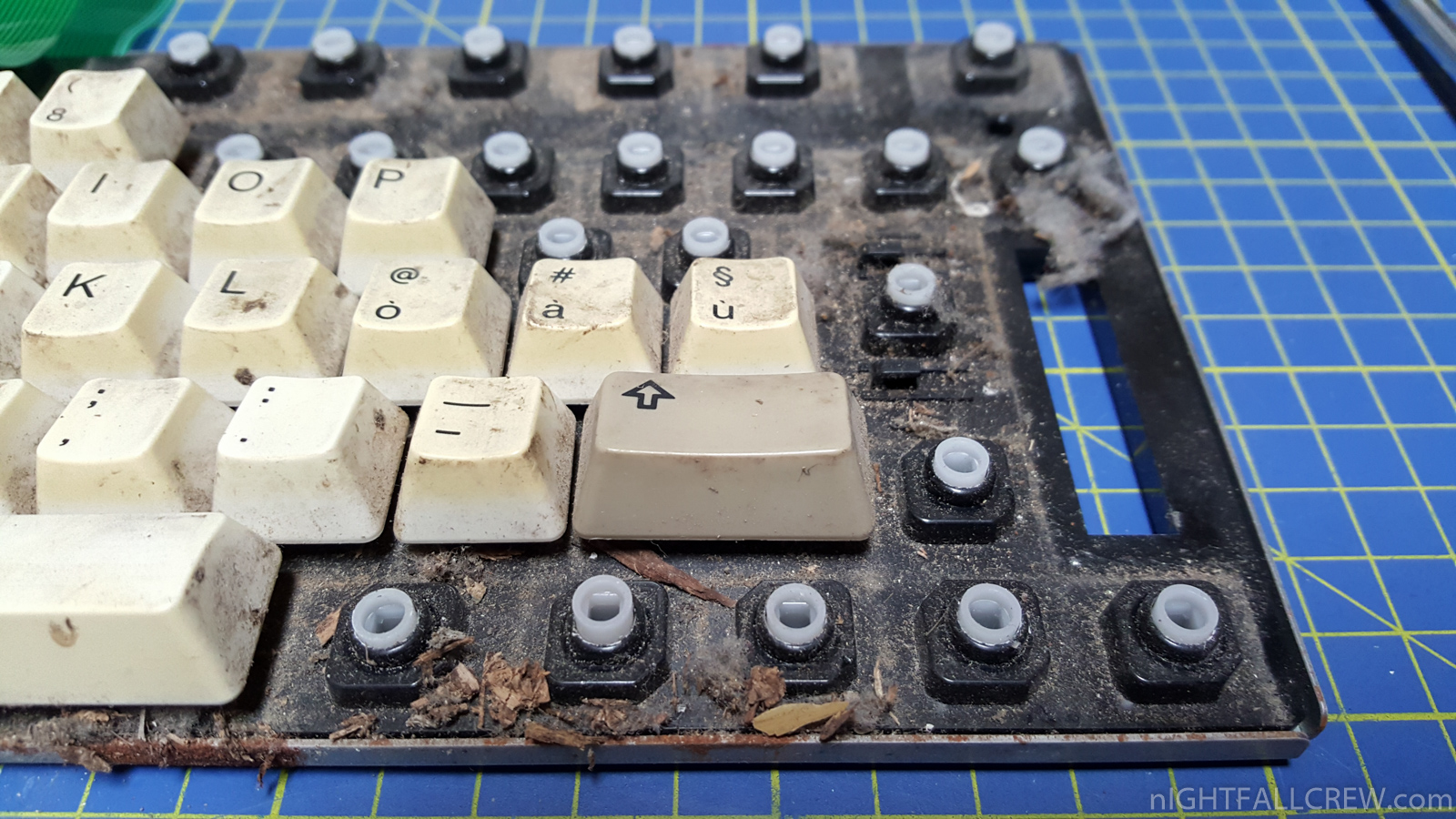

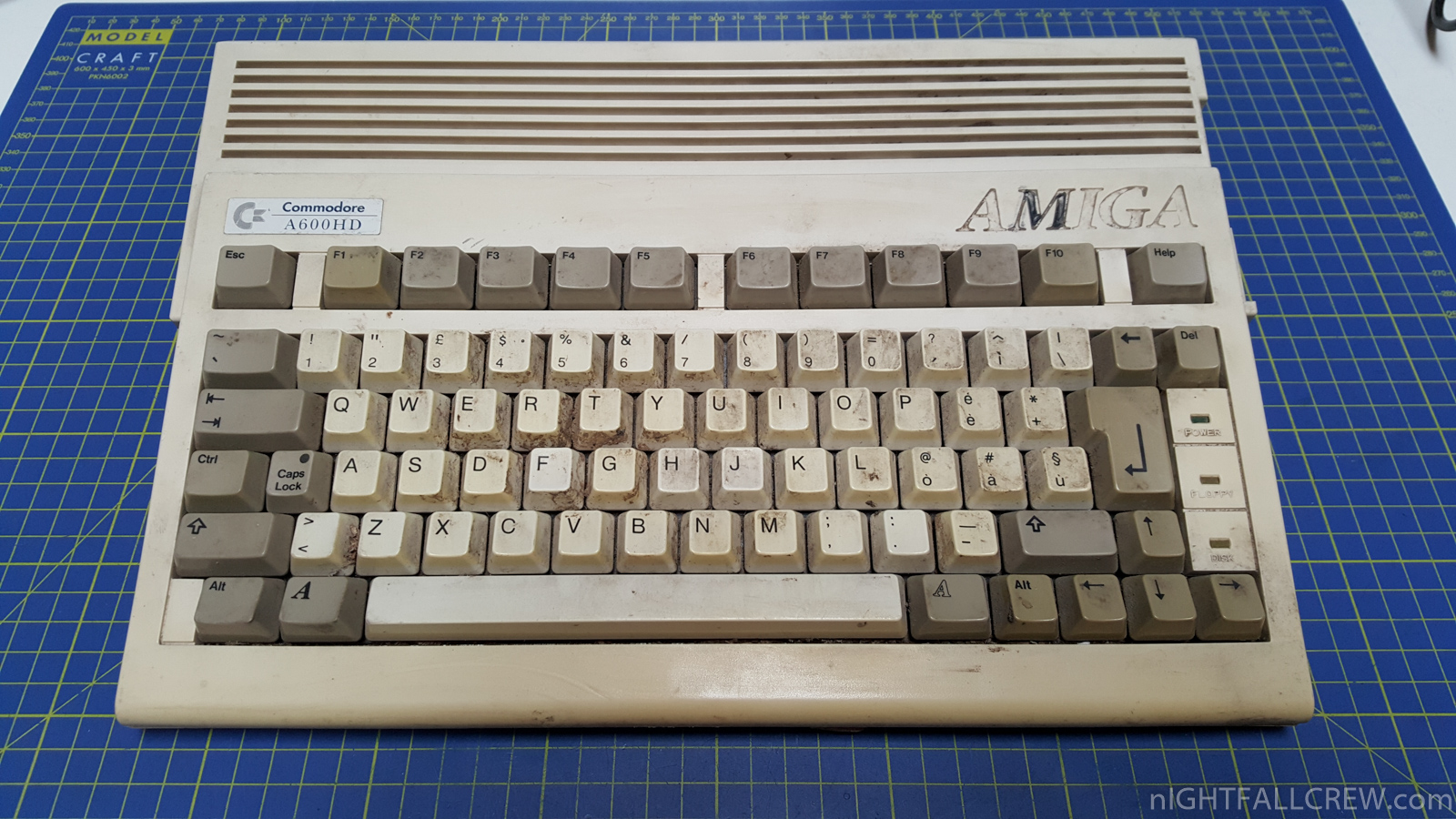

Commodore Amiga 600 Gallery (Before & After):
