2 x Commodore PET 2001 (1977-1978) Chiclet Repair
Below a short description of the repair.
Commodore PET 2001 (1977) Chiclet Keyboard (#1)
Defect:

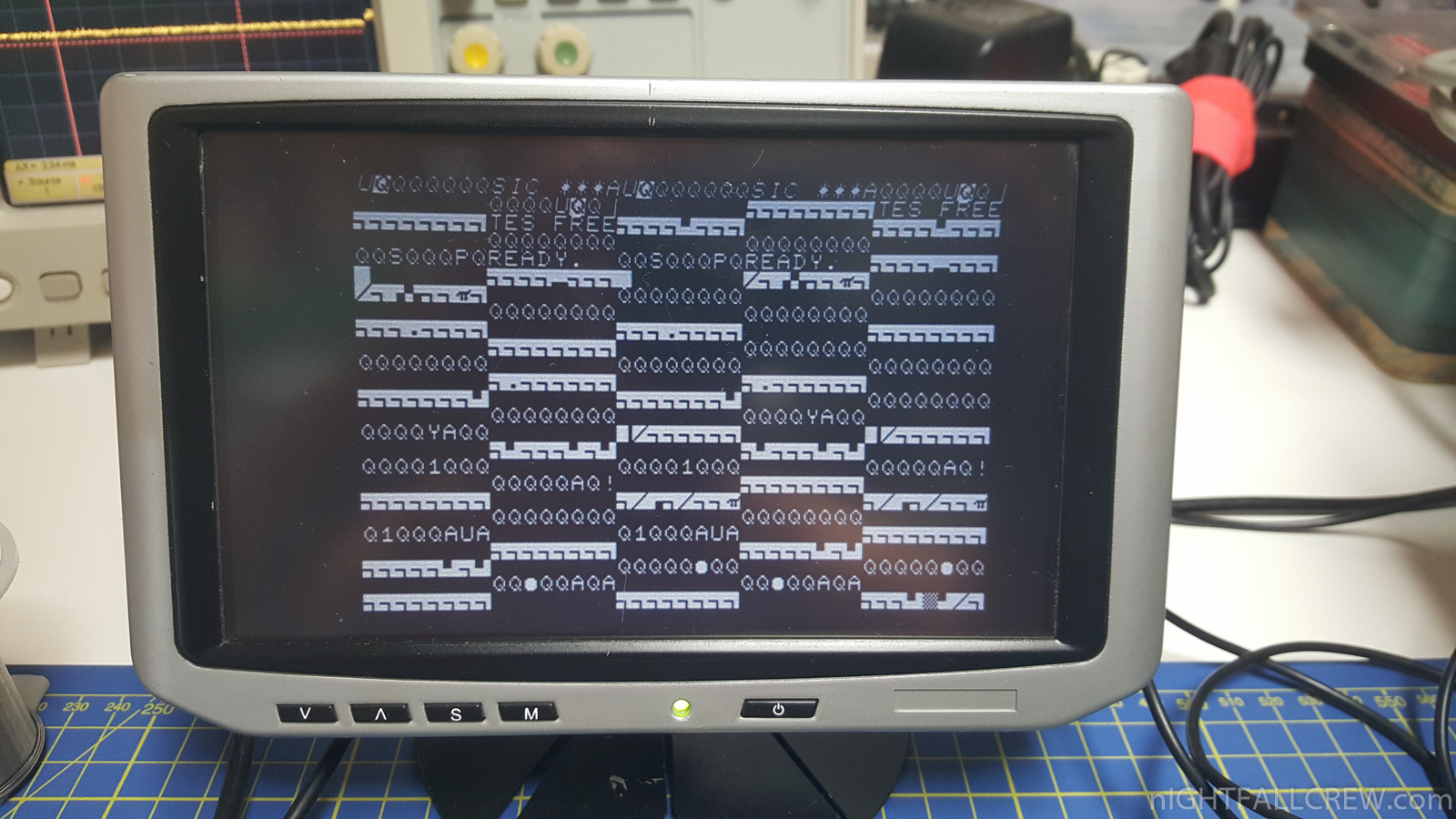

- Garbage Screen on boot and partially in a working state.
Diagnosis/Repair:

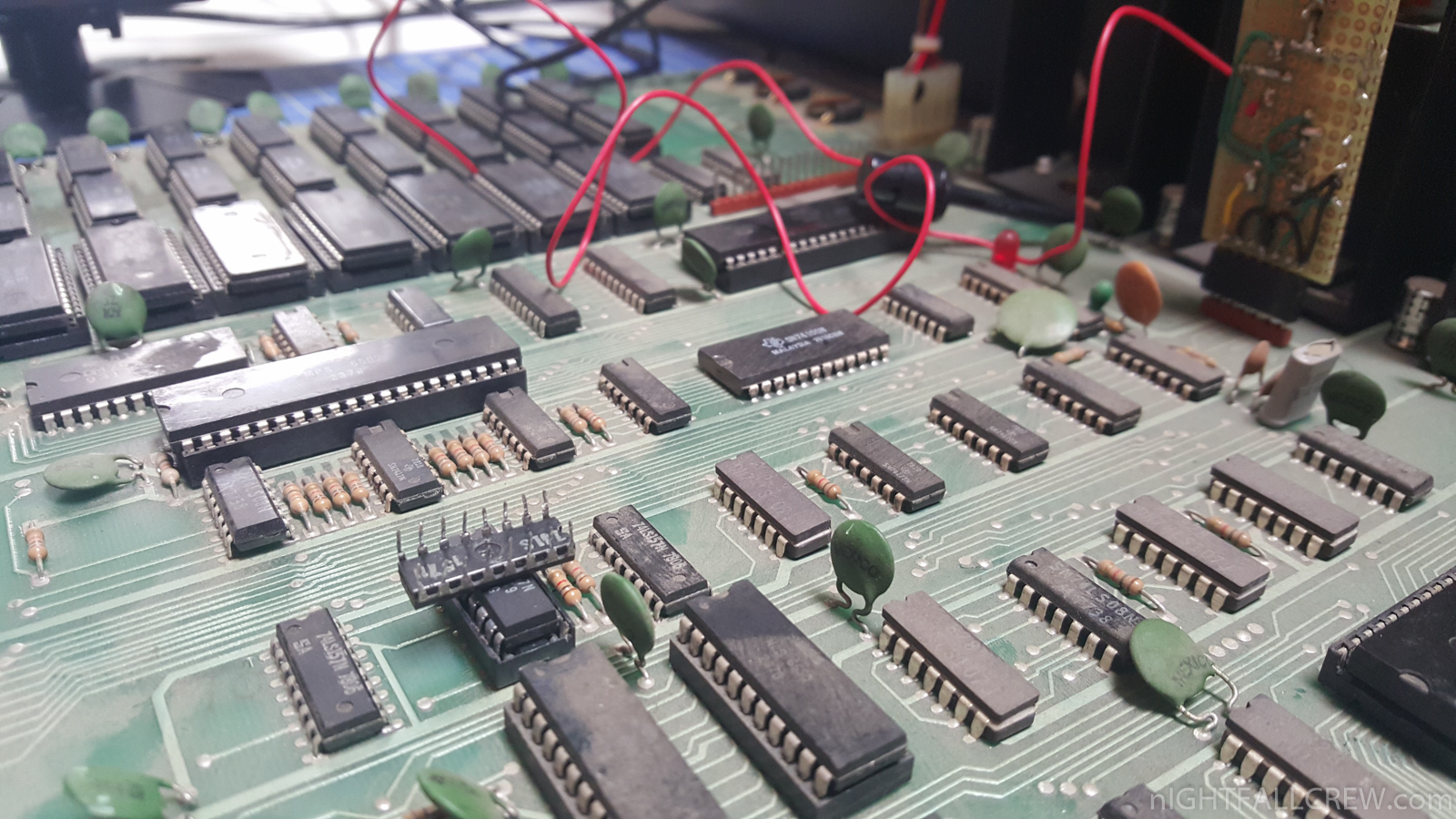

- The Multiplexer 74LS157 (position D2) had an output (pin 4) always been in low state.

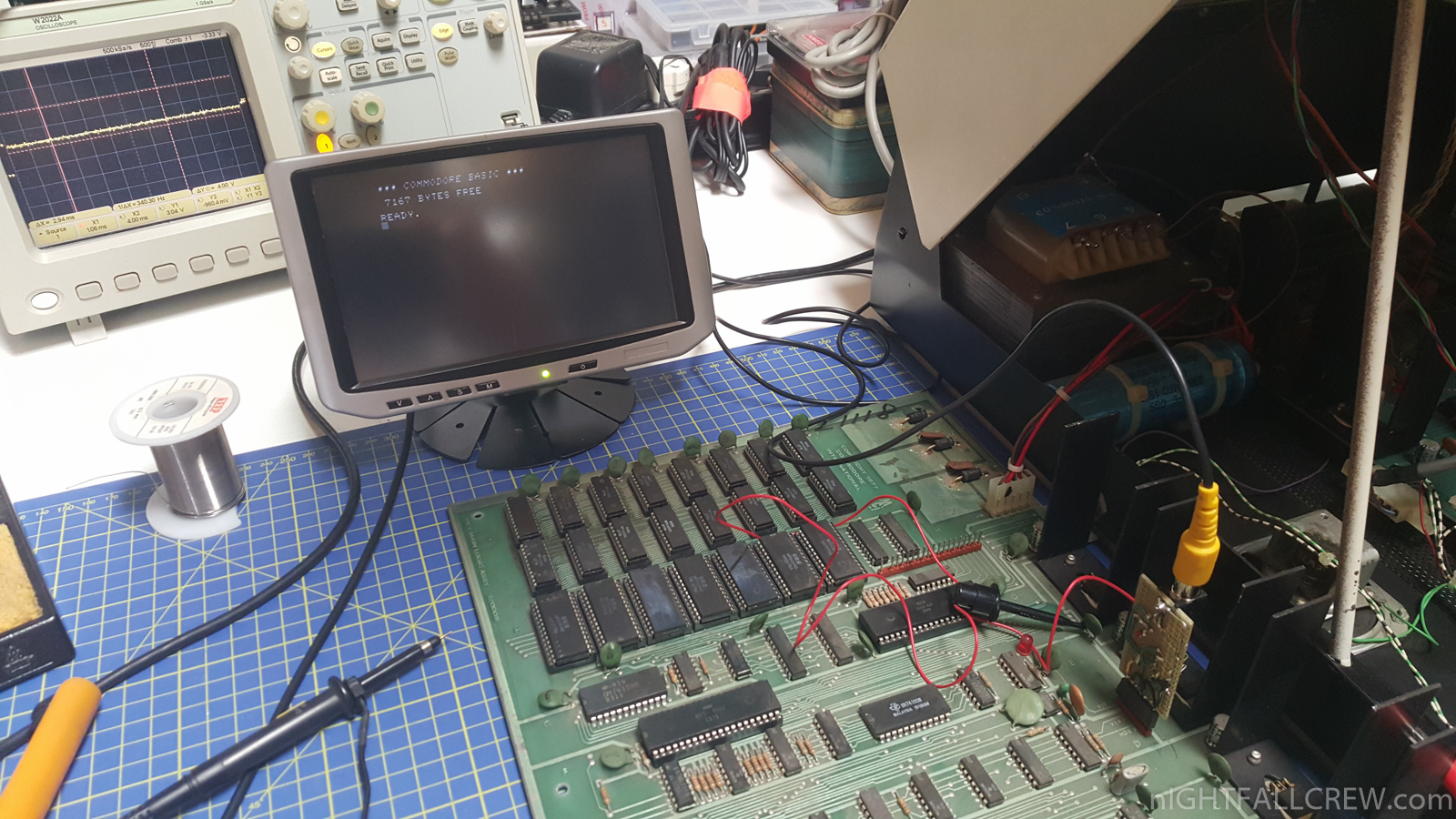

Gallery of the repair:
Commodore PET 2001 (1978) Chiclet Keyboard (#2)
Defect:

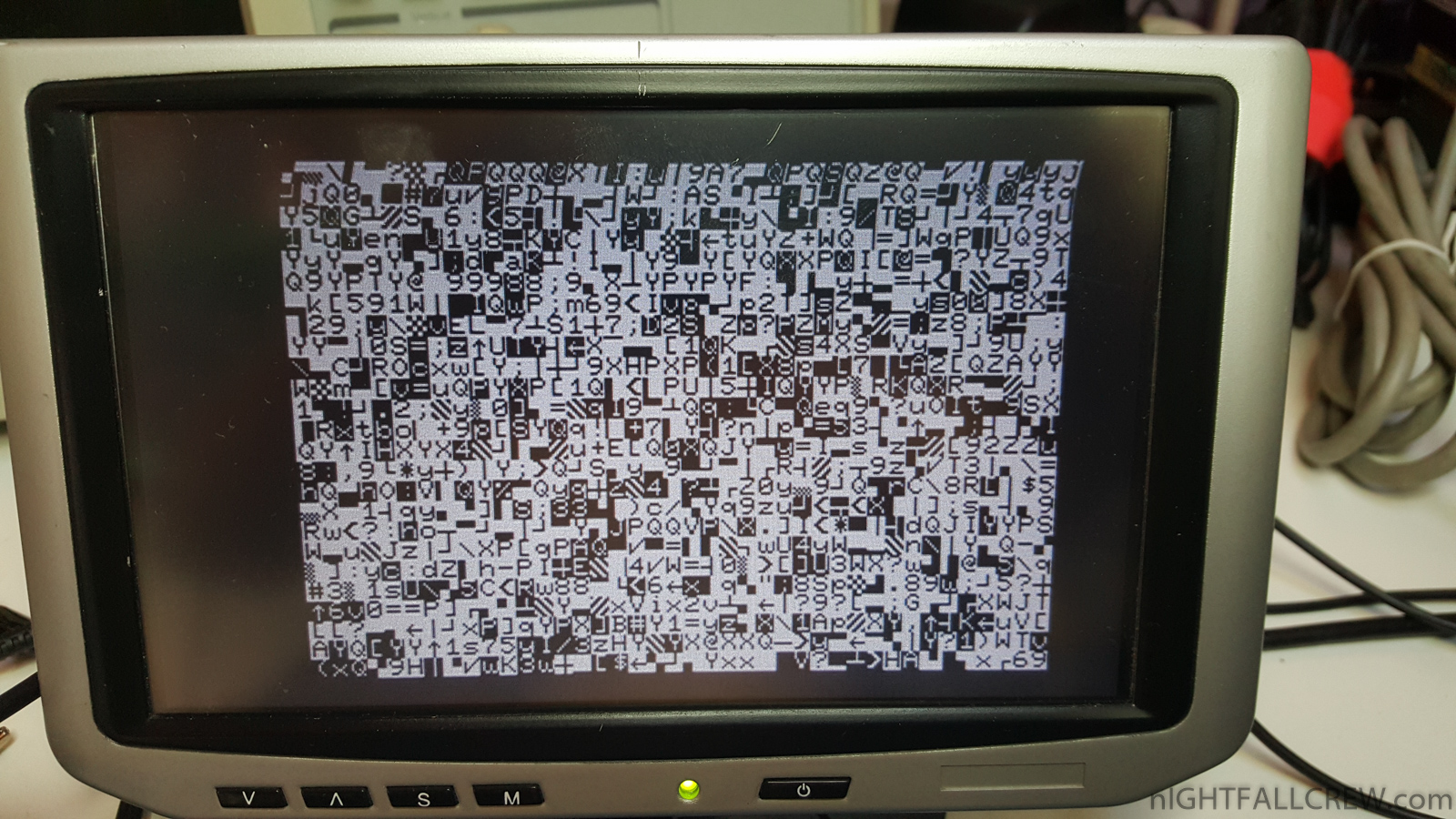

- Garbage Screen on boot.

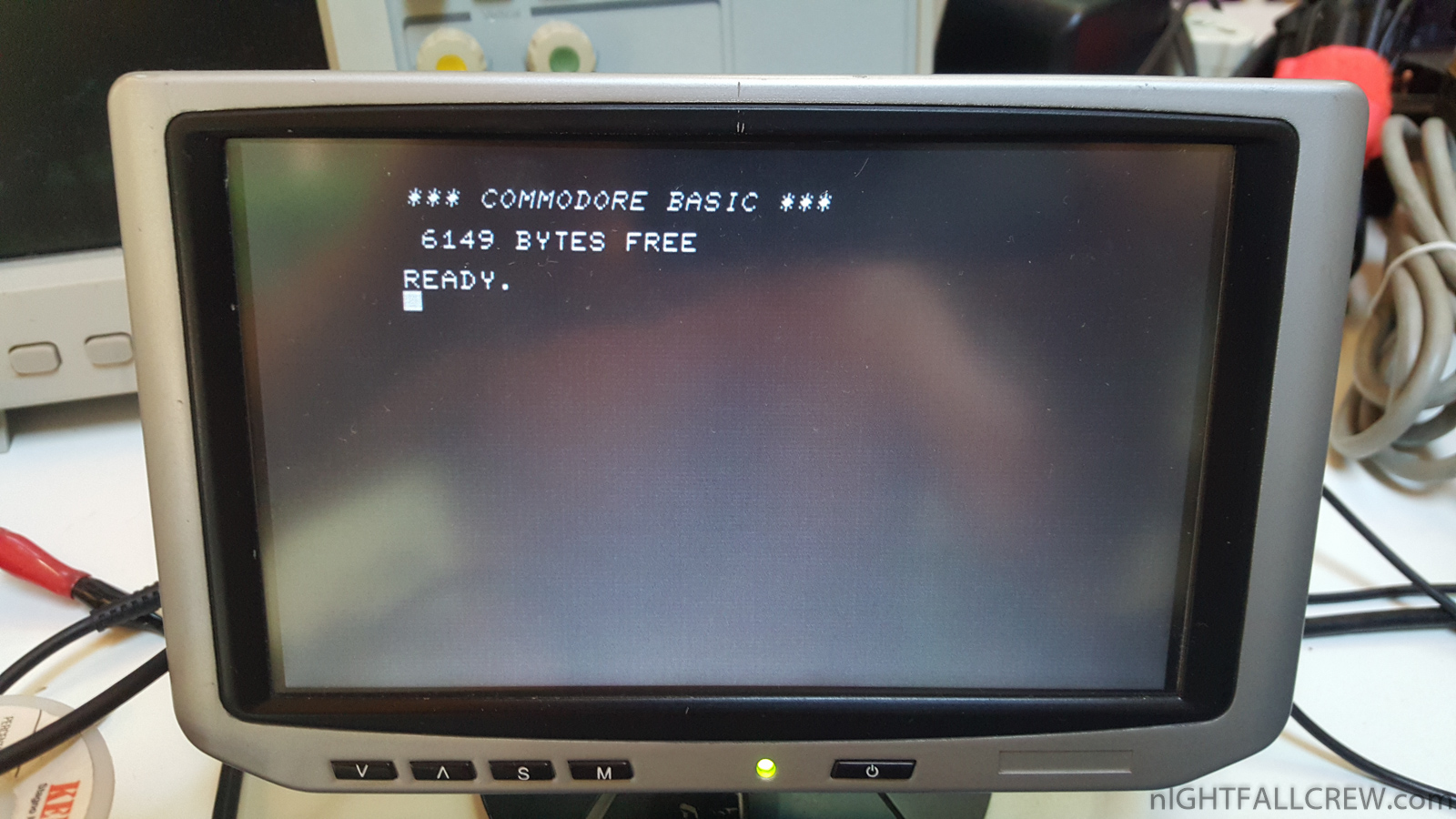

- Memory Problems (1018 Bytes are missing)
Diagnosis/Repair:

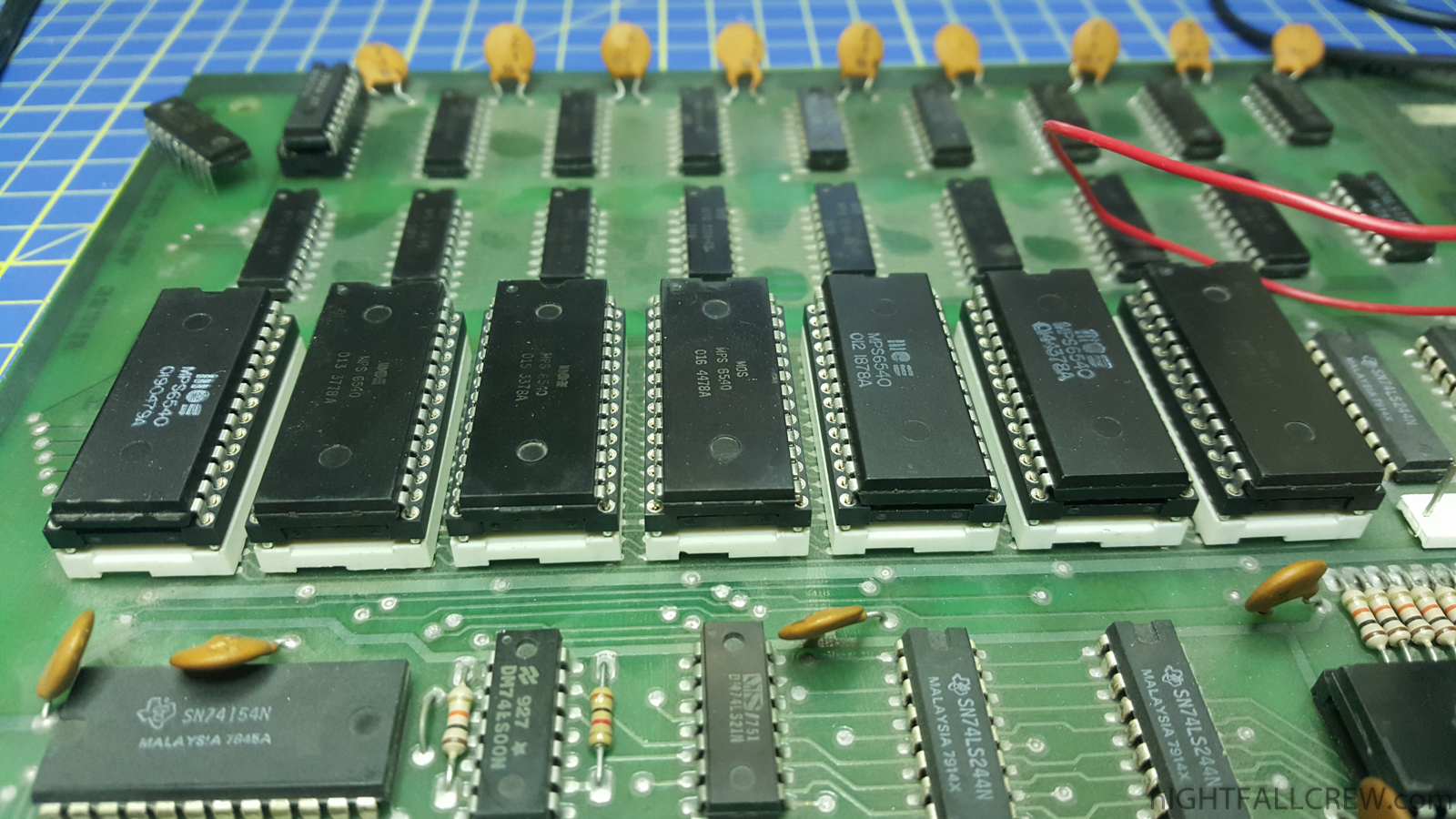

- The garbage screen on boot was caused by a poor contact of the sockets where reside the ROMs. Temporarily fixed by inserting a precision sockets above the original socket (very bad quality sockets).

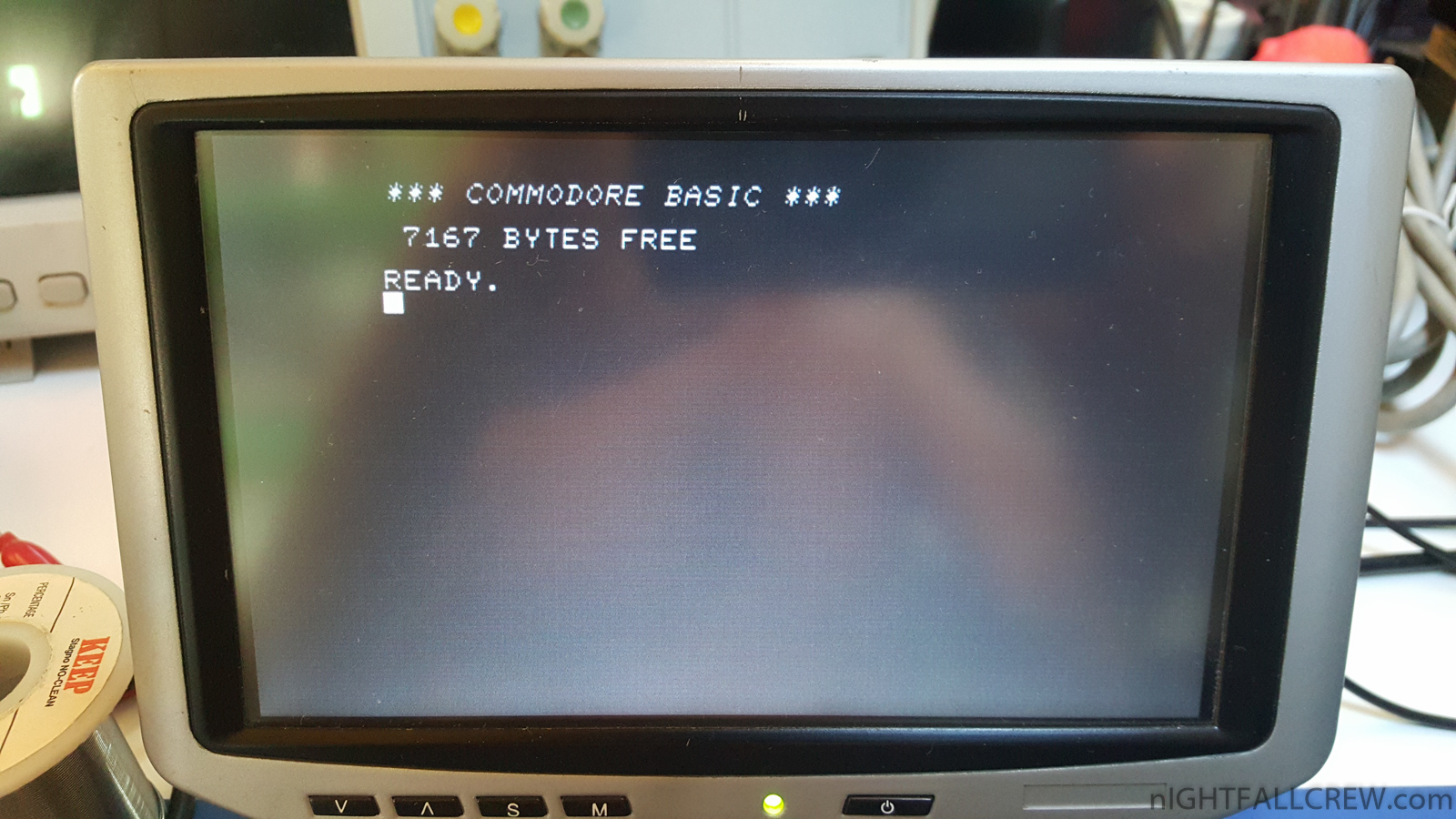

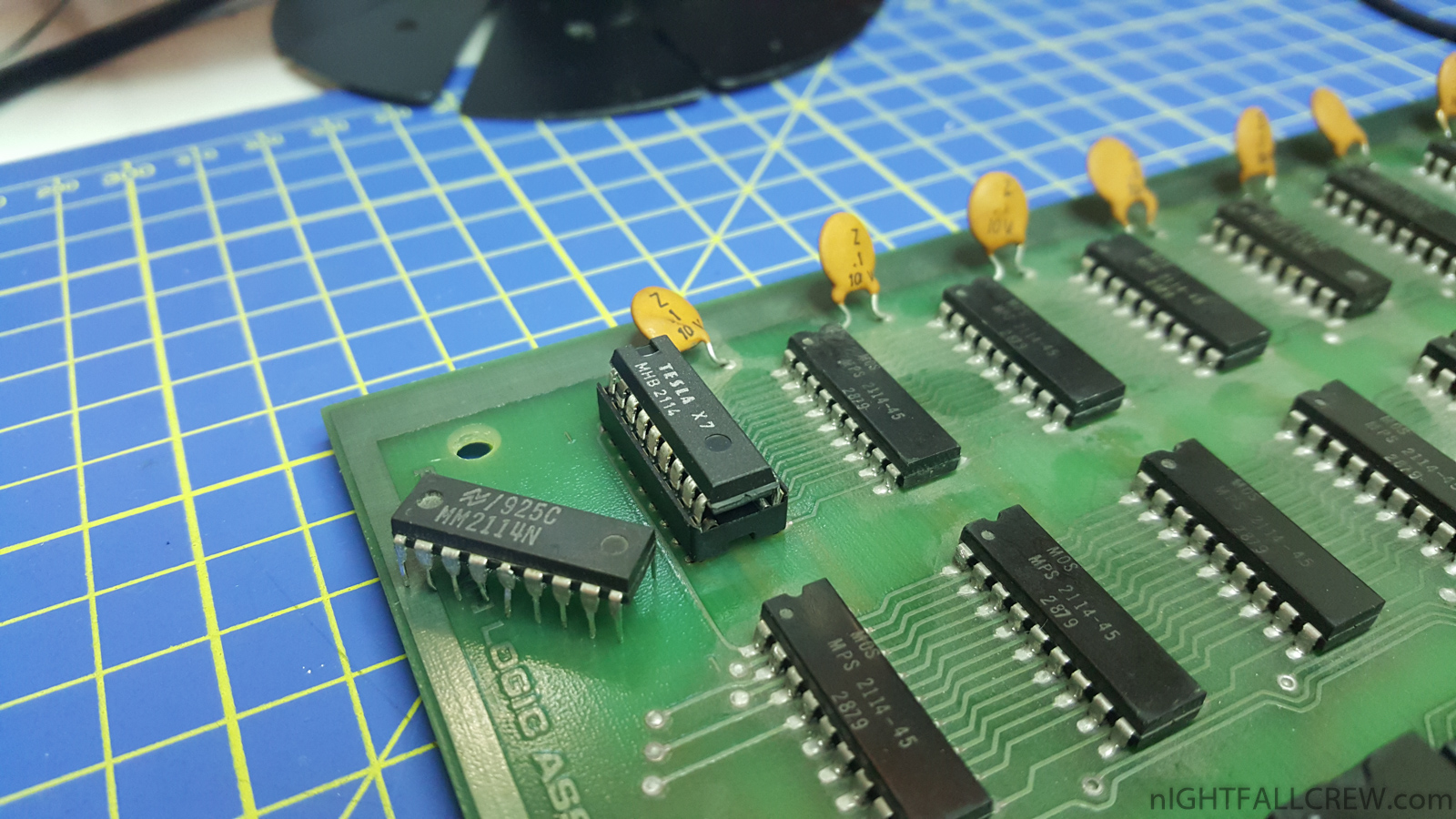

- The problem of the missing memory was fixed by replacing a RAM MPS 2114 (position J1) with a new one.
Gallery of the repair:
