Autopsy:

◄123

from Wikipedia:

ZX Microdrive

The ZX Microdrive was a magnetic tape data storage system launched in July 1983 by Sinclair Research for its ZX Spectrum home computer. The Microdrive technology was later also used in the Sinclair QL and ICL One Per Desk personal computers.

Microdrives used tiny (44 × 34 × 8 mm including protective cover) cartridges containing a 5-metre (200-inch) endless loop of magnetic tape, 1.9 mm wide, driven at 76 cm/second (30 in/second); thus performing a complete circuit in approximately 8 seconds. The cartridges held a minimum of 85 kB when formatted on a ZX Microdrive (exact capacity depended on the number of “bad” sectors found and the precise speed of the Microdrive motor when formatting). The data retrieval rate was 15 kB/s, i.e., 120 kbit/s. It was possible to “expand” the capacity of a fresh microdrive cartridge by formatting it several times. This caused the tape to stretch slightly, increasing the length of the tape loop so that more sectors can be marked out on it. This procedure was widely documented in the Sinclair community magazines of the 1980s.

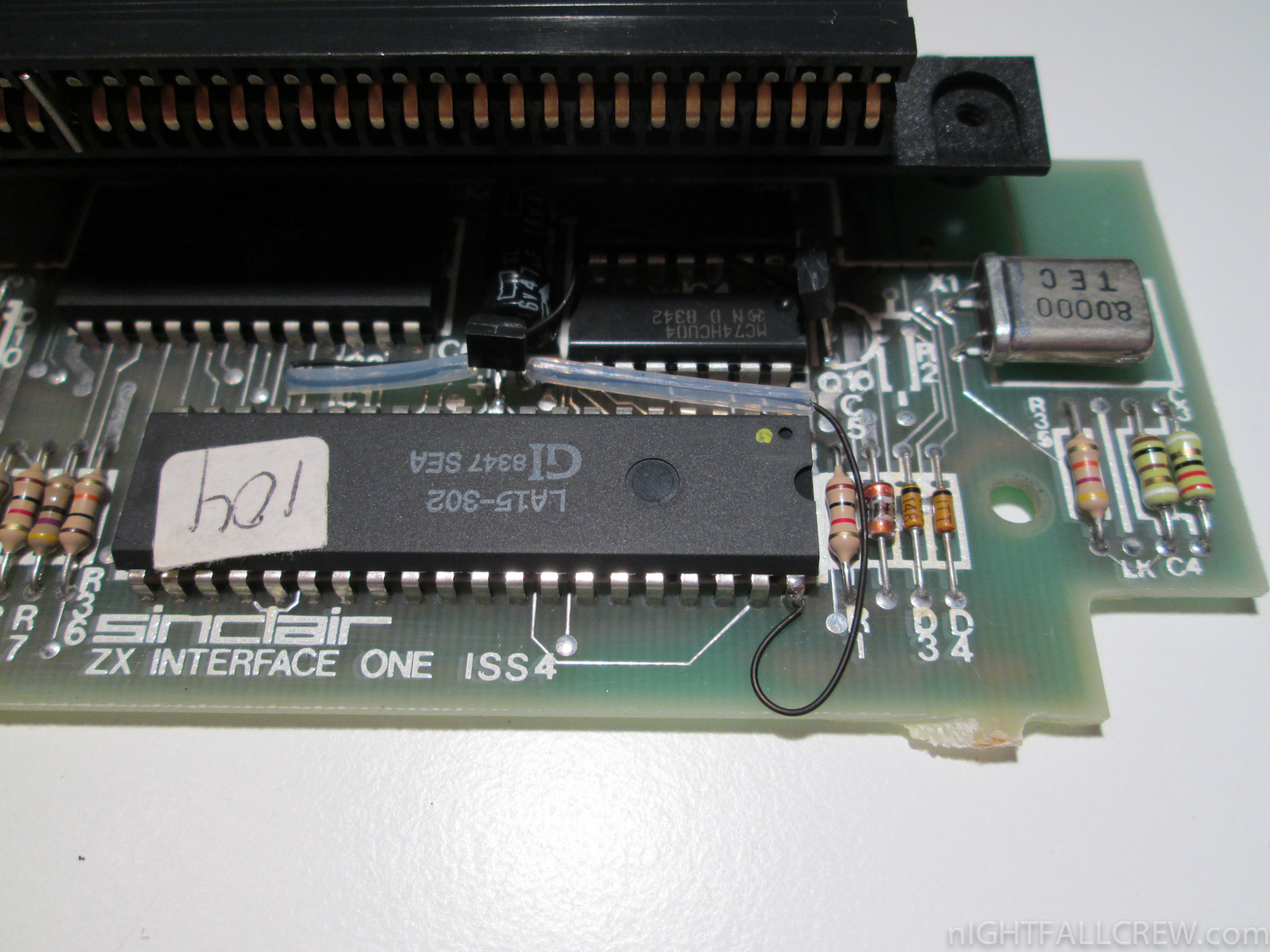

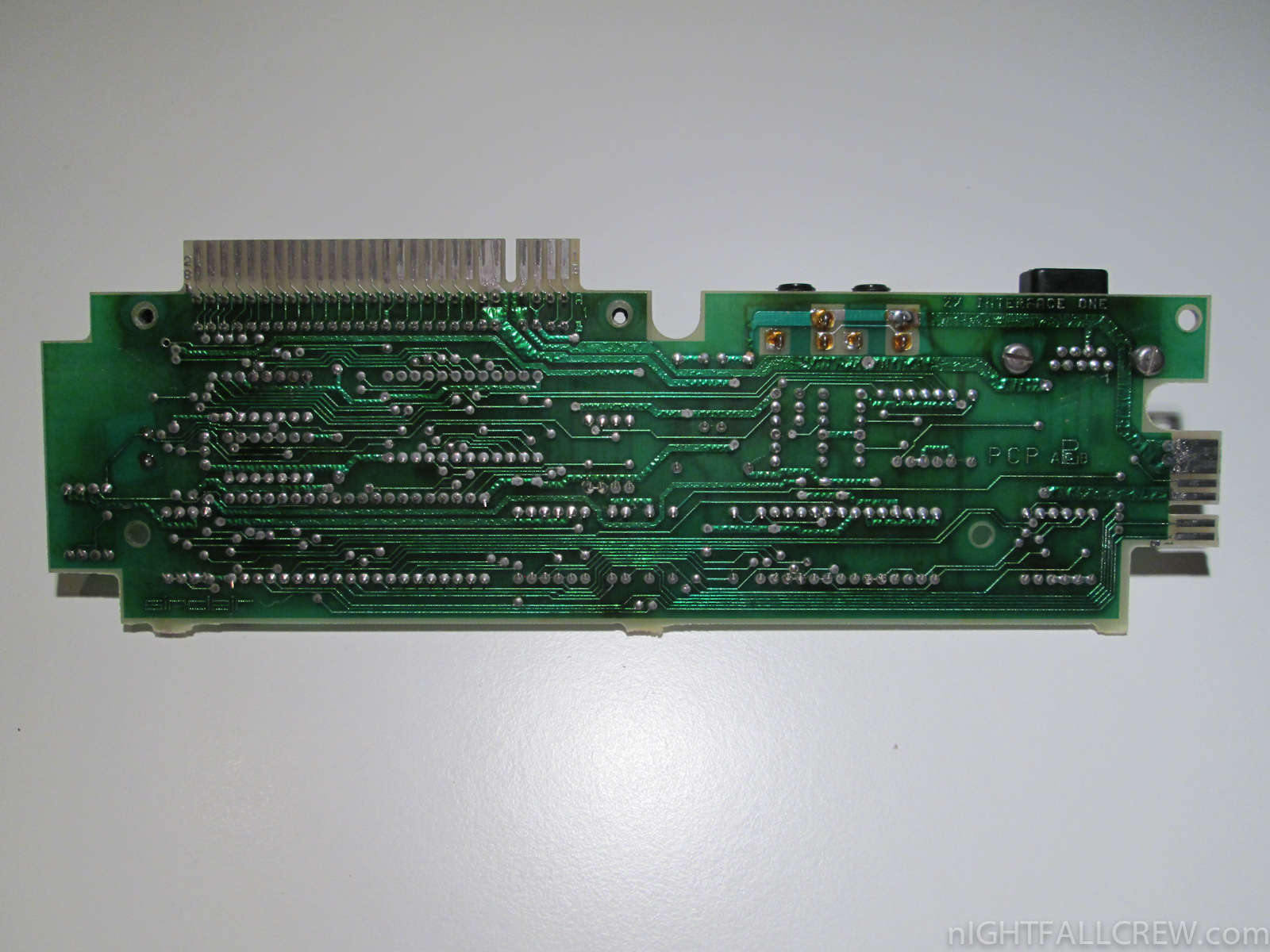

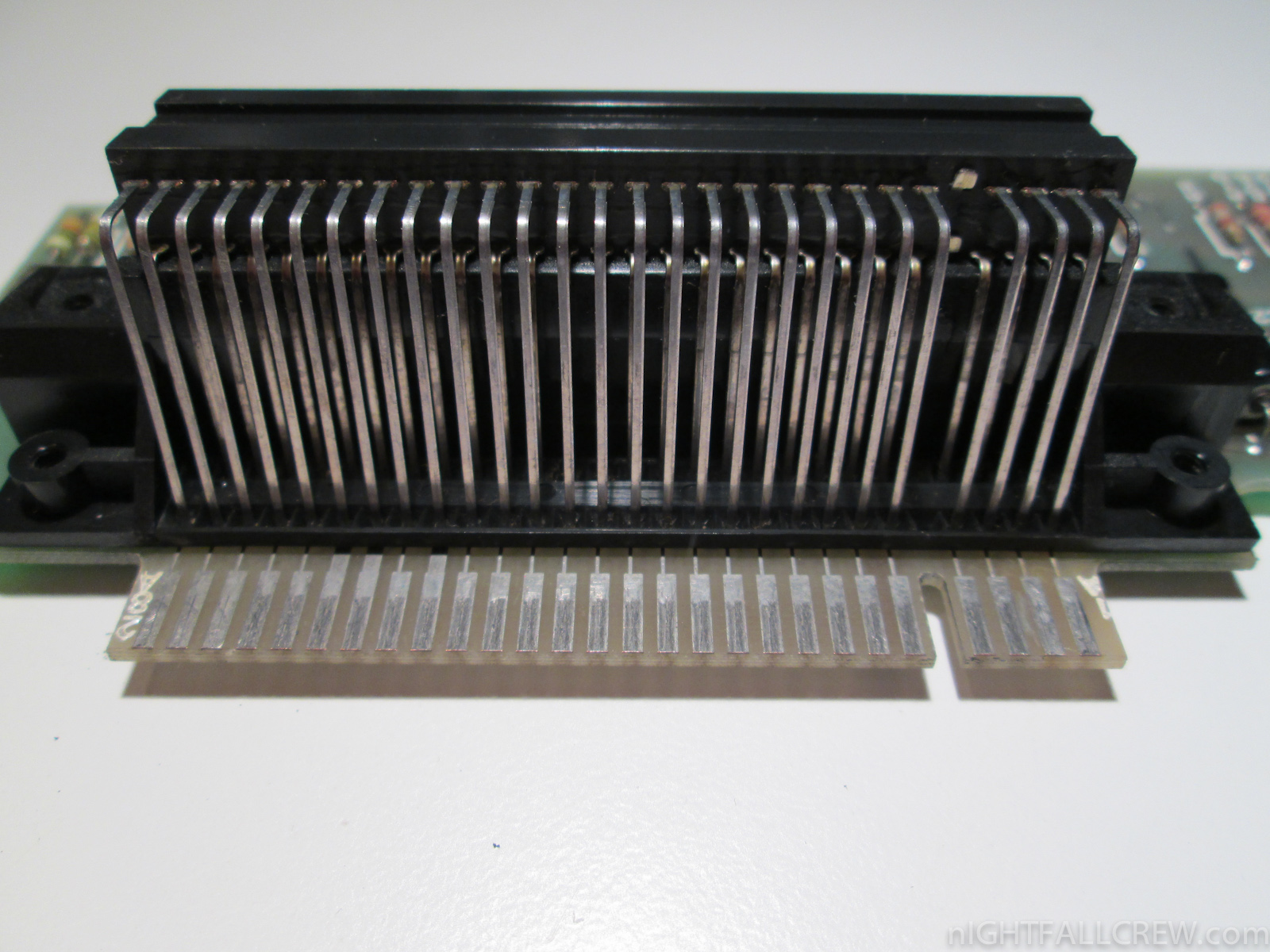

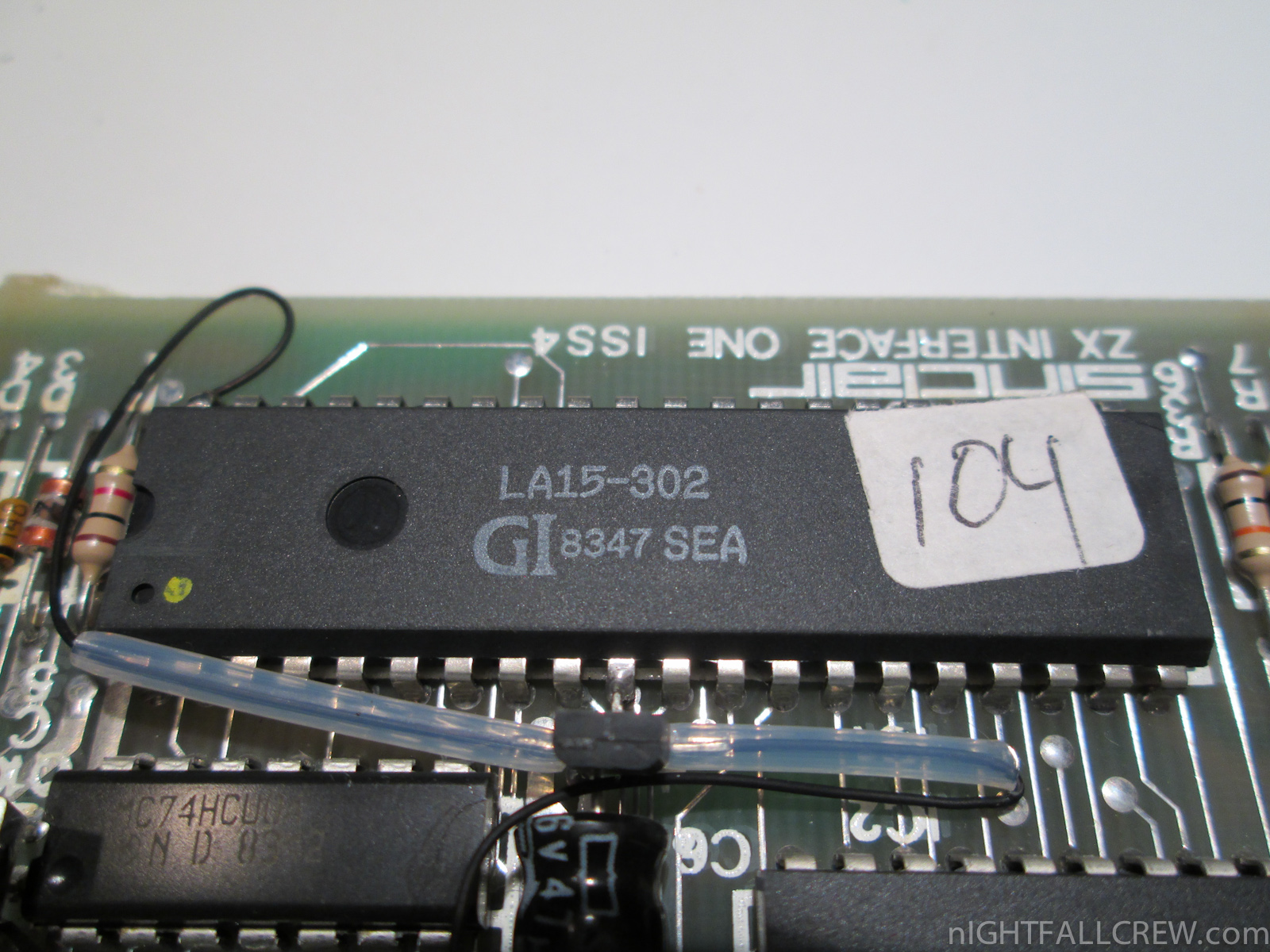

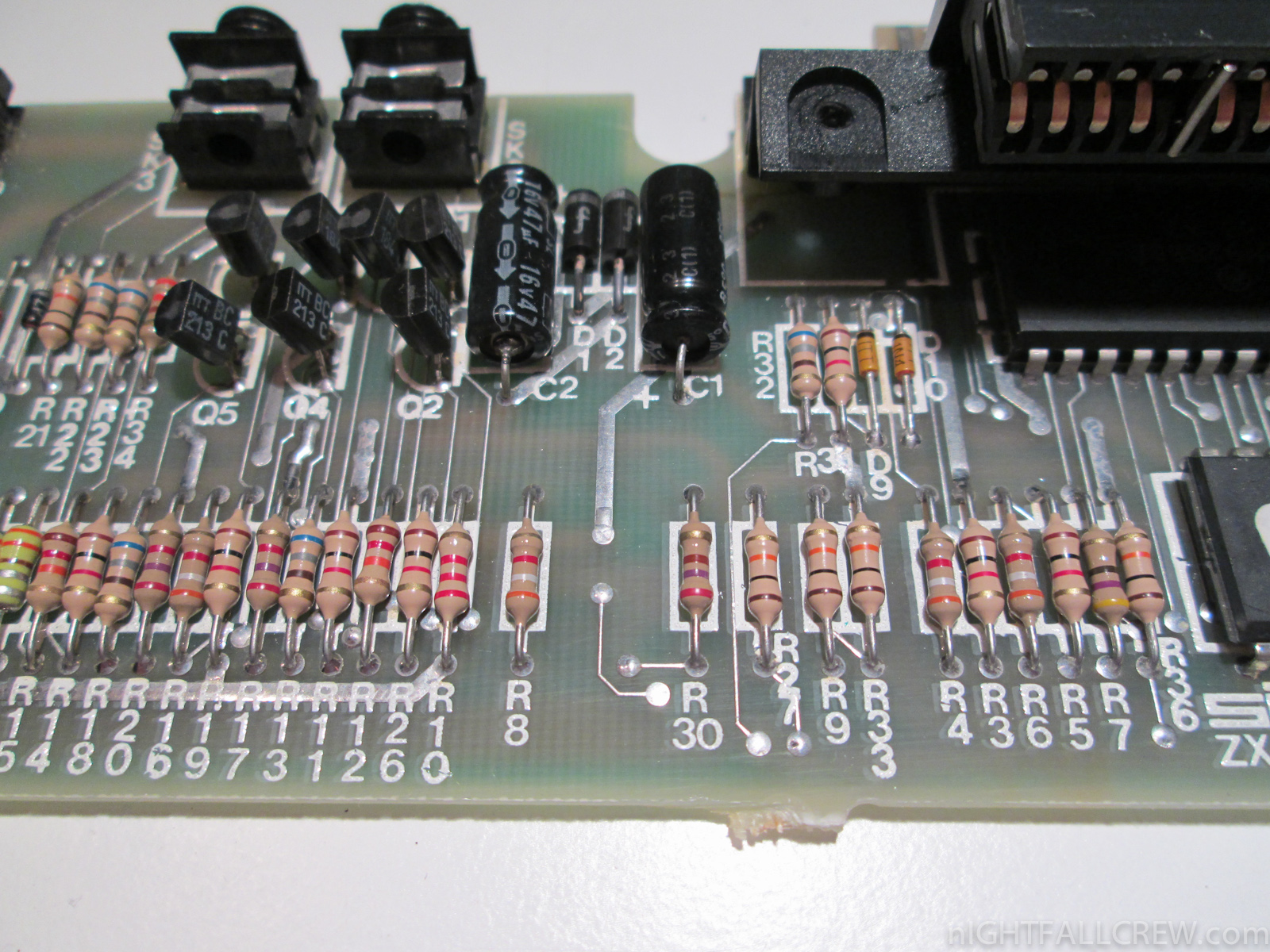

ZX Interface 1

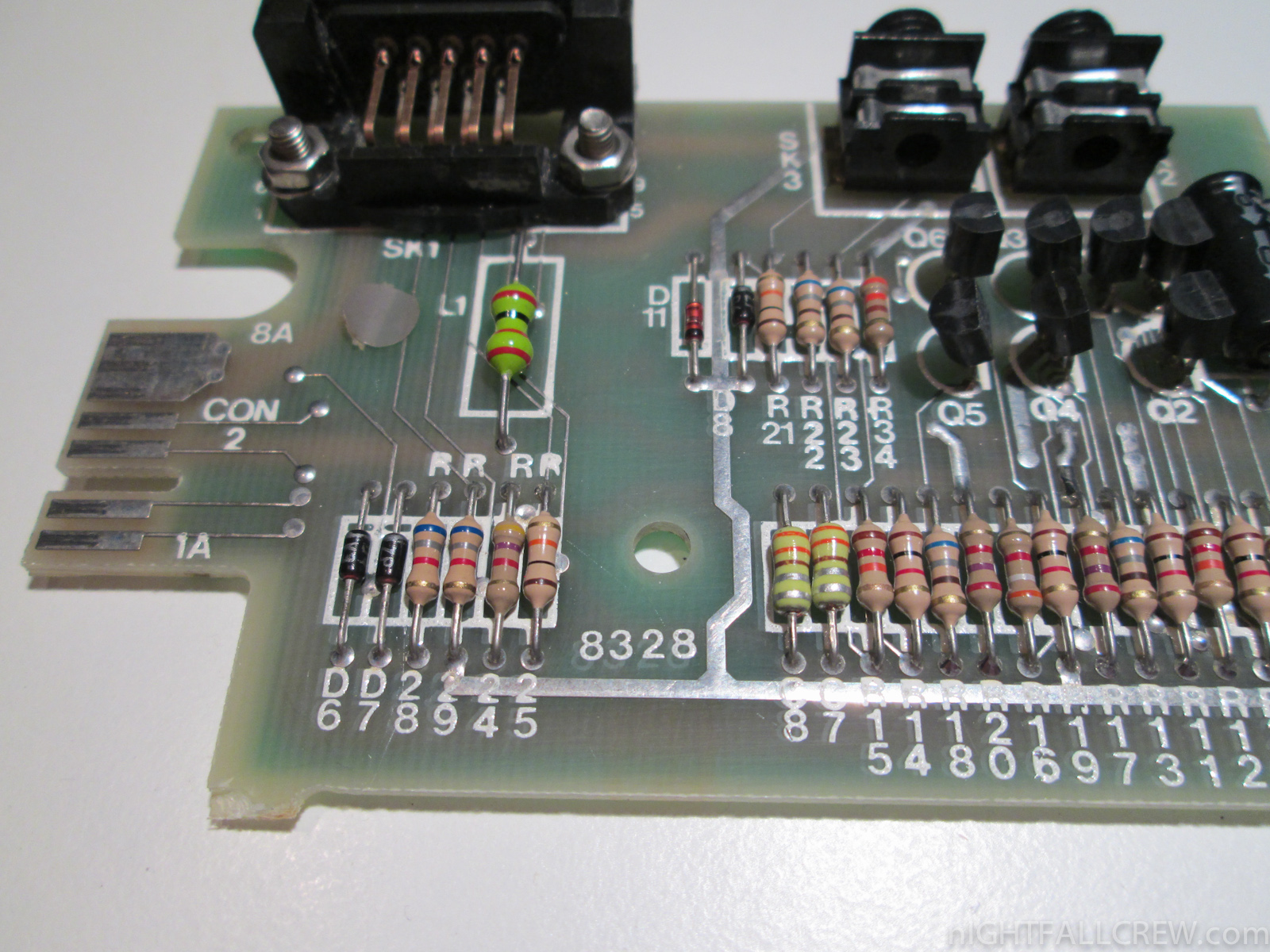

A peripheral from Sinclair Research for its ZX Spectrum home computer, the ZX Interface 1 was launched in 1983. Originally intended as a local area network interface for use in school classrooms, it was revised before launch to also act as the controller for up to eight ZX Microdrive high-speed tape-loop cartridge drives. It also included a DE-9 RS-232 interface capable of operating at up to 19.2 kbit/s — a rare instance of Sinclair using an industry-standard connector. At hardware level it was mainly a voltage adapter, the serial protocol being implemented in software by bit-banging. This led to problems when receiving data, but not when transmitting.

A wedge-shaped device fitting underneath the ZX Spectrum, ZX Interface 1 contained 8 kB of ROM comprising the control software for the Microdrives, RS-232 port and network interface. This extended the error handler in the Sinclair BASIC to allow extra keywords to be used. As this became an official standard, other developers quickly used this mechanism to create language extensions to Sinclair BASIC.

Download: ZX Microdrive and Interface 1 Manual (PDF) (1098)
