The Tandy Radio Shack TRS-80 DT-1 is a video terminal. It is ideally suited for communications with the TRS-80 Model 16 Multi-User Office System or with other host computers. With a low-cost Tandy acoustic coupler it can also access time-sharing information networks.

Gallery:

◄12

State-of-the-Art Design:

Unlike many terminals, you can easily set up and change the configuration on your DT-1 from the keyboard. A revolutionary non-volatile memory that retains your terminal configuration even with power off and without battery backup!

Multiple Emulation Modes:

The DT-1 is completely code compatible with four standard terminal protocols.

• Televideo 910
• Lear Siegler ADM-5
• ADDS 25
• Hazeltine 1410

The 30.5 cm diagonal CRT displays 24 lines of 80 upper and lower case characters per line. Special single-character symbols are used to display control characters.

Dual-Speed Repeat:

Any character can be repeated by merely holding down the desired key. After several characters are repeated, the DT-1 will automatically repeat the characters at a faster rate.

Two Printer Ports:

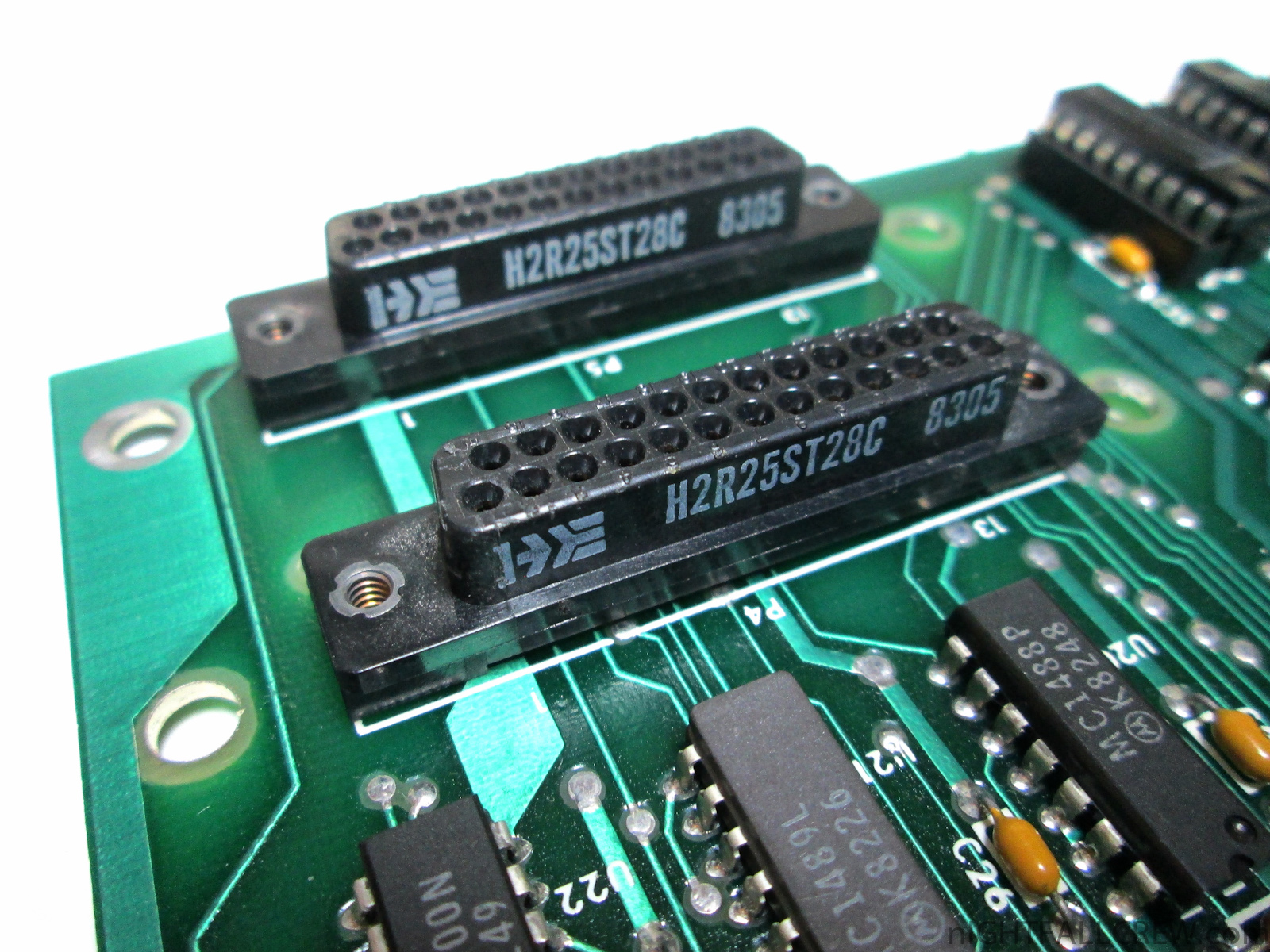

The TRS-80 DT-1 can be equipped for hardcopy output by connecting a printer to the built-in RS-232C serial interface or parallel interface.

Special Features:

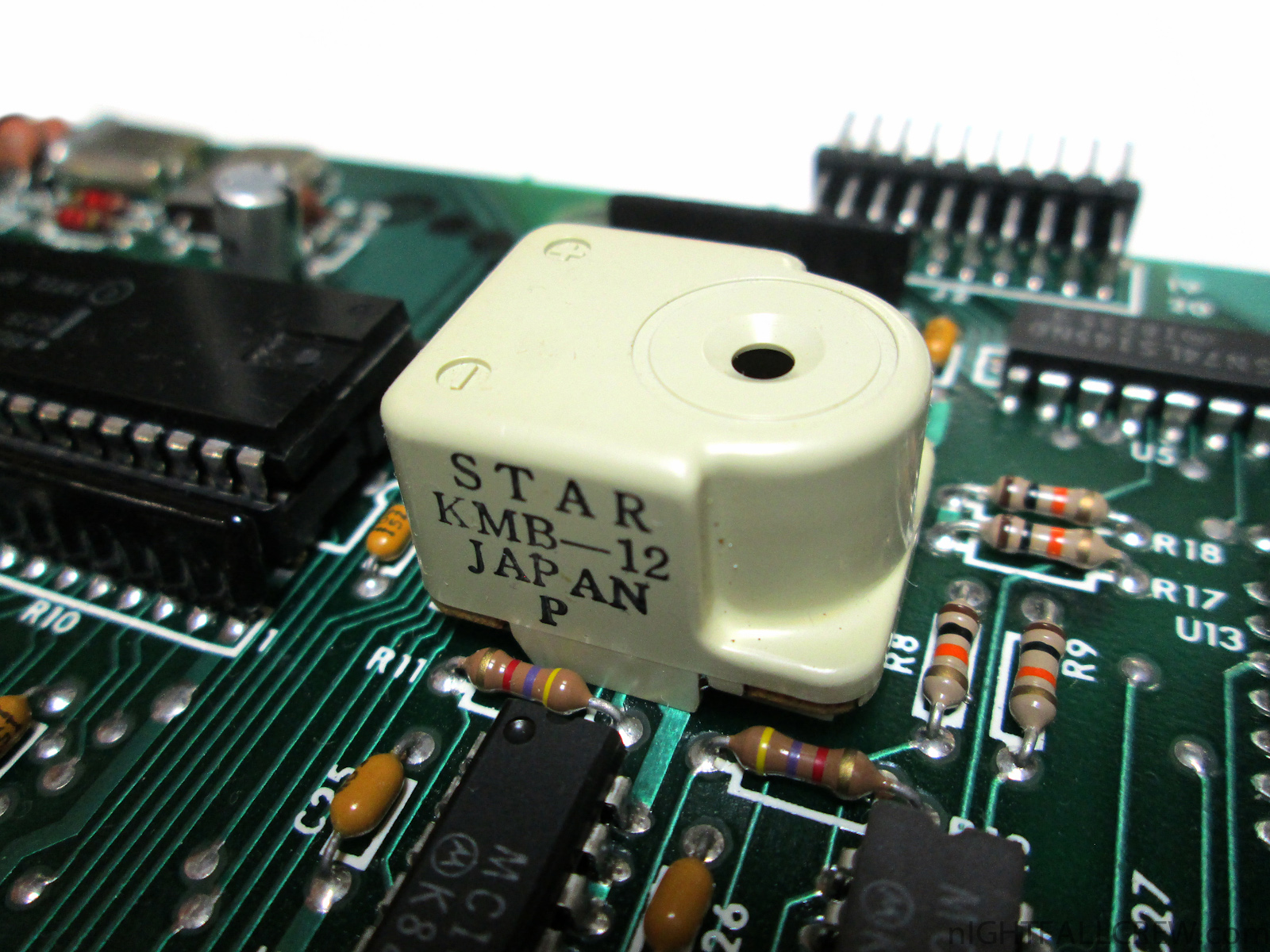

A local monitor mode lets you enable printer ports and position the cursor using local control and escape modes. The carrige return key can be programmed with or without a line feed. Control key termination codes are also user programmable. An electronic bell is standard.

TRS-80 DT-1 Highlights:

• Data Transfer: 75,110,150,300,600,1200,2400,4800,9600,19200
• Cursor: Four keyboard-selectable types: Steady, Blinking Block, Steady or Blinking Underline.
• Video Attributes: Normal, reverse, Invisible, Blink, Underline and Half-Intensity Video.

Download:

• Tandy DT-1 Owners Manual (2729)
• Tandy DT-1 Service Manual (1654)
• Tandy DT-1 Advertisement (1432)
• RSC-9 Computer Catalog (1574)
• Tandy DT-1 Video Monitor Service Manual (1608)
