Repair Commodore Amiga 600 (White Screen)

July 9th, 2014 Leave a comment Go to comments
Repair Commodore Amiga 600 (White Screen)

Gallery of the repair:

Repair Commodore Amiga 600 (White Screen)

Defect:

  • White Screen.

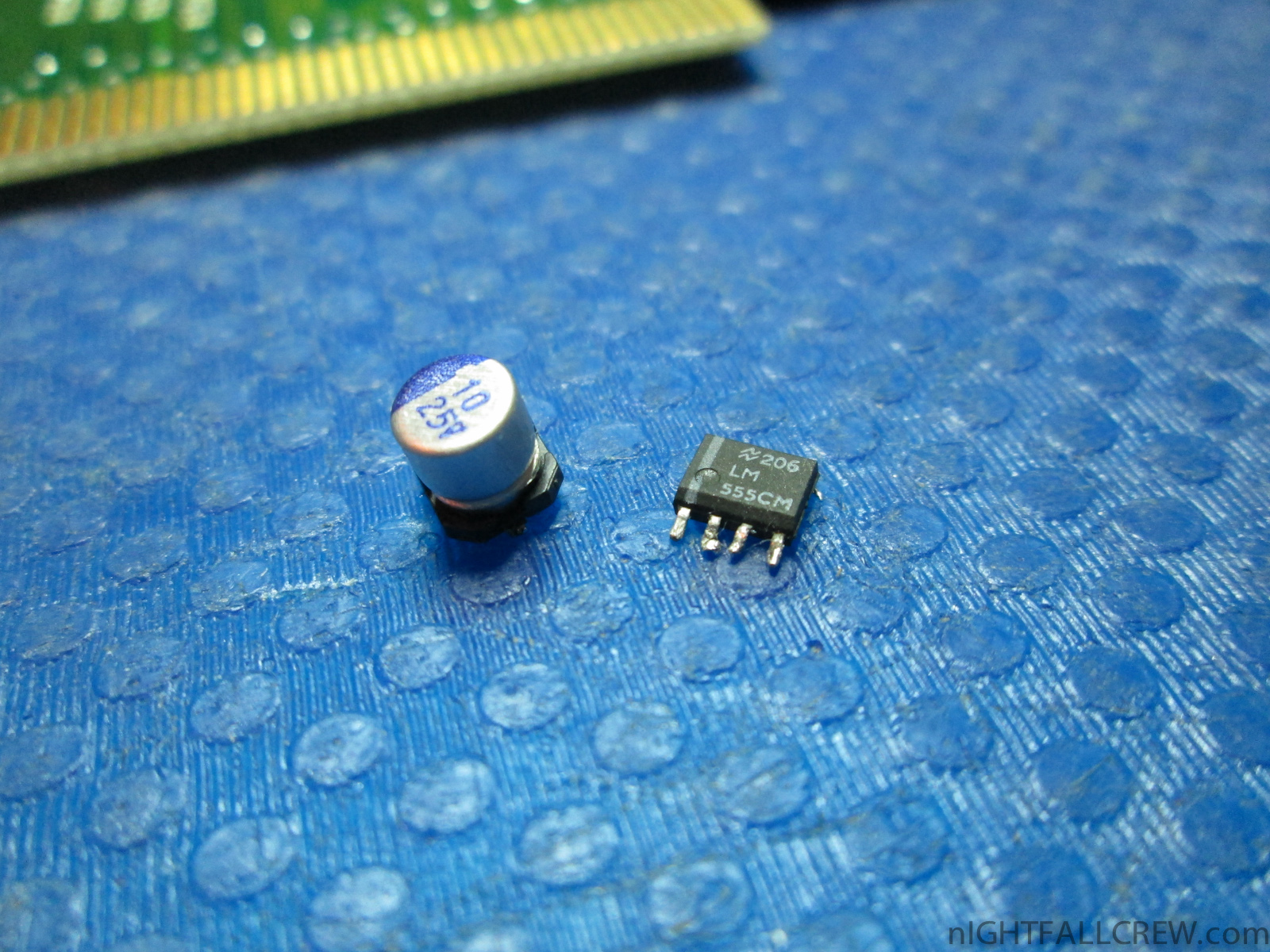

Replaced parts:

  • 1 x LM555 (SMD)
  • 1 x Electrolytic Capacitor 10uf 25v

Note:

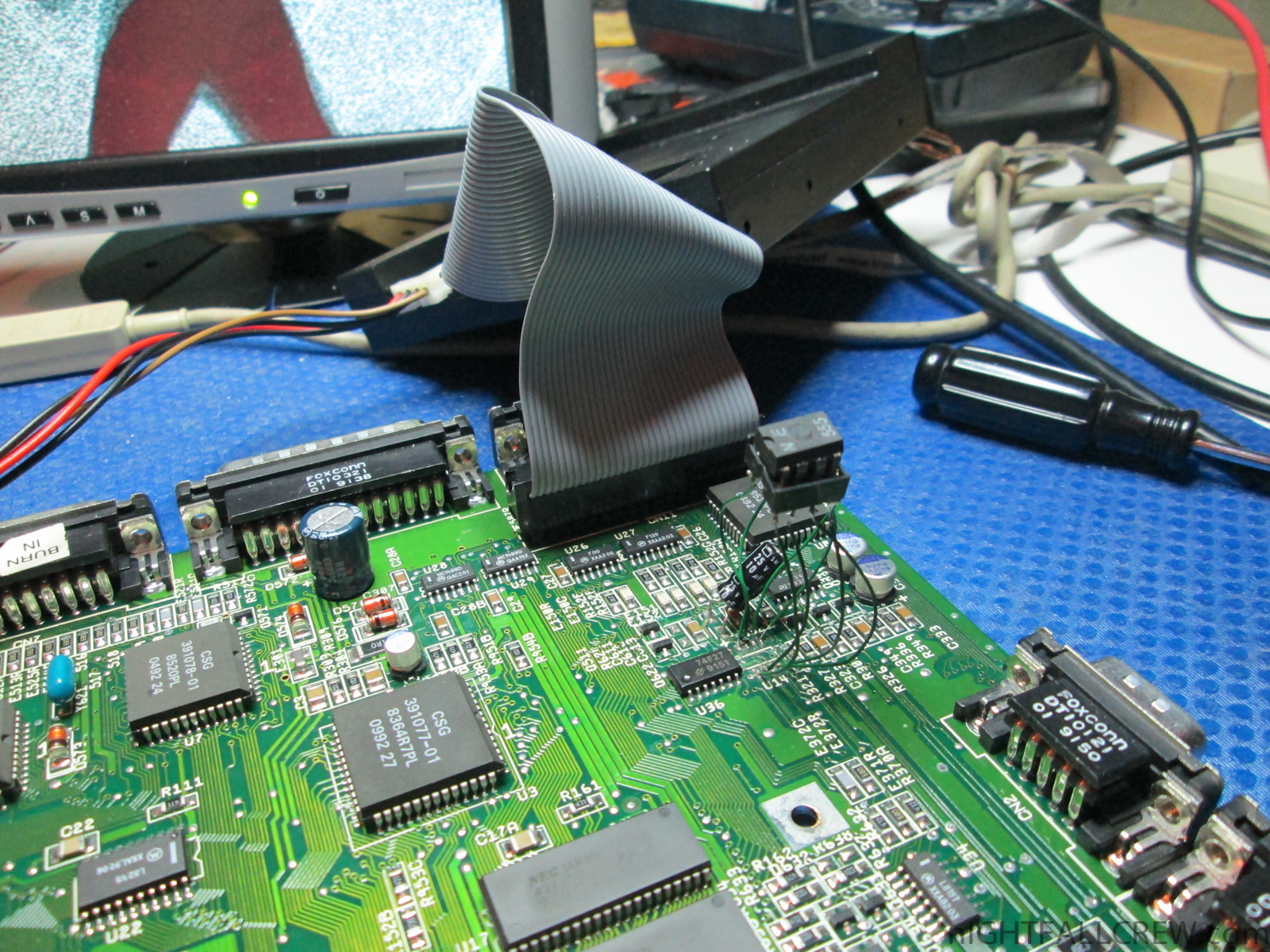

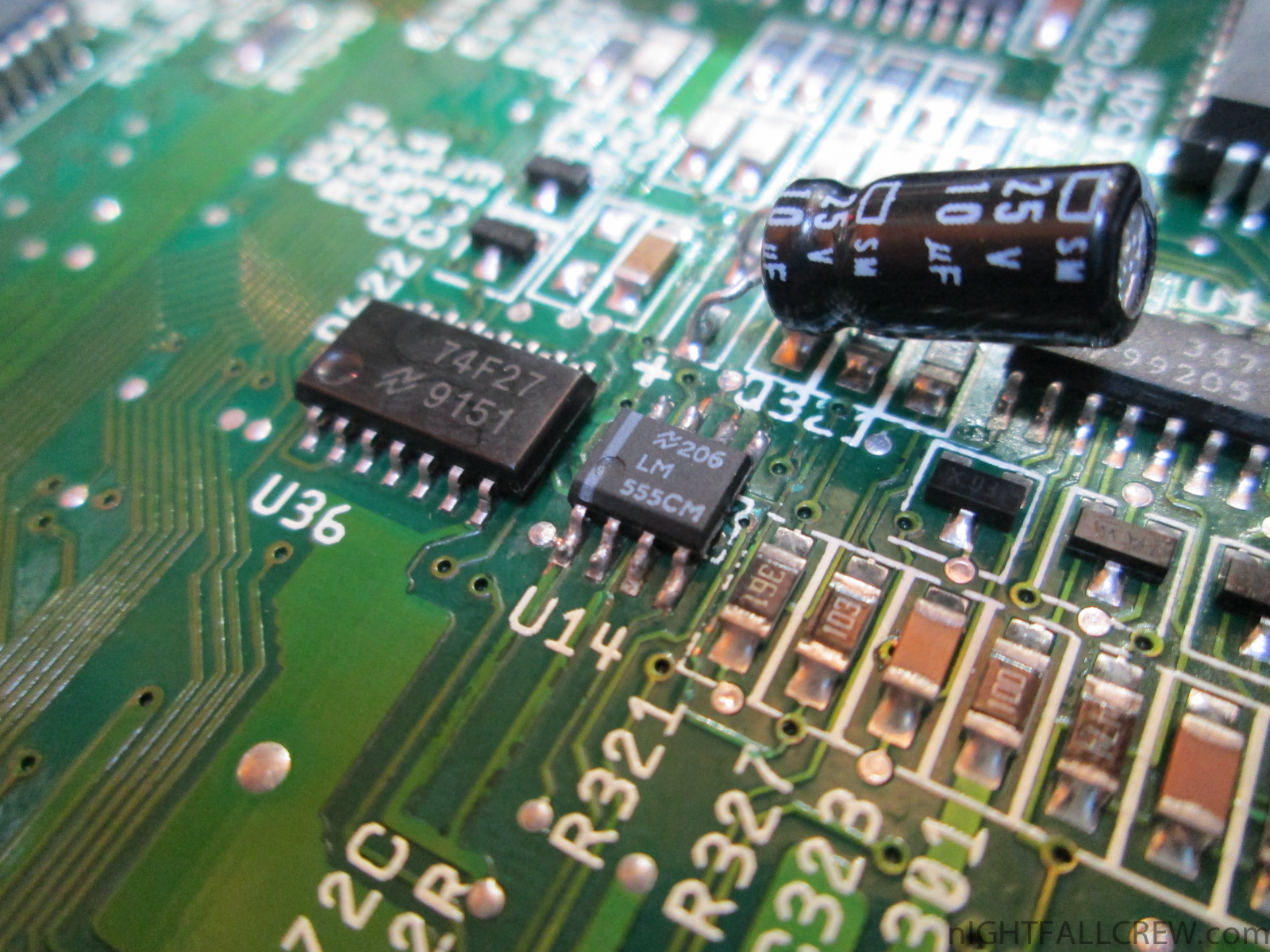

I have thought it was a problem of RAM (U17) since i have measured oddities but the problem instead is a capacitor of 10uF, dead LM555 (smd) and some pcb tracks corroded.

Categories: Projects / Repairs, Today, Various
  1. Matteo
    June 12th, 2016 at 10:03 | #1
    Reply | Quote

    Ciao, complimenti per l’ottima riparazione!
    Anch’io ho un problema simile, mi compare schermo bianco all’avvio con un lieve lampeggio del led power ed un ticchettio dagli altoparlanti.
    Hai qualche suggerimento da darmi per trovarne la cousa?
    Grazie
