Irem Kung-Fu Master Arcade Game PCB (no audio) Repaired

May 14th, 2013 Leave a comment Go to comments

This Arcade Game had a problem on the audio stage (no audio).

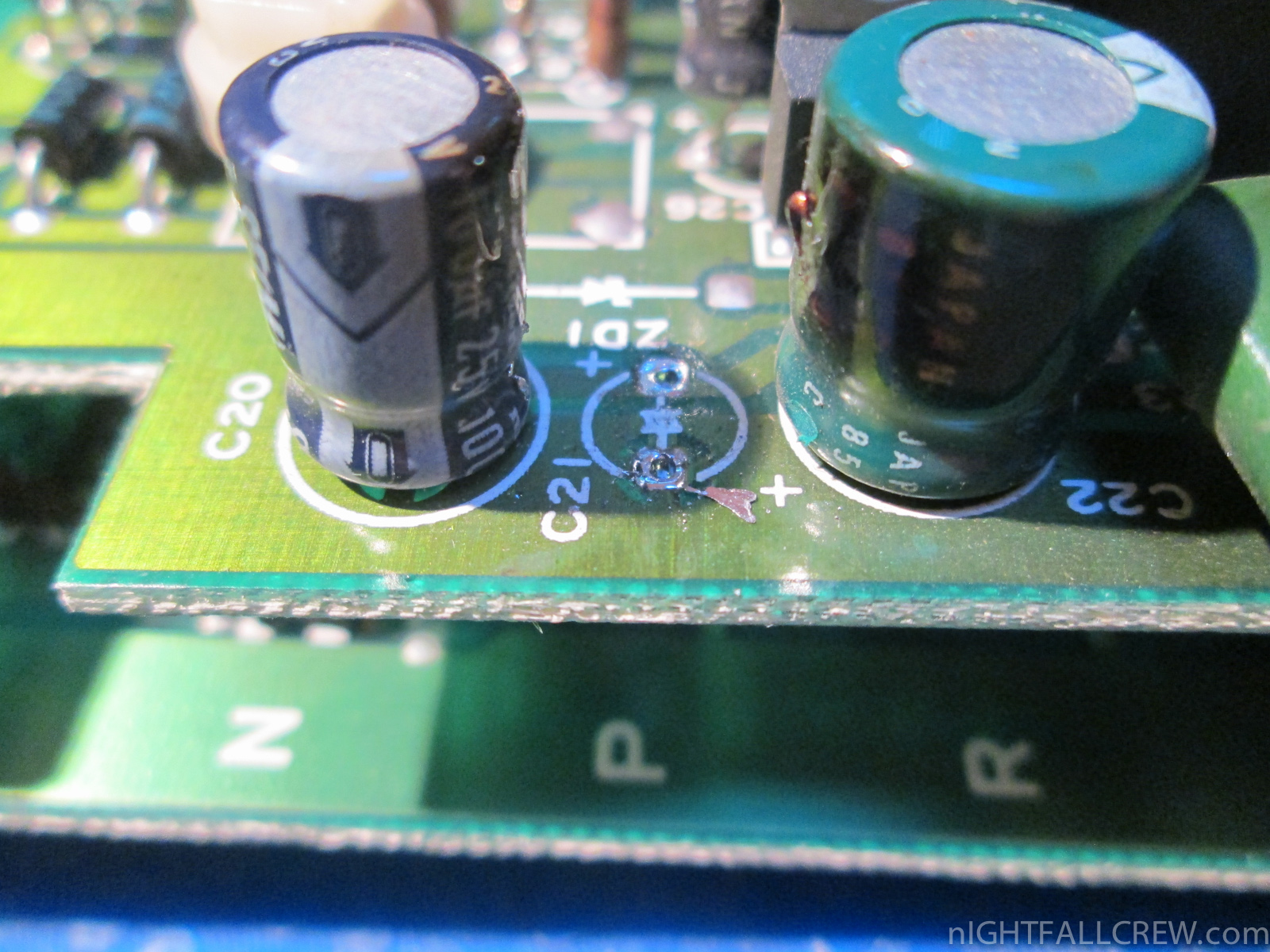

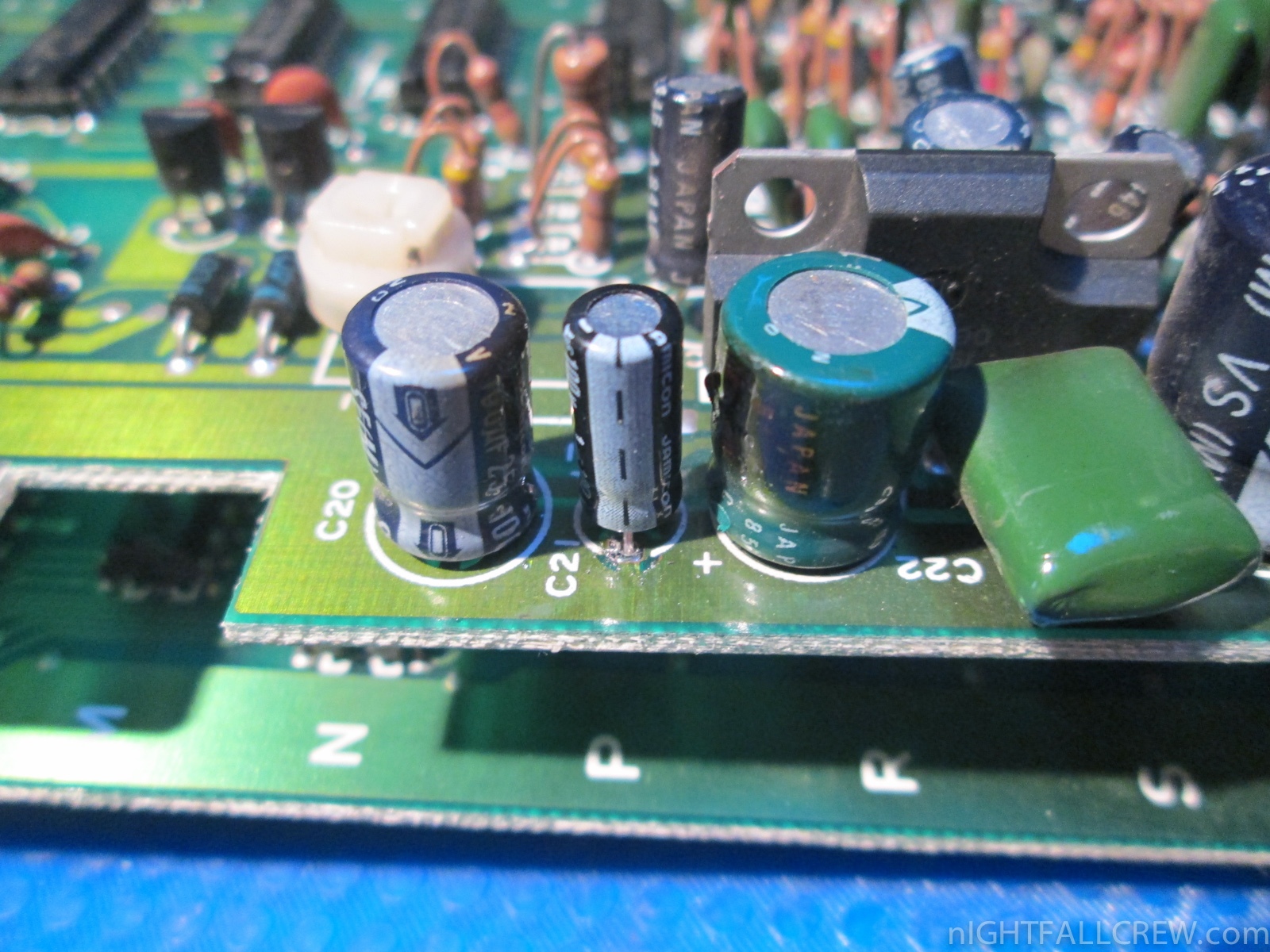

The problem was caused by a tantalum capacitor exploded, i don’t have found a schematic of this game then i have replaced the filter capacitor for the 12 volts of the final amplification stage with a new one of 1uF 100v.

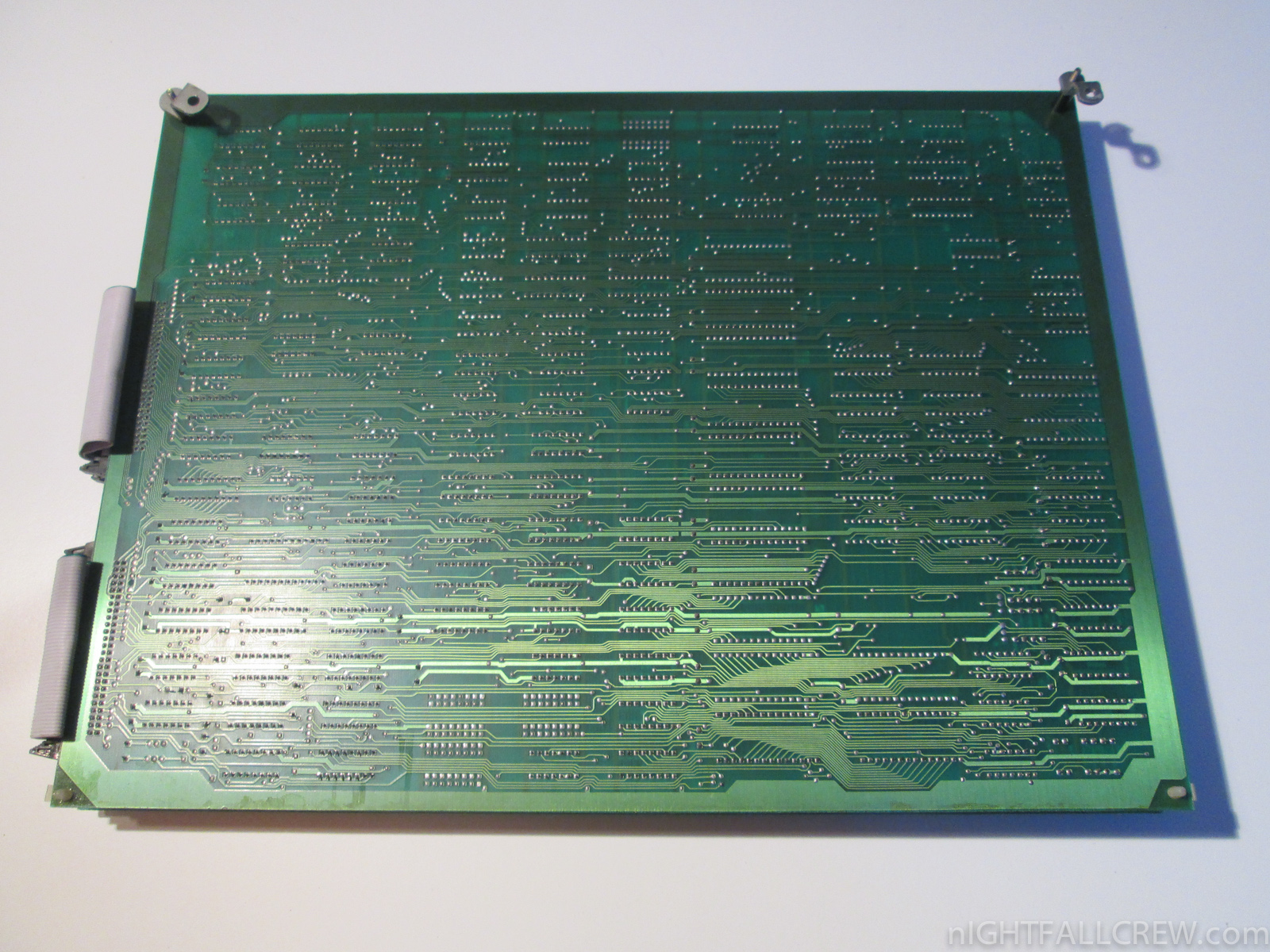

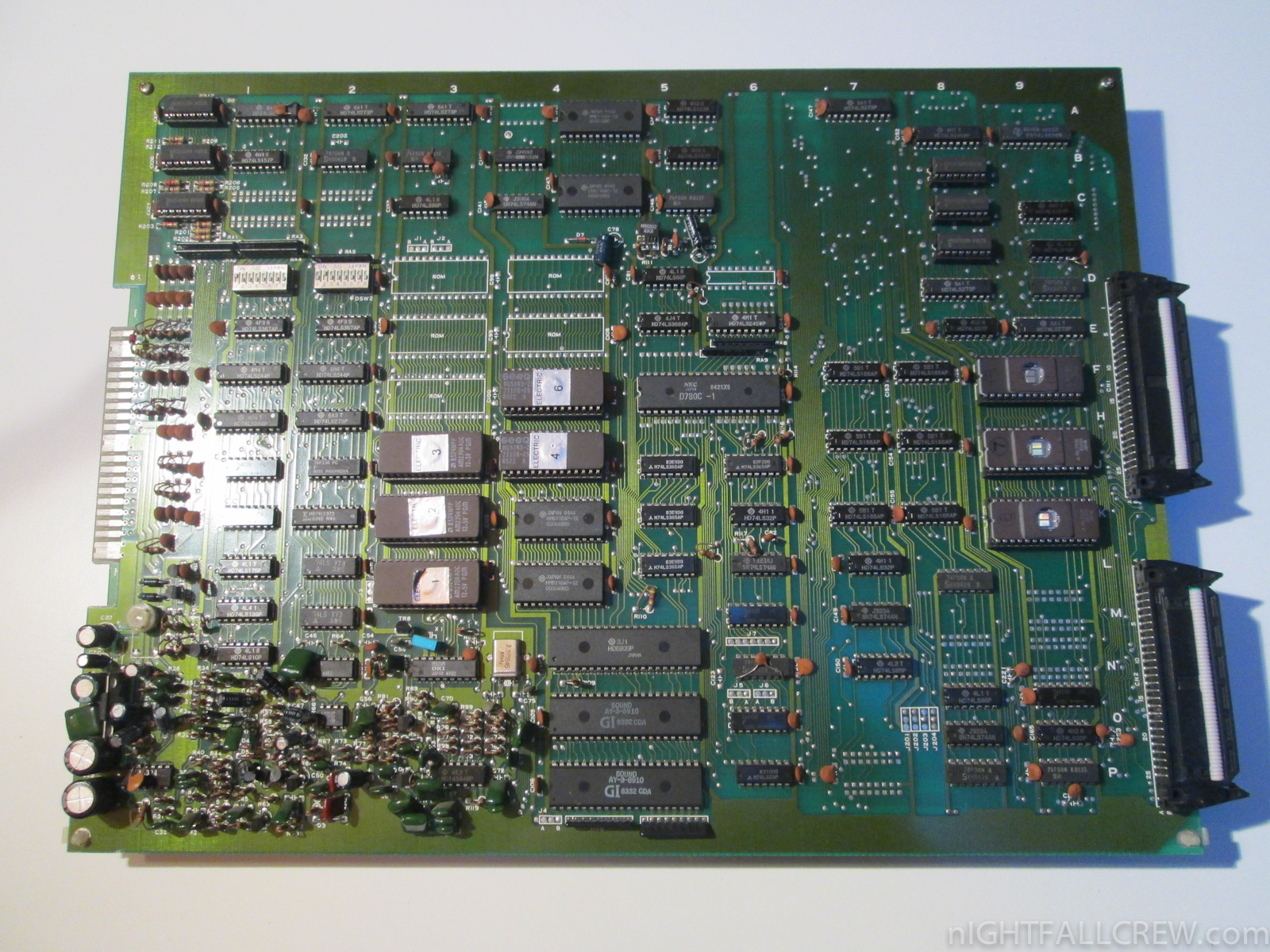

Irem Kung-Fu Master Arcade Game:
