Repairing and Cleaning a Commodore CBM 8296

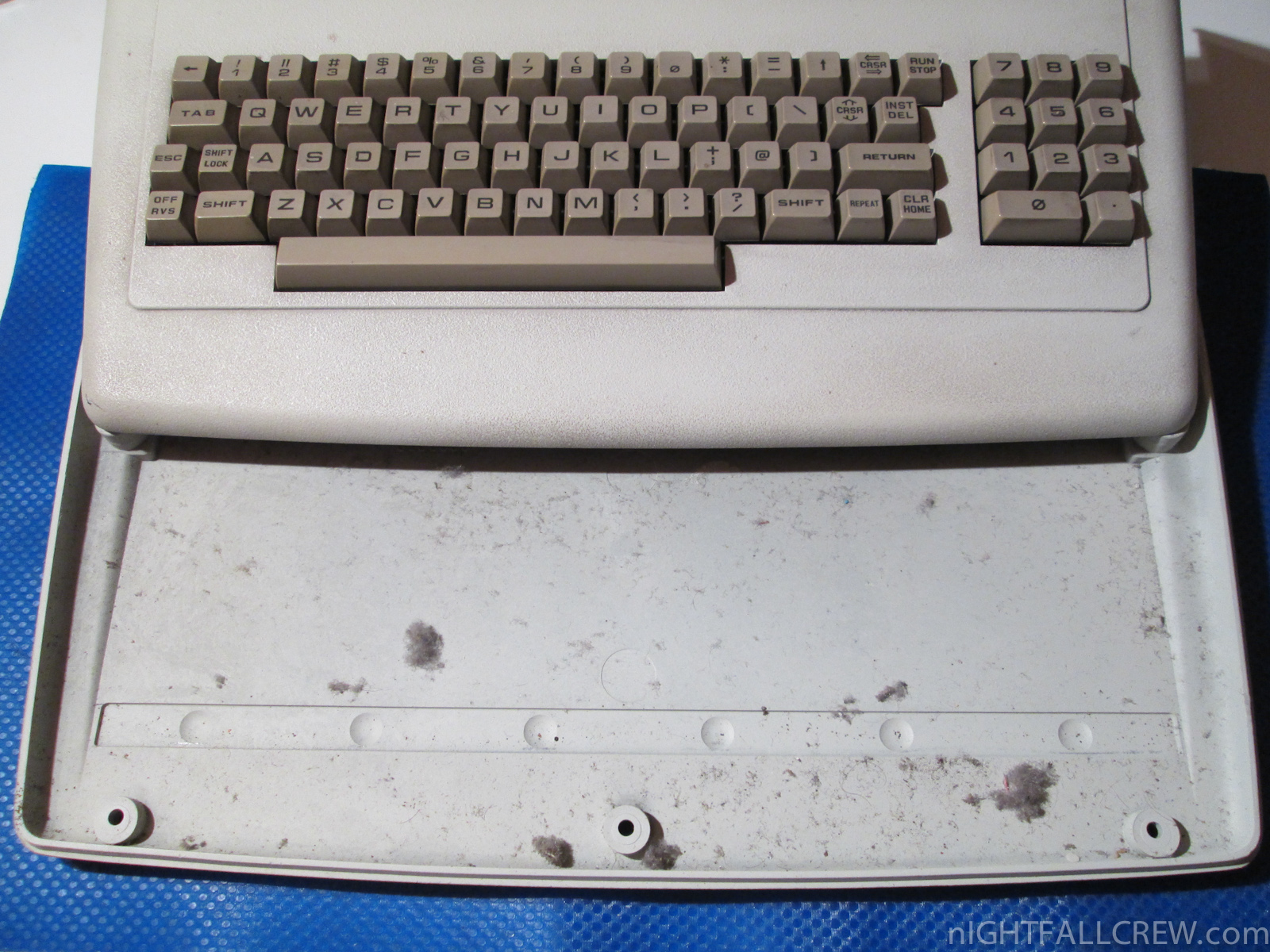

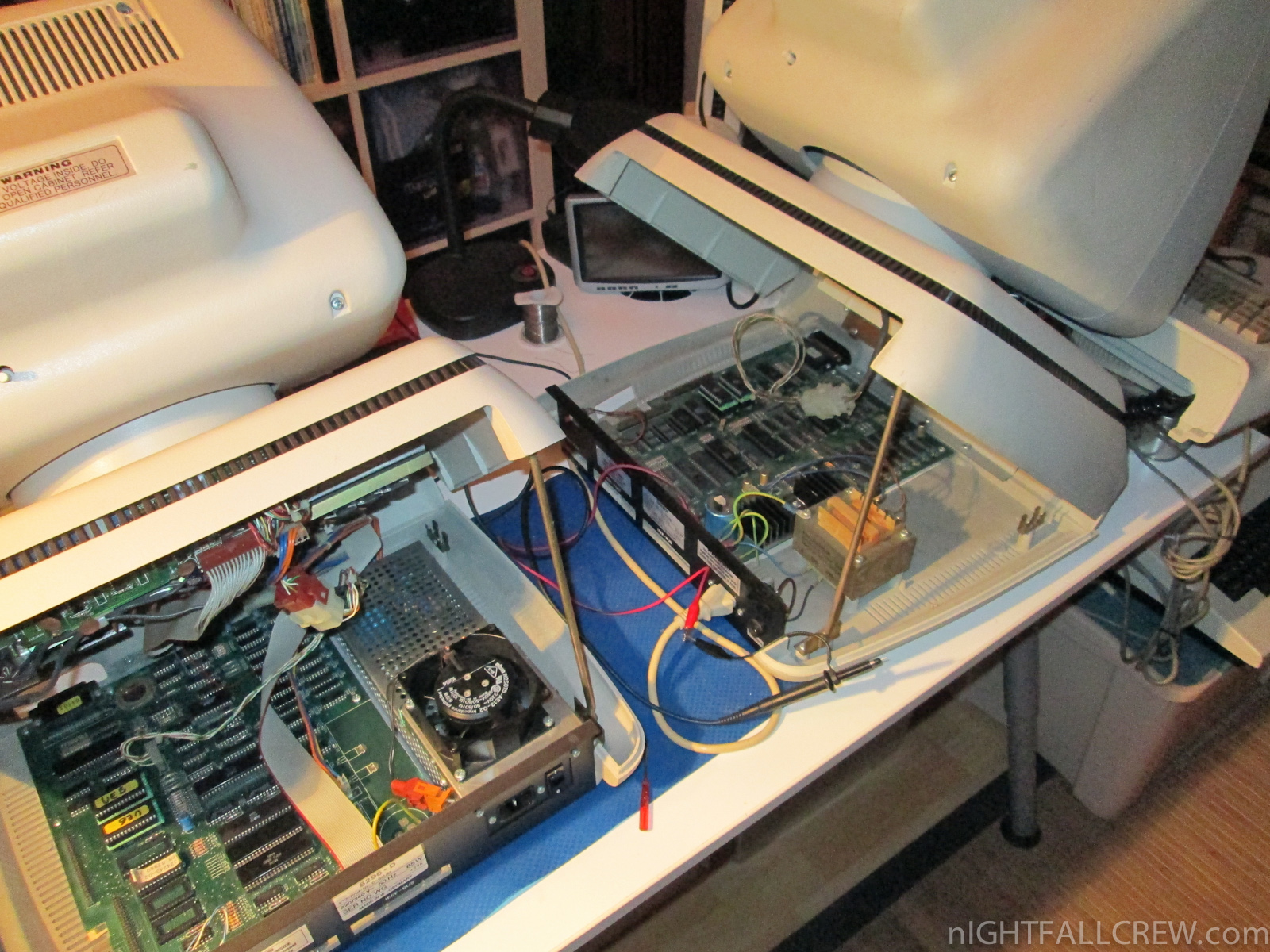

I received this computer to be repaired for a friend some days ago. The computer displays only a black screen and some times a random character without any sound beep at the startup boot.

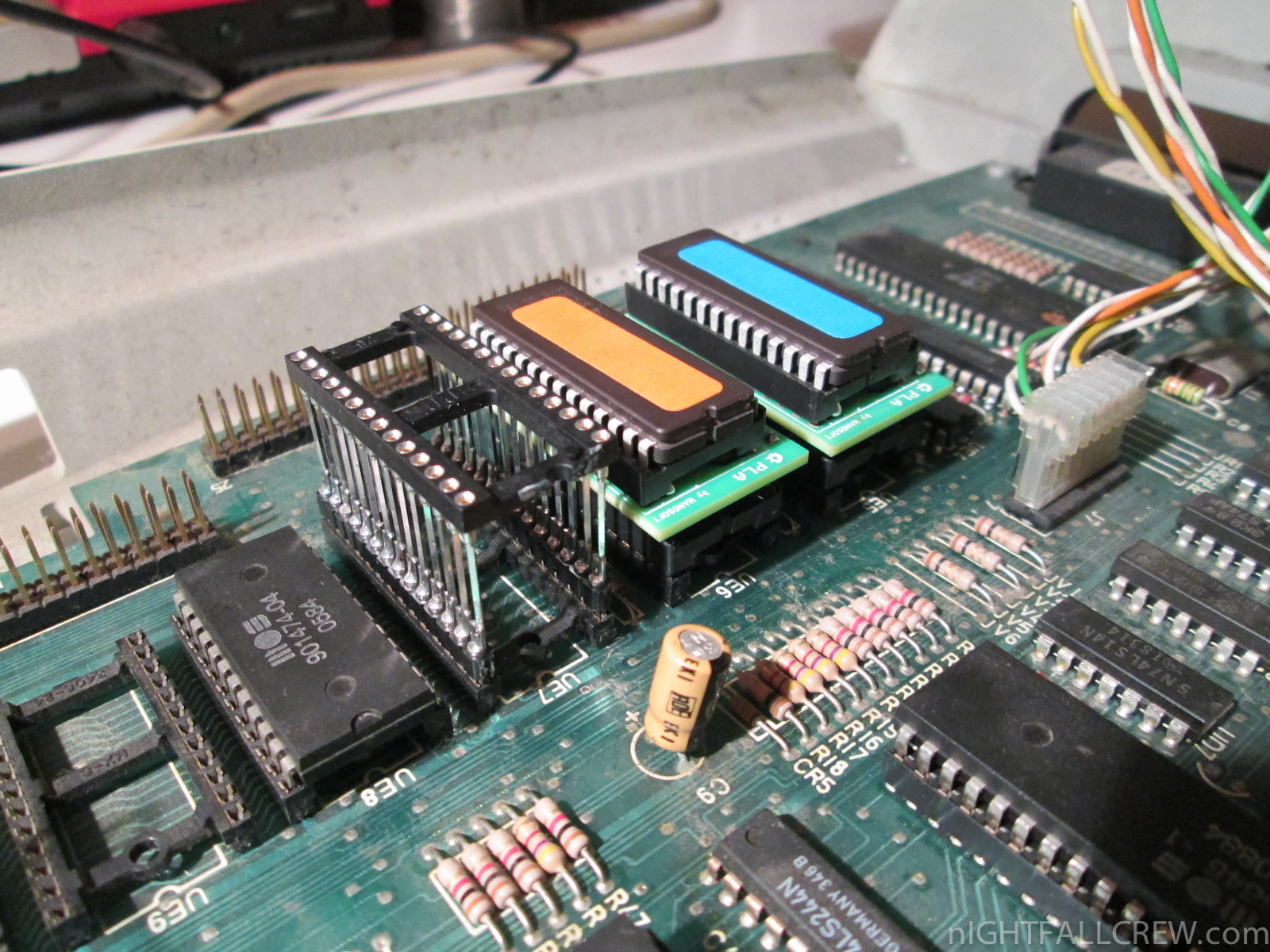

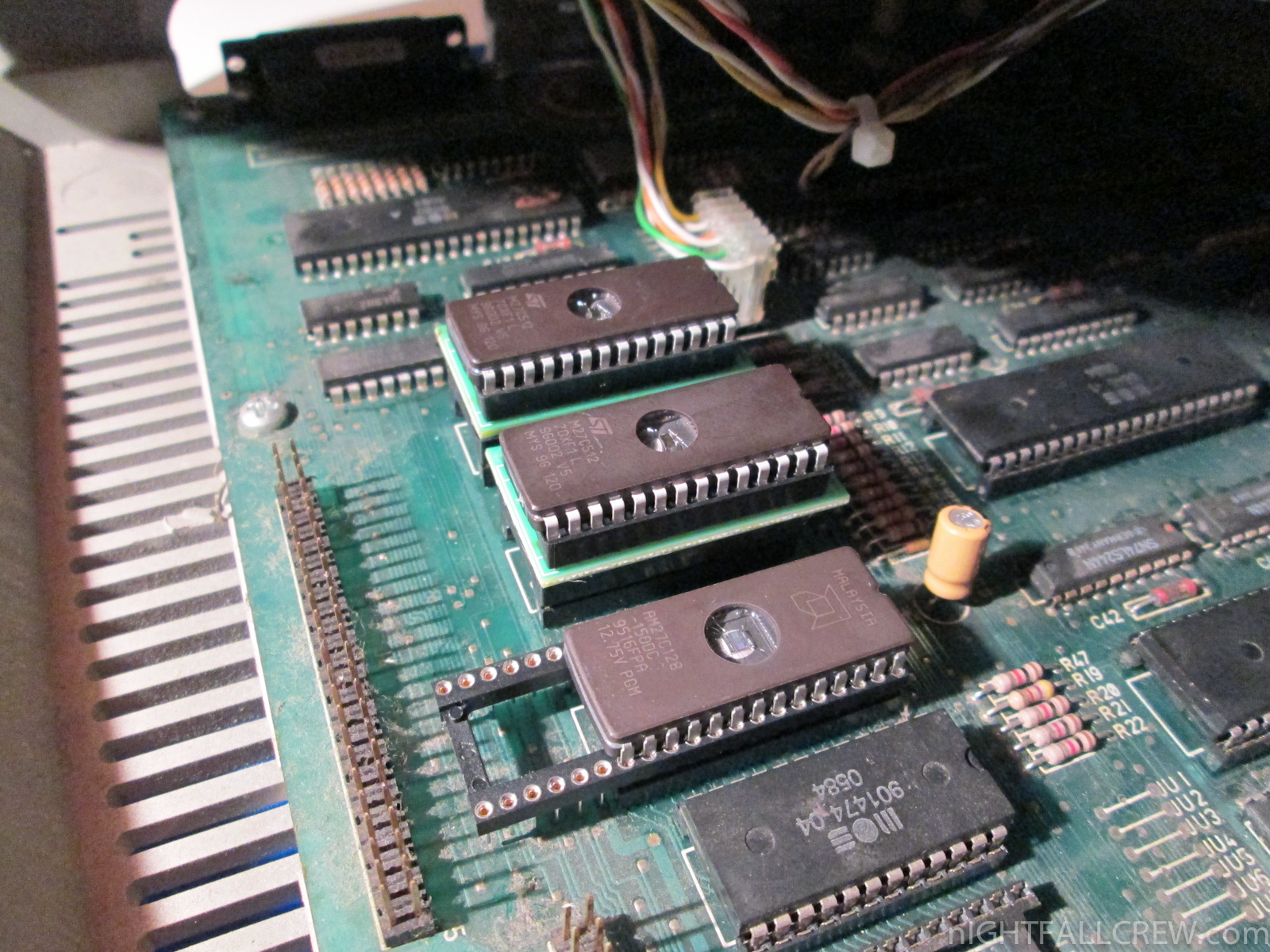

I have replaced the PLA IC 324745-01 (UE5) and 324744-01 (UE6) with two EPROM 27C512 70ns (suitably programmed), the Universal PLA adapter was kindly donated by Manosoft.

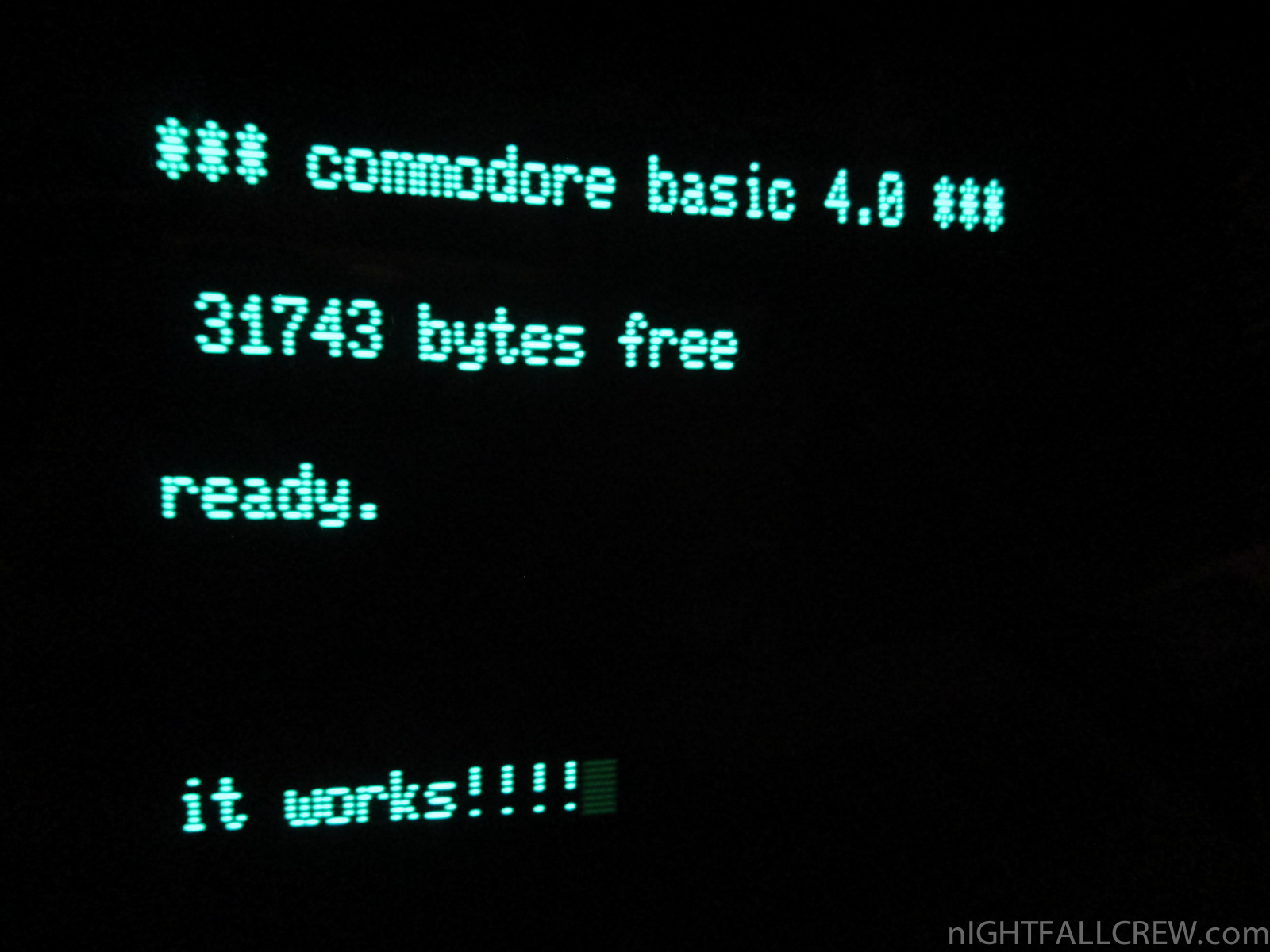

The computer also had another defect, apparently the fault was not only in the two PLA. The computer starts with the classic beep but the screen remain black, the faulty is the IC 6545 (CRTC) and that was replaced.

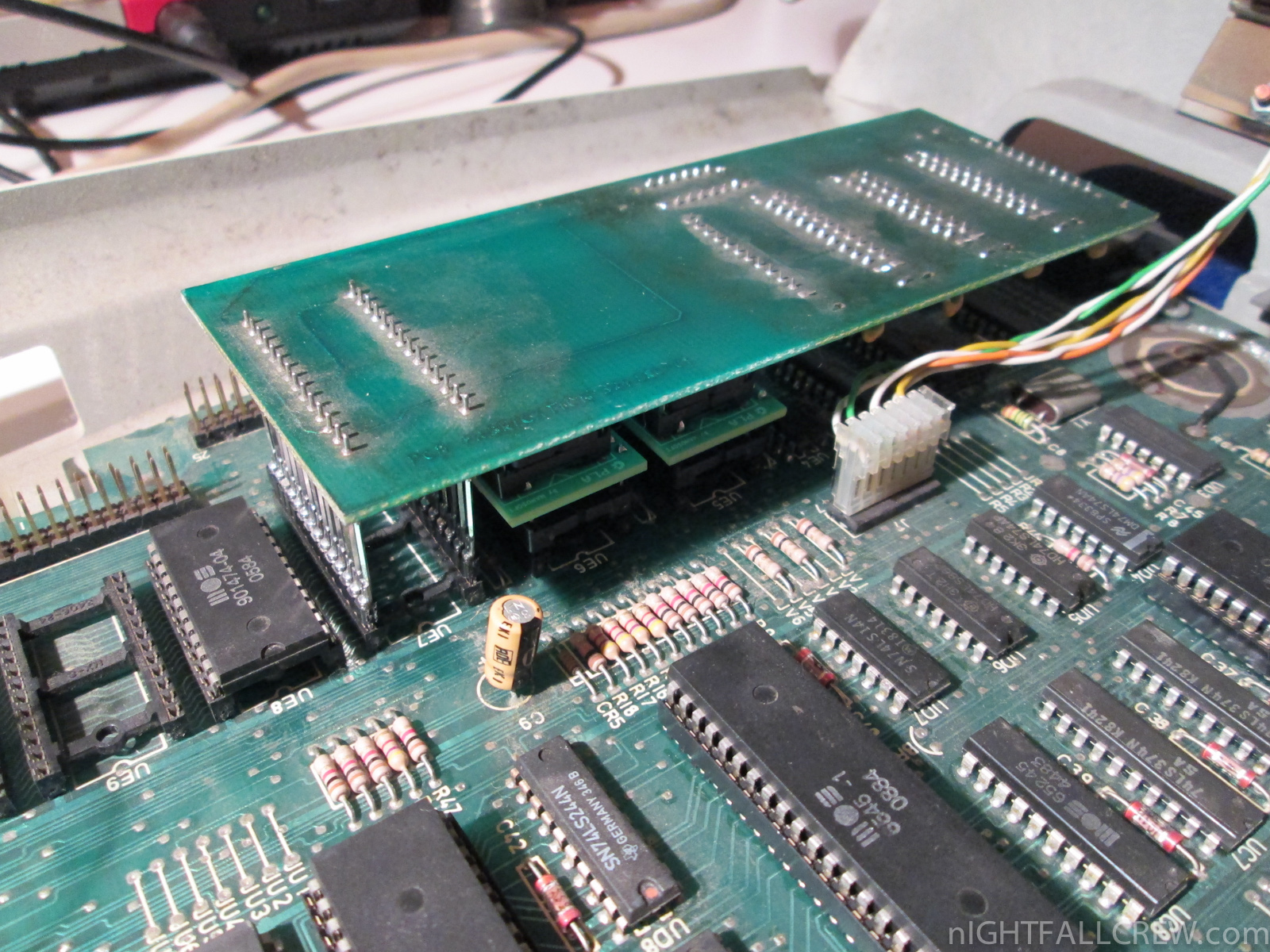

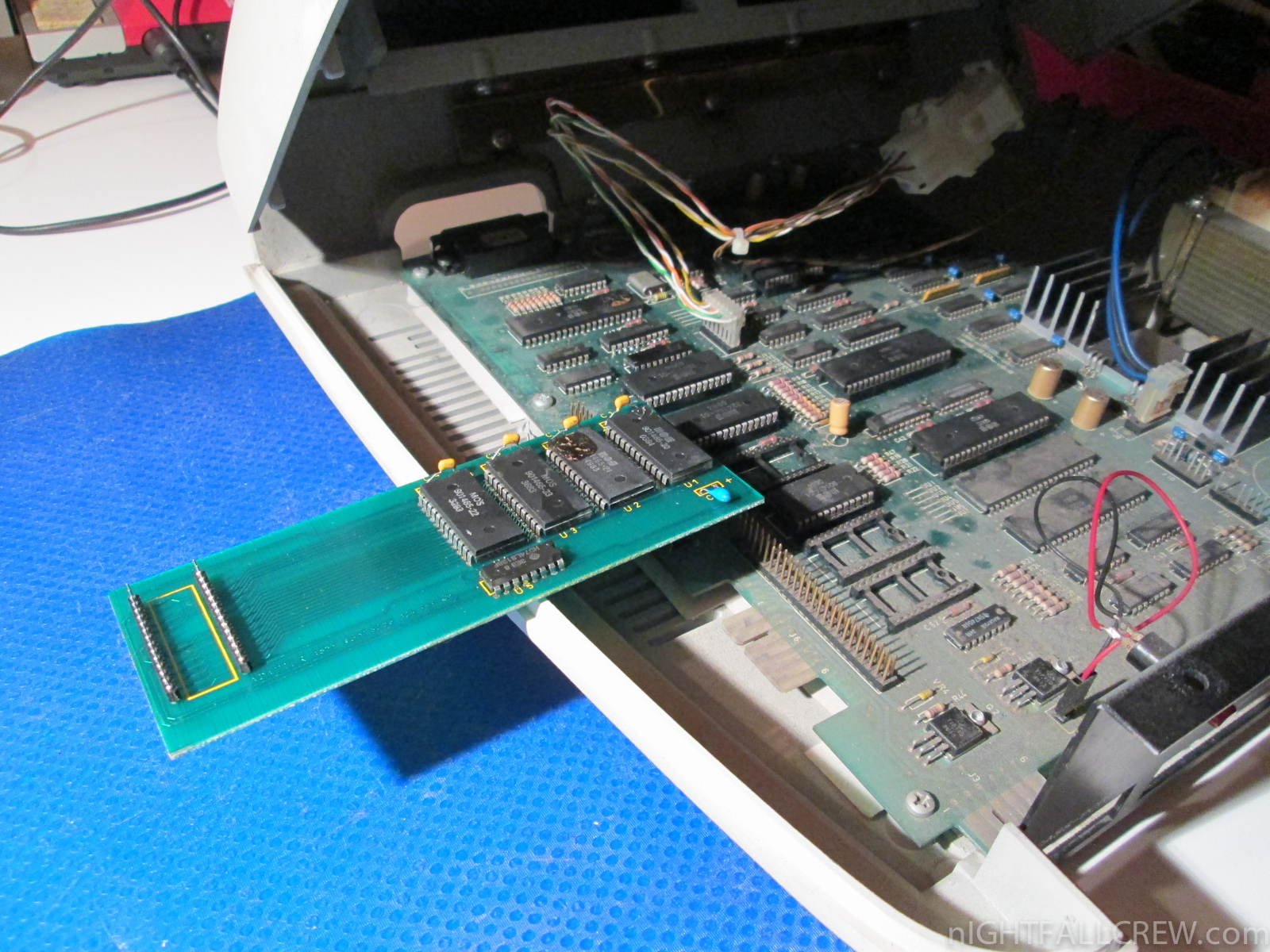

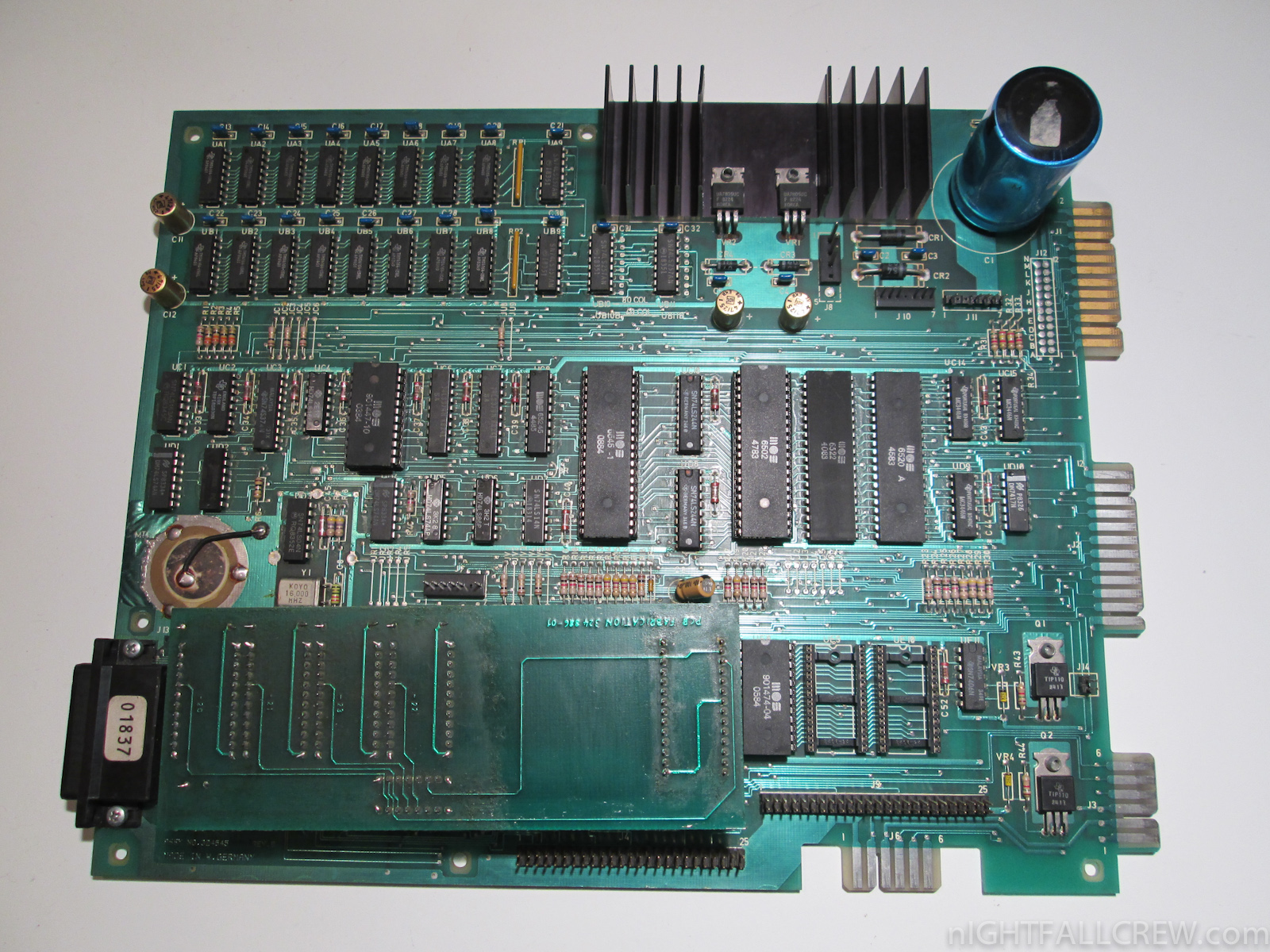

This model uses a ROM daughterboard instead of a single 23128 ROM (EPROM 27C128 pinout compatible). I have made an adapter to preserve the original state of 8296 and allow the insertion of the daughterboard after the replacement of the two PLA that are different (in size) to the original one.
