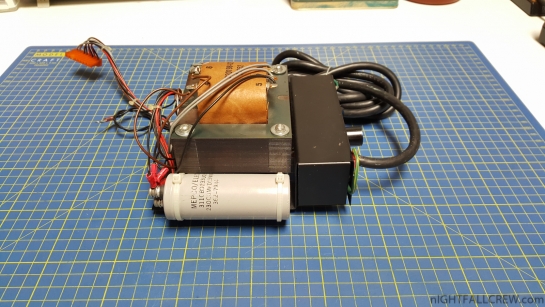

Laboratory Bench Transformer for repair Commodore CBM/PET series

May 23rd, 2016 Leave a comment Go to comments
Laboratory Bench Transformer for repair Commodore CBM-PET series

Laboratory Bench Transformer for repair Commodore CBM/PET series 2001/30xx/40xx(not fat – 8032 motherboard)

Transformer Output Pinout:

  • PIN: 4 – 6 = ~16VAC
  • PIN: 4 – 5 = ~8VAC
  • PIN: 5 – 6 = ~8VAC
  • PIN: 7 – 8 = ~16VAC
  • PIN: 9 – 10 = ~16VAC

Input:

  • 110v

Gallery:

Thanks to Andrea Pierdomenico for this great donation made some years ago.
