Pioneer LaserActive CLD-A100 – Repair & Modules full Recap
Pioneer LaserActive CLD-A100 – Repair/Recap & Modules full Recap.
Defects:
- The Game cartridges on the Sega Genesis Module do not work but the games on CD-ROM work correctly.
- The INTF Ass’y Interface has some leakage capacitors and in short circuit.
- The PSU has some leakage capacitors and in short circuit.

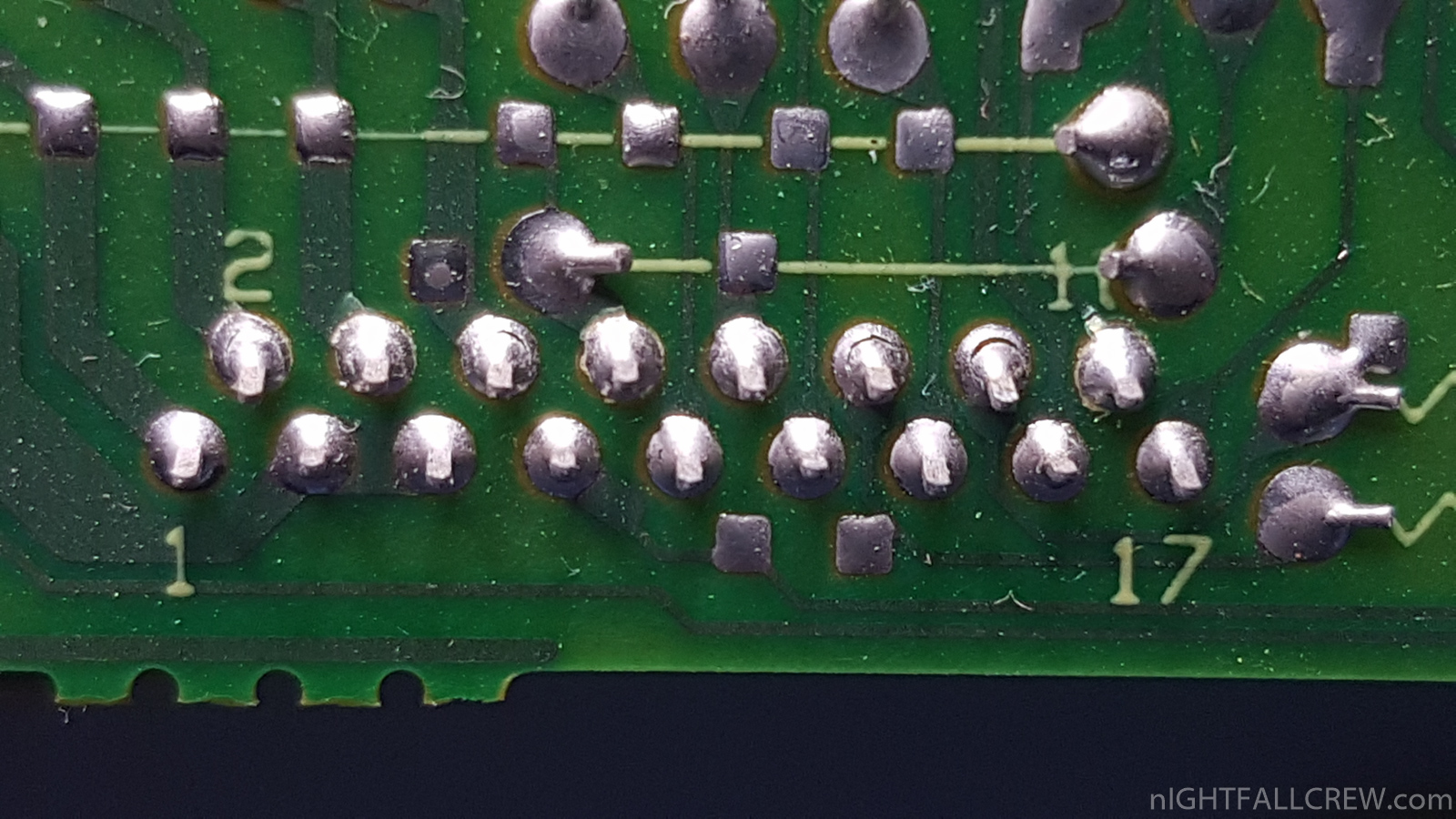

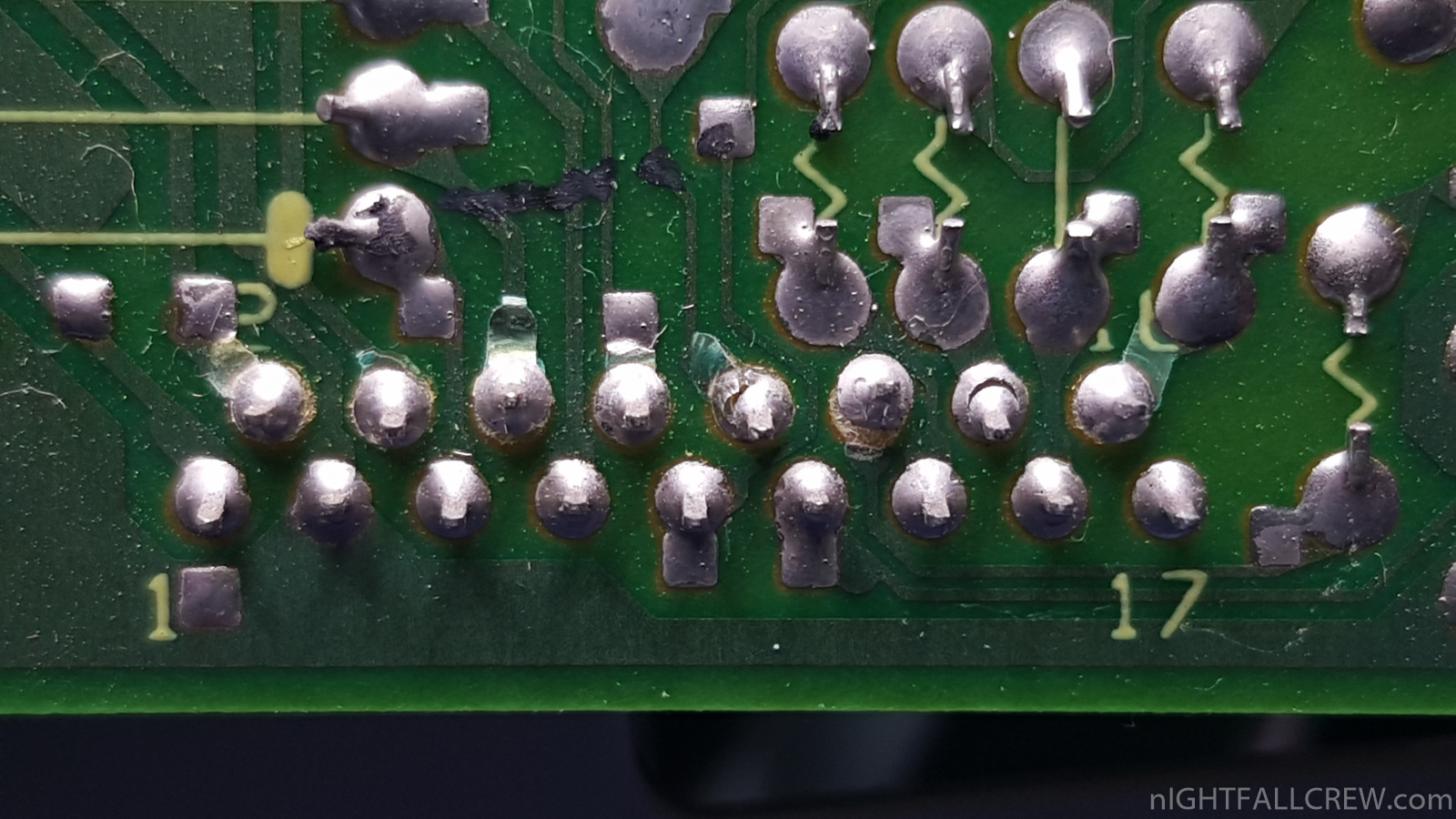

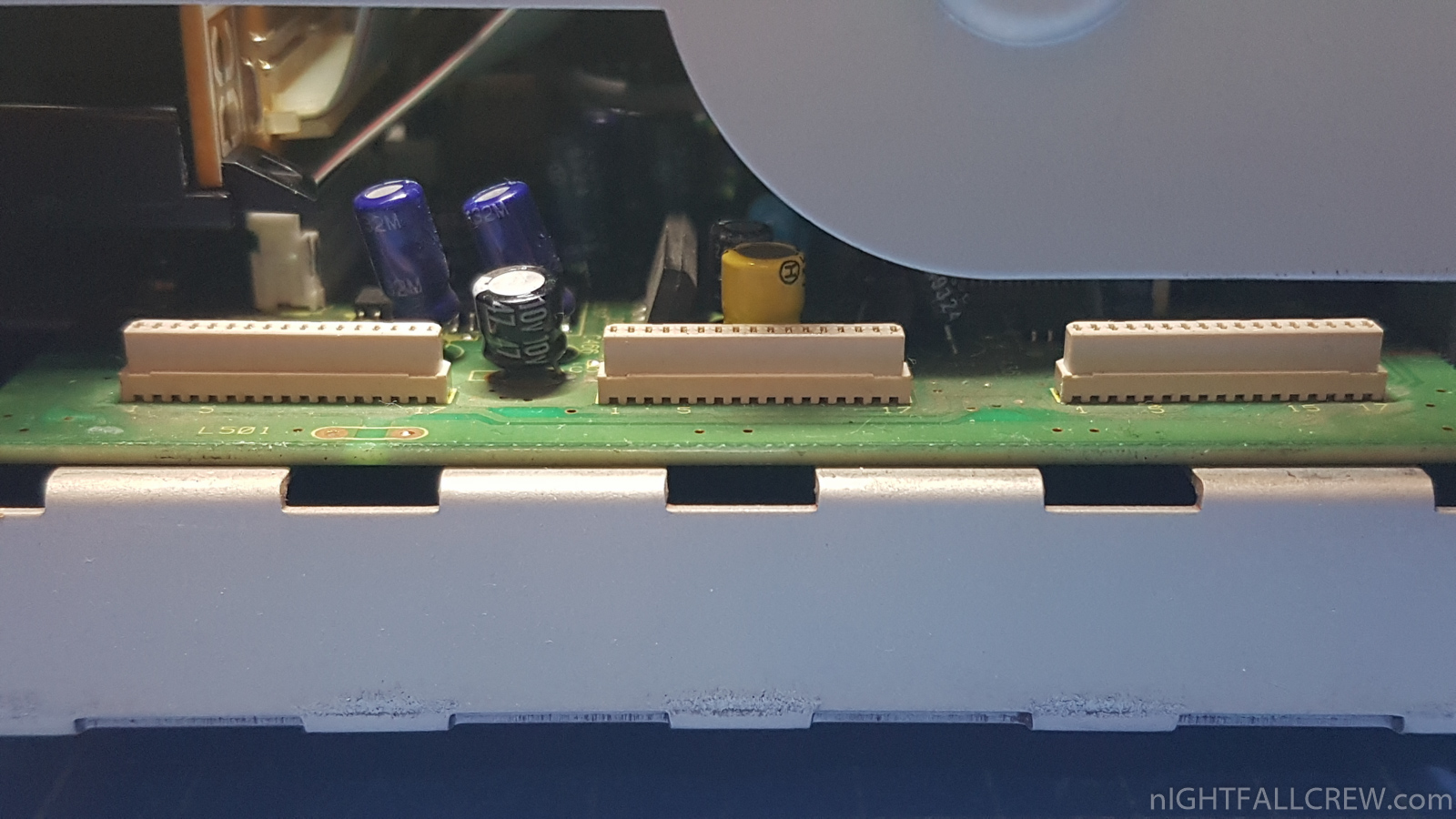

- Solder joint jumped out on the three connectors that connect the two horizzonal/vertical motherboards.
- Some cold solder on the power stage.
Works that have been done:
- Cleaning and Full Recap PSU.
- Cleaning and Full Recap Sega Genesis/Sega CD PAC-S10 Module.
- Cleaning and Full Recap Nec PC Engine PAC-N1/N1 Module.

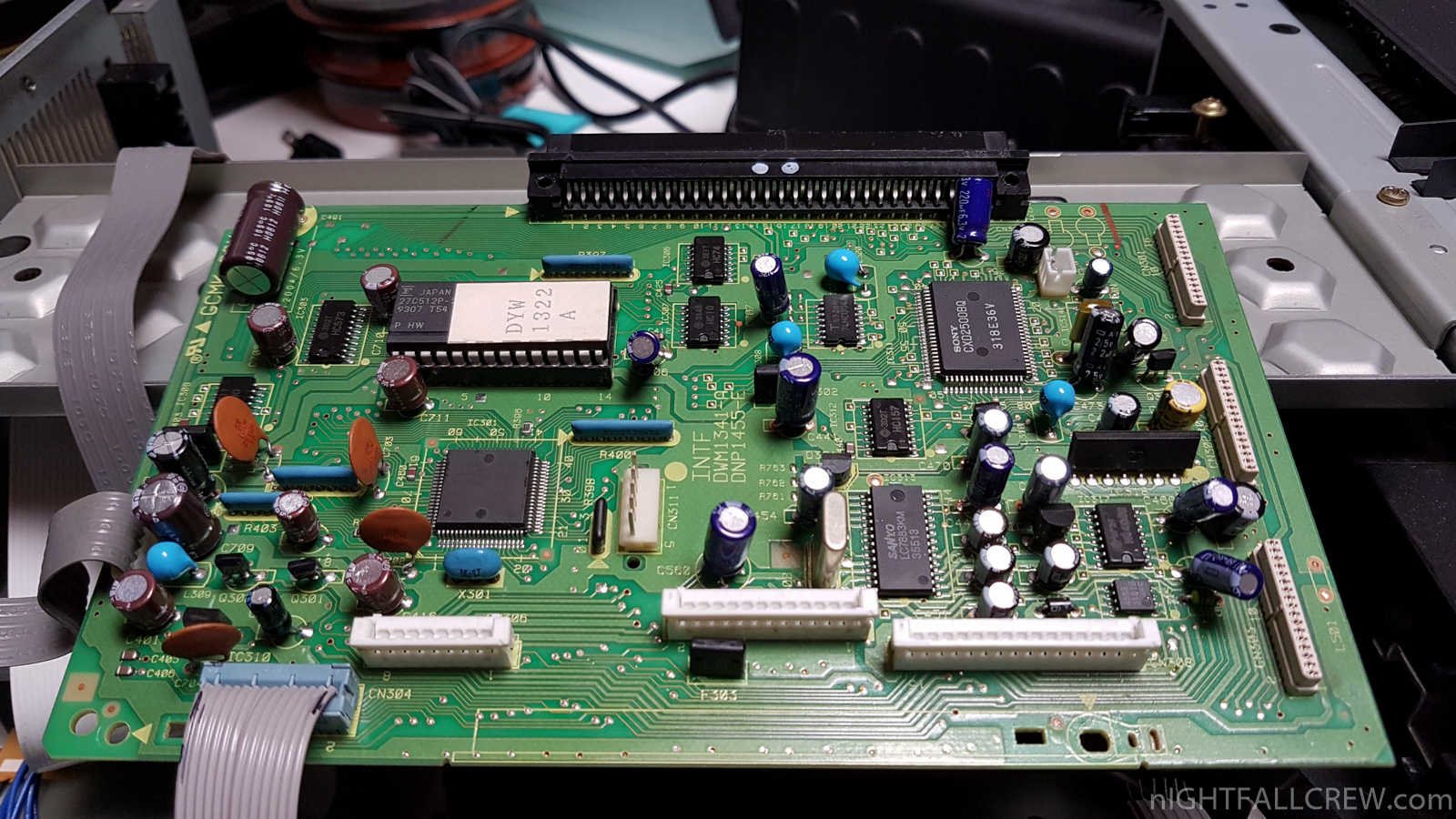

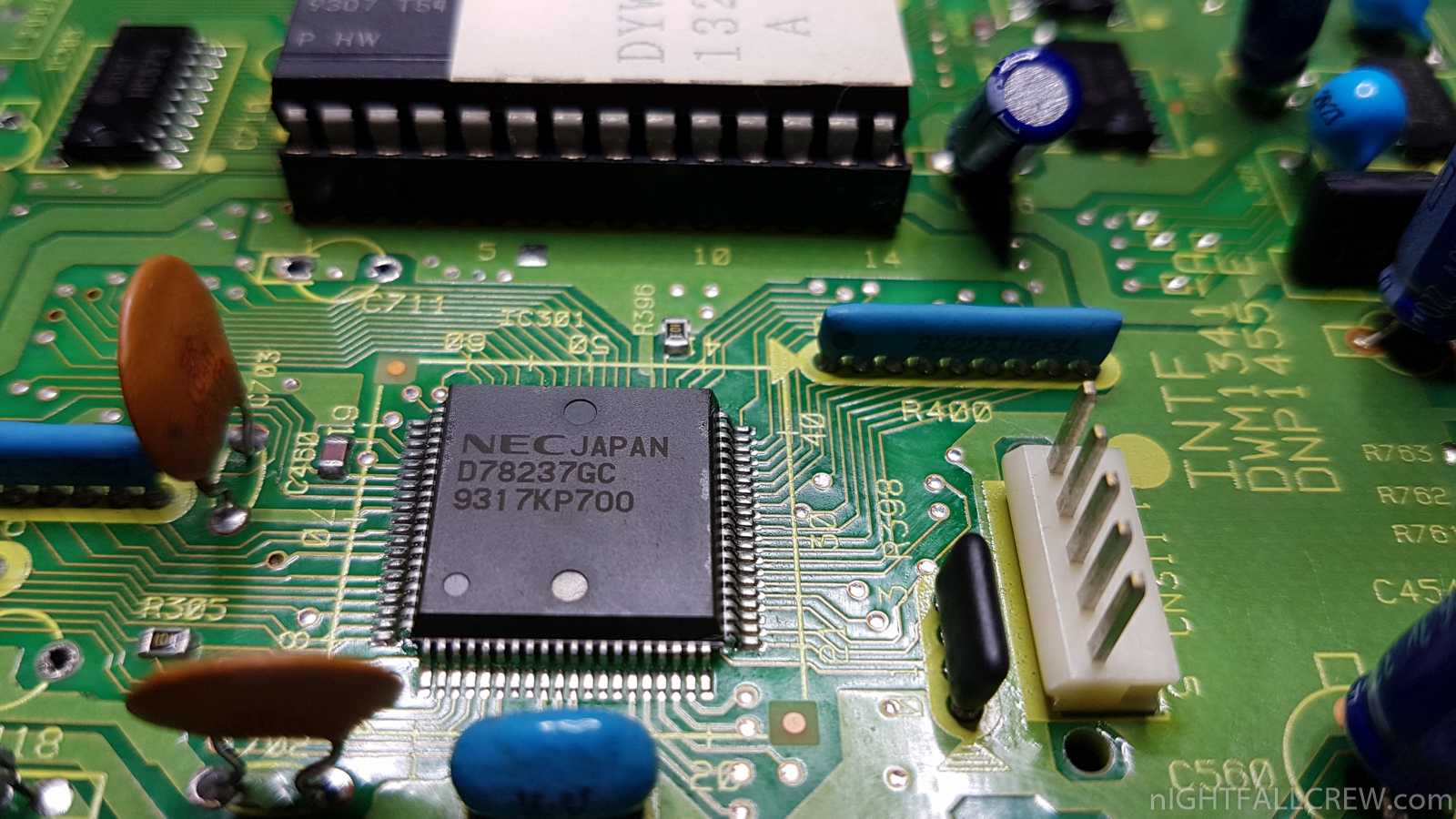

- Cleaning and Recap INTF Ass’y Interface.
- Rebuilding PADs of the two pcb connectors.

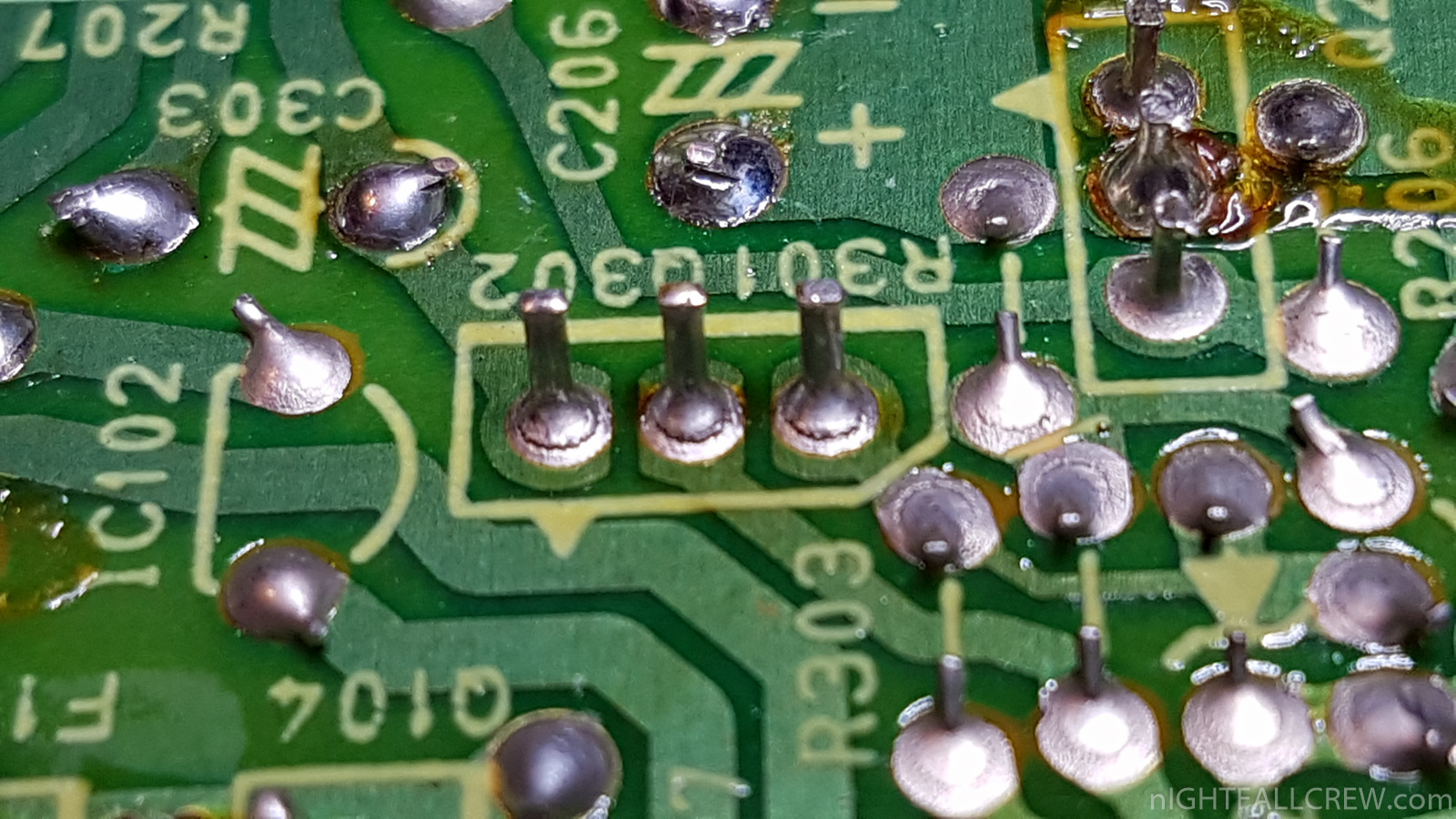

- Rebuilding cold solder joint on the power stage.

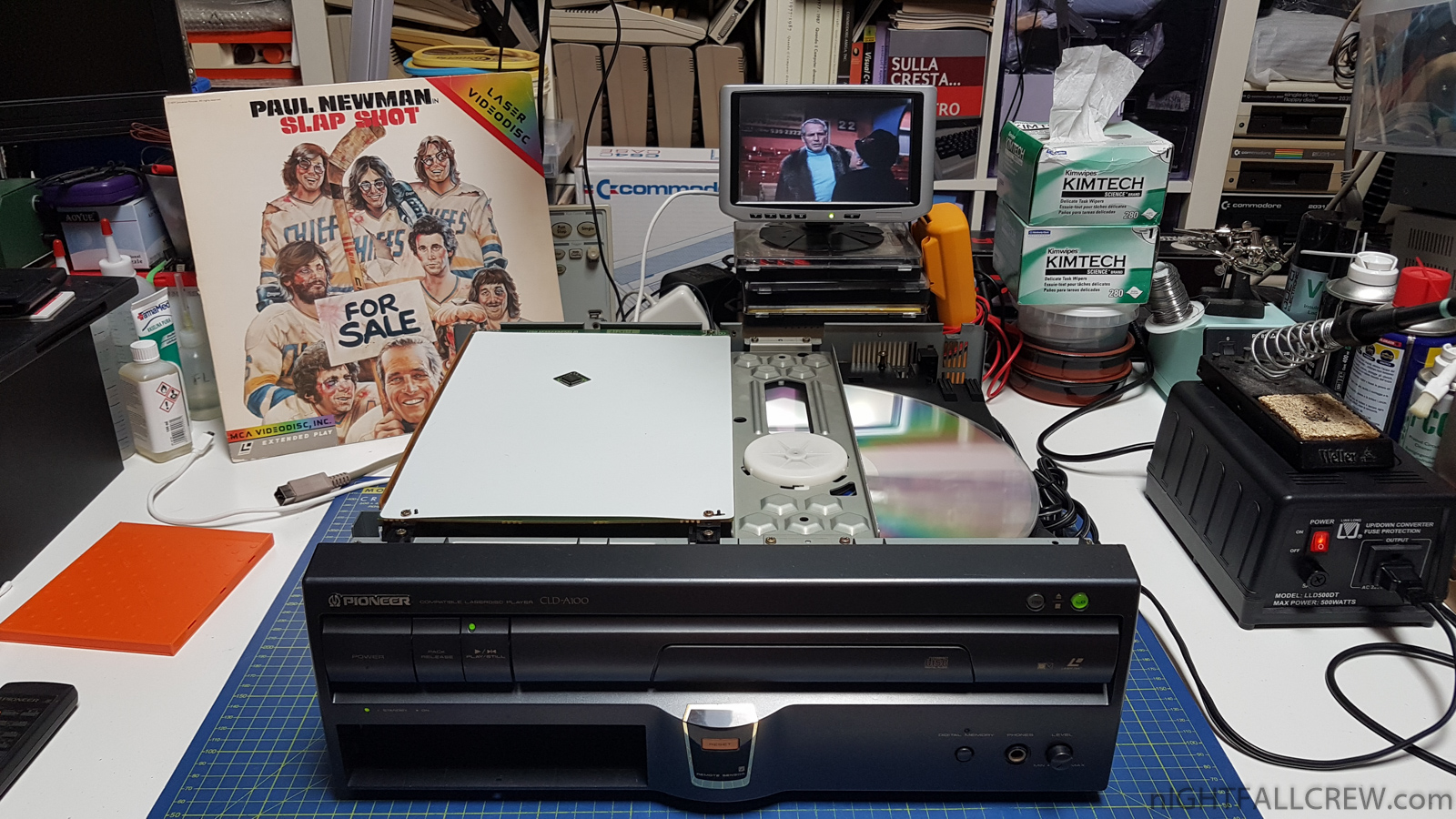

Pioneer LaserActive CLD-A100 Gallery:
